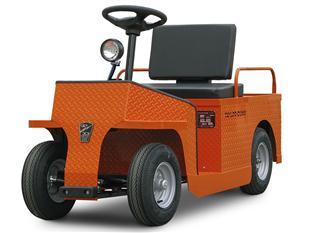

Taylor-Dunn SS-546

  • Battery: Type: Four 217 amp hr., 6 volt (lead acid) System Voltage: 24 Charger: Built-In
  • Brakes: Rear: mechanical drum Front: N/A Parking: Foot
  • Deck: Width: 30
  • Frame Construction: Steel unitized body, heavy duty 16 gauge diamond plate
  • Height: Less Cab: 41
  • Hitch Height: N/A
  • Instrumentation: Battery discharge indicator, forward/reverse selector, key switch, electric horn, DC/DC Converter
  • Length: 89
  • Load Capacity: 600 lbs. (272 Kg.)
  • Outside Turning Radius: 81
  • Passengers: 2
  • Powertrain: Type: Electric Power: 110/220V, 50/60Hz Transmission: Transaxle Assembly, Sealed Helical Gear Reduction Drive: Controller: Series
  • Range: 20 miles (32 km)
  • Seats: Driver: Passenger:
  • Speed: 9 mph (14.4 km/h)
  • Steering: Manual, Re-circulating Ball
  • Suspension: Rear: Articulated front axle Front: Coil springs
  • Tires: Rear: 4.80 x 8 pneumatic Front: 4.80 x 8 Load Range B, Pneumatic
  • Tow Capacity: 2,000 lbs. (909 kg)
  • Weight: 830 lbs. (376 kg.)
  • Wheel Base: 54
  • Width: 30

The versatile design of the SS-546 allows users to convert the vehicle from personnel carrier to burden carrier in a matter of seconds. This vehicle can carry up to two people or 600 lbs. of load on the job site.

With its innovative articulated front axle design, the SS-546 offers a short turning radius that can maneuver dependably around warehouses, industrial complexes, resorts and hotels, shopping malls, hospitals and other commercial complexes.

Its all welded steel unitized body and frame is built to last for years of use, with standard front bumper and an automotive steering wheel. Modularized control system design provides ease of maintenance on all electrical systems. Geared steering, 9 mph speed, and on-board charger provide safety, efficiency and convenience during daily operation.

Equipment Type
Industrial Vehicles and Personnel Carriers / Burden and Personnel Carriers
