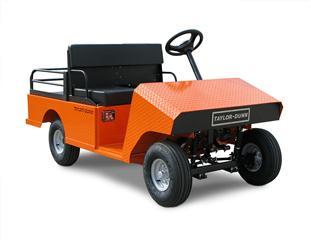

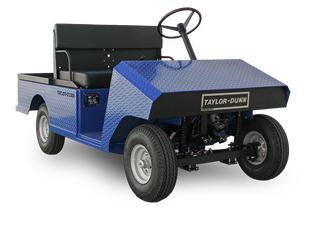

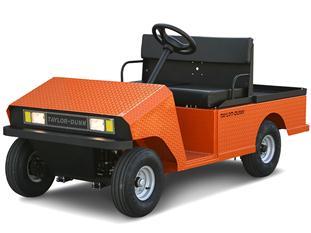

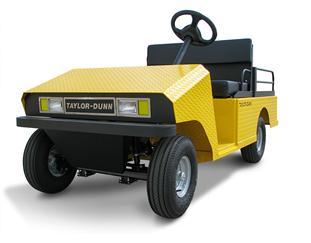

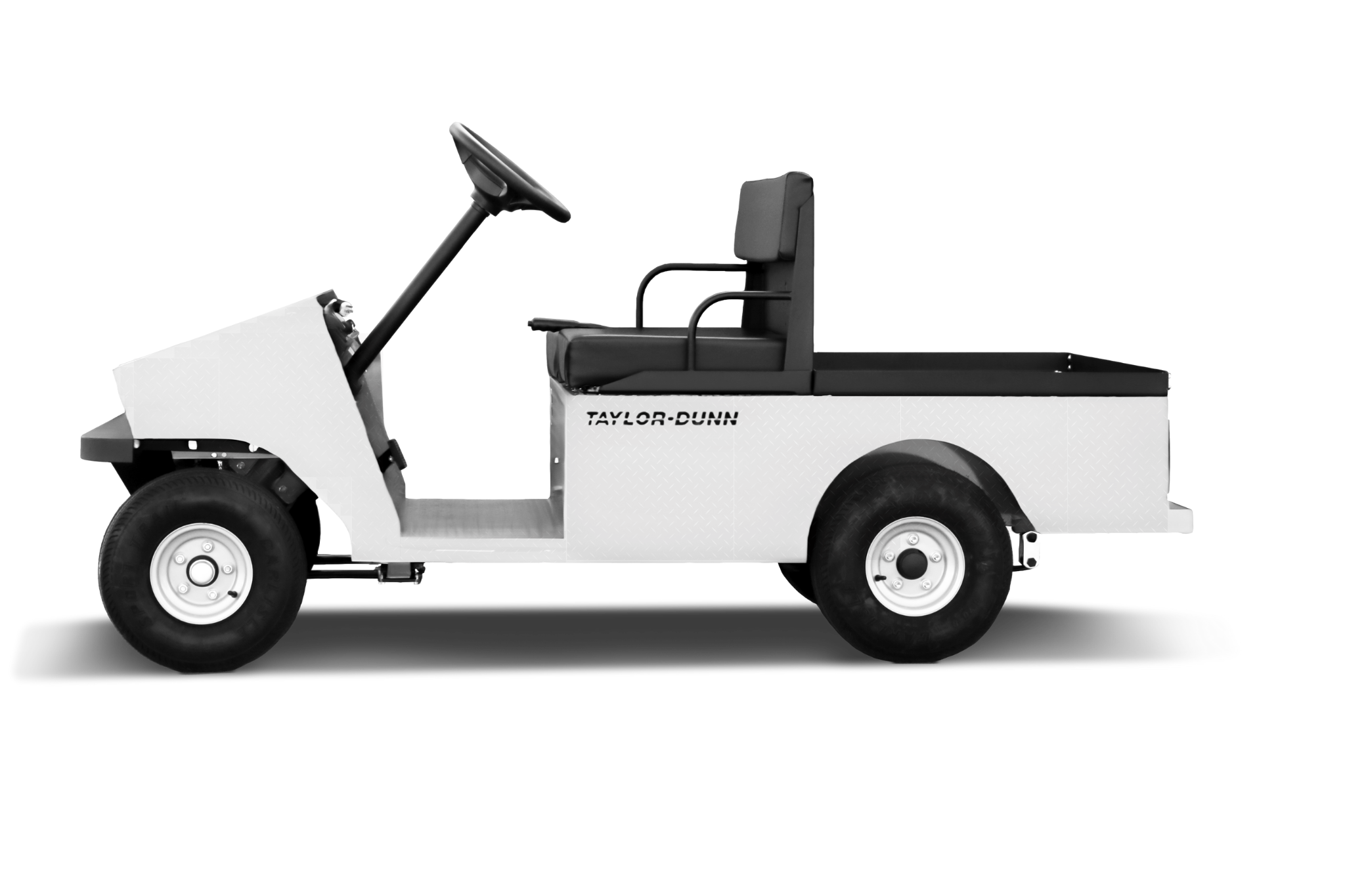

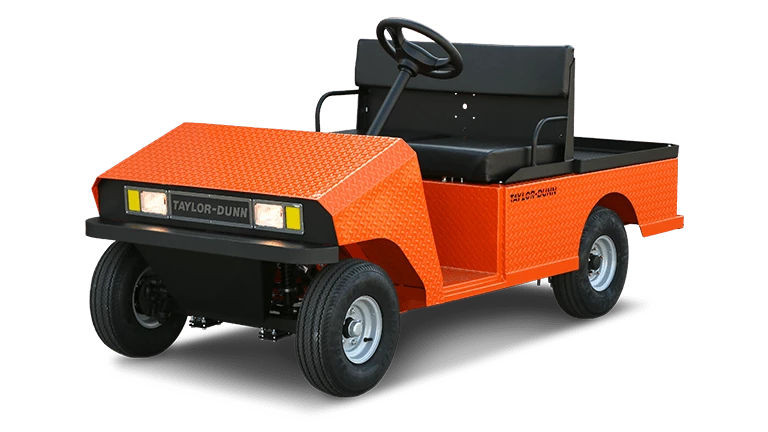

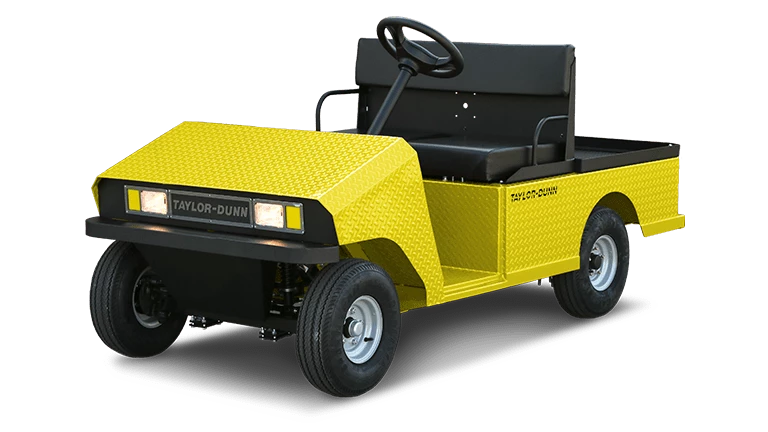

Taylor-Dunn R-380 36V
| Key Specifications | |
|---|---|
| Load Capacity | 1,150 lb. / 522 kg |
| Tow Capacity | 5,000 lb. / 2,268 kg |
| Max Speed | 13 mph / 21 km/h |
| Turning Radius | 112 in. / 284 cm |
| Overall Length | 99.5 in. / 253 cm |
| Overall Width | 44 in. / 112 cm |
| Height (without top) | 45.5 in. / 115 cm |
| Height (with top) | 72 in. / 183 cm |
| Deck Height | 25 in. / 63 cm |
| Wheel Base | 63.5 in. / 161 cm |
| Deck Size | 42 x 32 in. / 108 x 81 cm |
| Motor | 6 hp, DC, series wound |
| System Voltage | 36V DC |
| Transmission | Transaxle assembly, sealed helical gear reduction |
| Batteries | Six 6V, 210 amp-hour, lead-acid |
| Controller | 275-amp, solid state speed controller |
| Wiring | Modular harness design, weather-protected connectors |
| Frame | Fully welded unitized 16-gauge diamond plate steel |
| Steering | Automotive steering 24:1 |
| Drive Axle | Dana direct drive, oil bath |
| Suspension | Front and rear leaf springs with dual front shock absorbers |
| Brakes | Rear mechanical brake drum with hand-operated parking brake |
| Tires | 5.70 x 8, load range C, pneumatic |
| Unit Weight | 1,160 lb. / 526 kg |
| Seat | Split seat with full back cushions, black vinyl; driver seat electric interlock switch |
| Conformance | Type E OSHA 1910.178, ANSI B56.8 |
Details
The R-380 36V is equipped with a 36 volt drive train that provides speeds up to 12 mph. Equipped standard with automatic charger, solid state speed controller, safety seat switch and 6 hp DC motor, the R-380 36V is the best value in its class of vehicles.

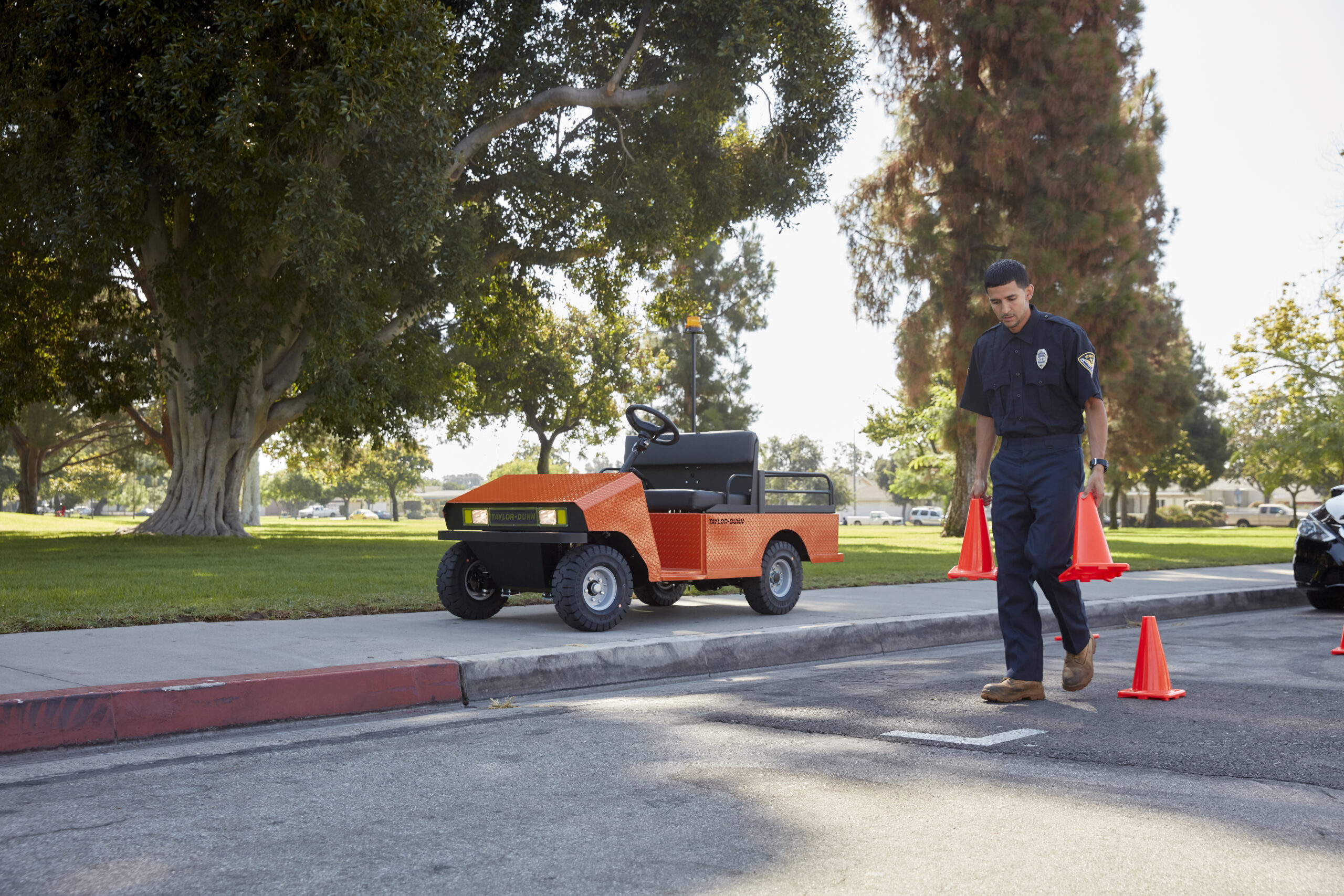

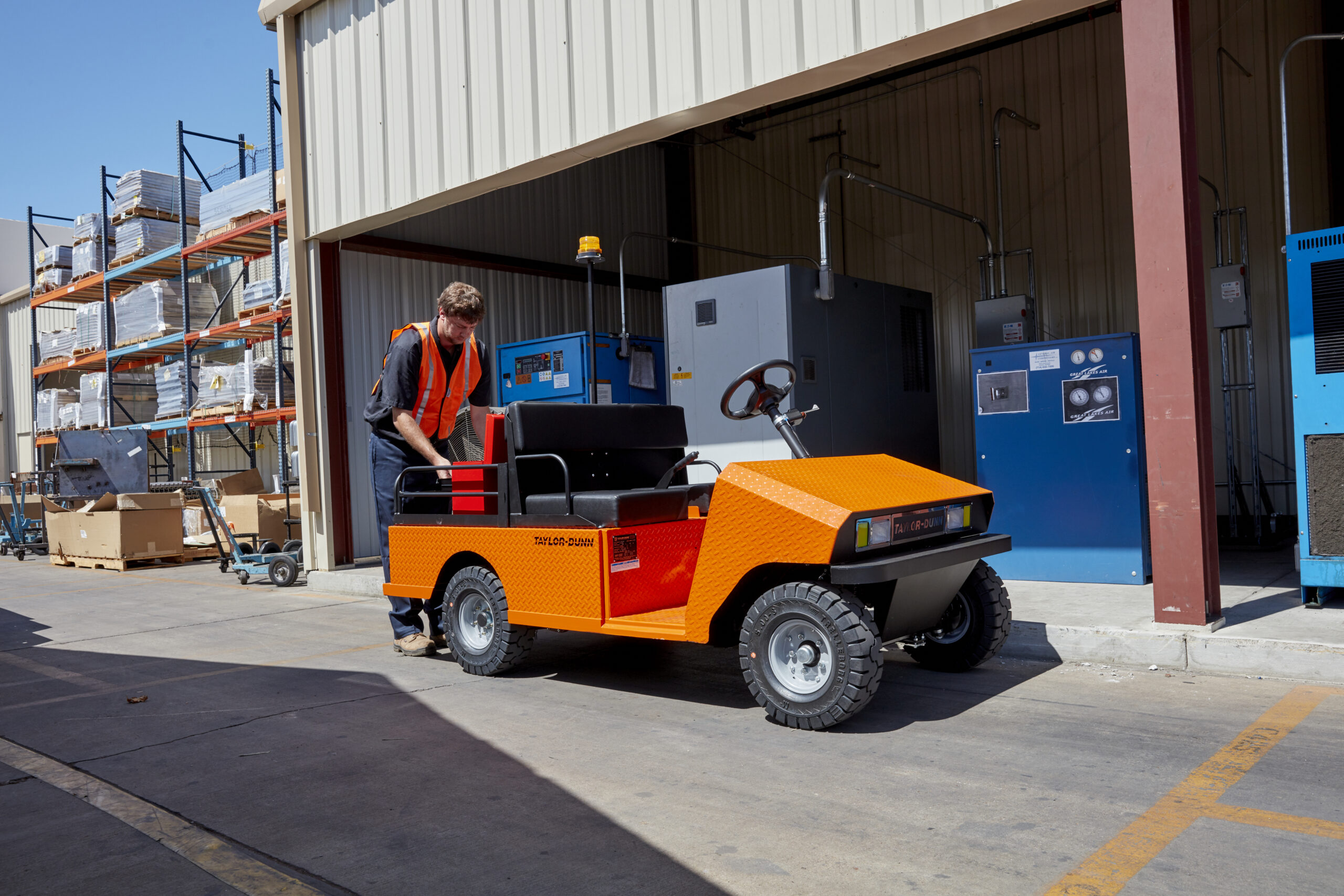

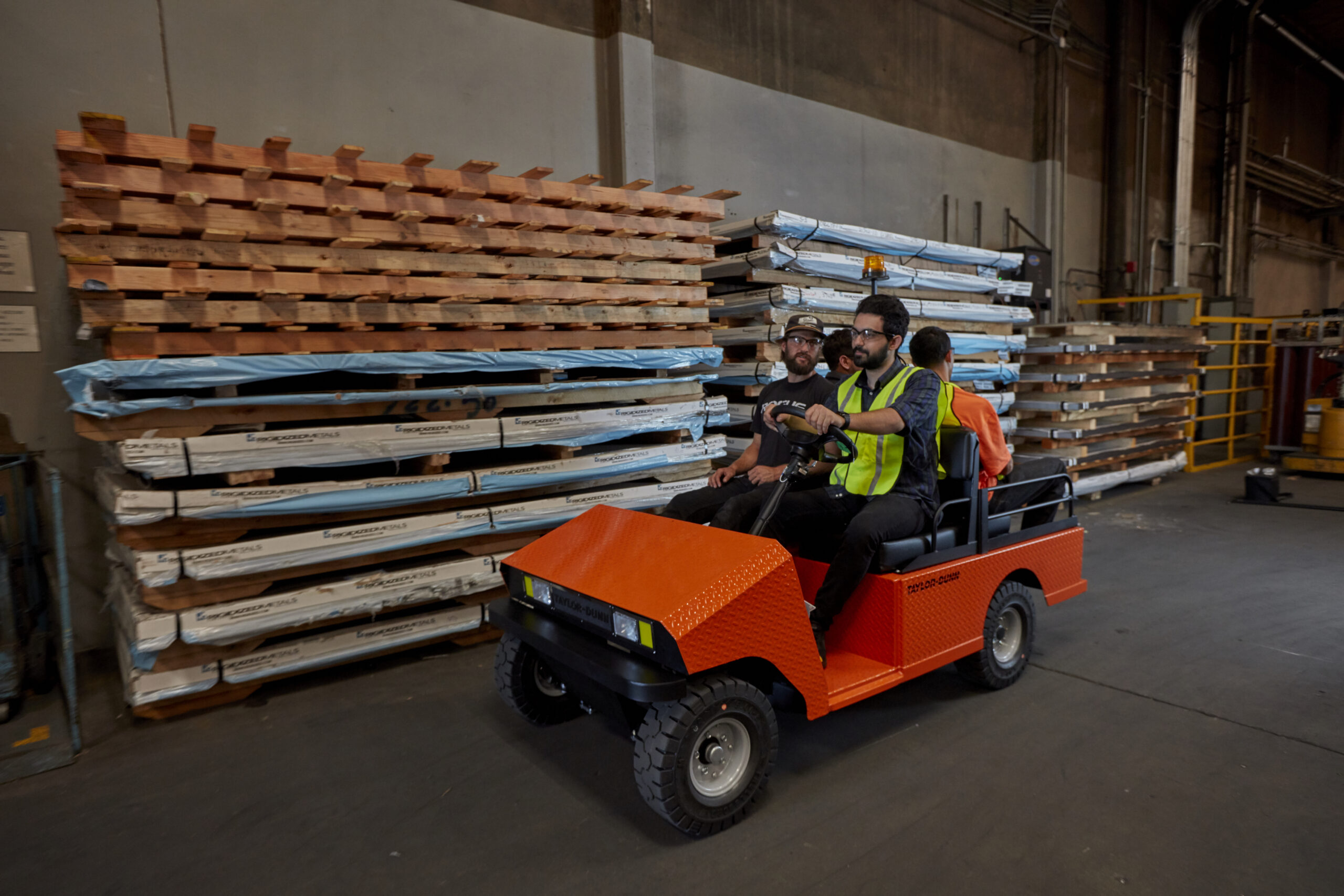

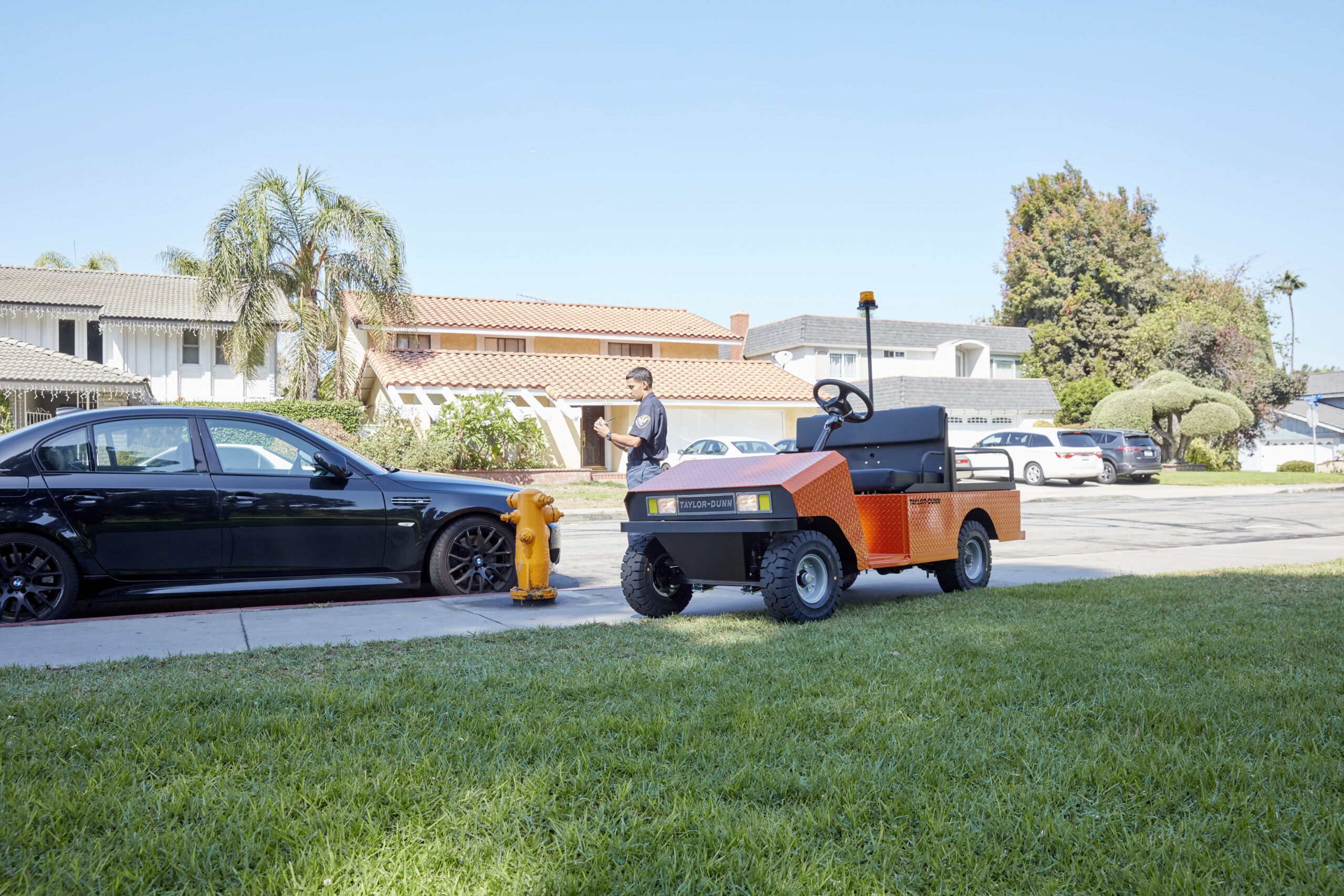

Configured with fold down 4 passenger seating, the R-380 can be used as a personnel or burden carrier during daily operations. Equipped with factory-installed steel cabin and doors, this vehicle ideal for both indoor and outdoor applications.
