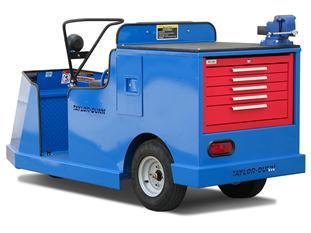

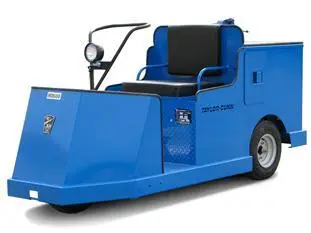

Taylor-Dunn MX-600

  • Battery: Type: Four 210 amp hr., 6 volt (lead acid) System Voltage: 24 Charger: Portable, 25 Amp, SCR Control
  • Brakes: Rear: Two wheel mechanical drum with brake light Front: N/A Parking: Foot Operated
  • Deck: Width: 30
  • Frame Construction: All steel unitized body, heavy duty 14 gauge smooth plate
  • Height: Less Cab: 40
  • Hitch Height: N/A
  • Instrumentation: Battery status indicator, forward/reverse selector, key switch, reverse buzzer and electric horn
  • Length: 86
  • Load Capacity: 600 lbs. (272 kg)
  • Outside Turning Radius: 81
  • Passengers: 1
  • Powertrain: Type: Electric Power: 110/220V, 50/60Hz Transmission: Transaxle Assembly, Sealed Helical Gear Reduction Drive: Direct Drive Controller: Solid State Speed Control
  • Range: 20 miles (32 km)
  • Seats: Driver: Seat Cushion with Full Backrest Passenger: N/A
  • Speed: 9 mph (14.4 km/h)
  • Steering: Manual, Tiller, Front Fork
  • Suspension: Rear: Front:
  • Tires: Rear: 4.80 x 8 pneumatic Front: 4.80 x 8 Load Range B, Pneumatic
  • Tow Capacity: 2,000 lbs. (909 kg)
  • Weight: 890 lbs. (404 kg.)
  • Wheel Base: 55.5
  • Width: 32
Details

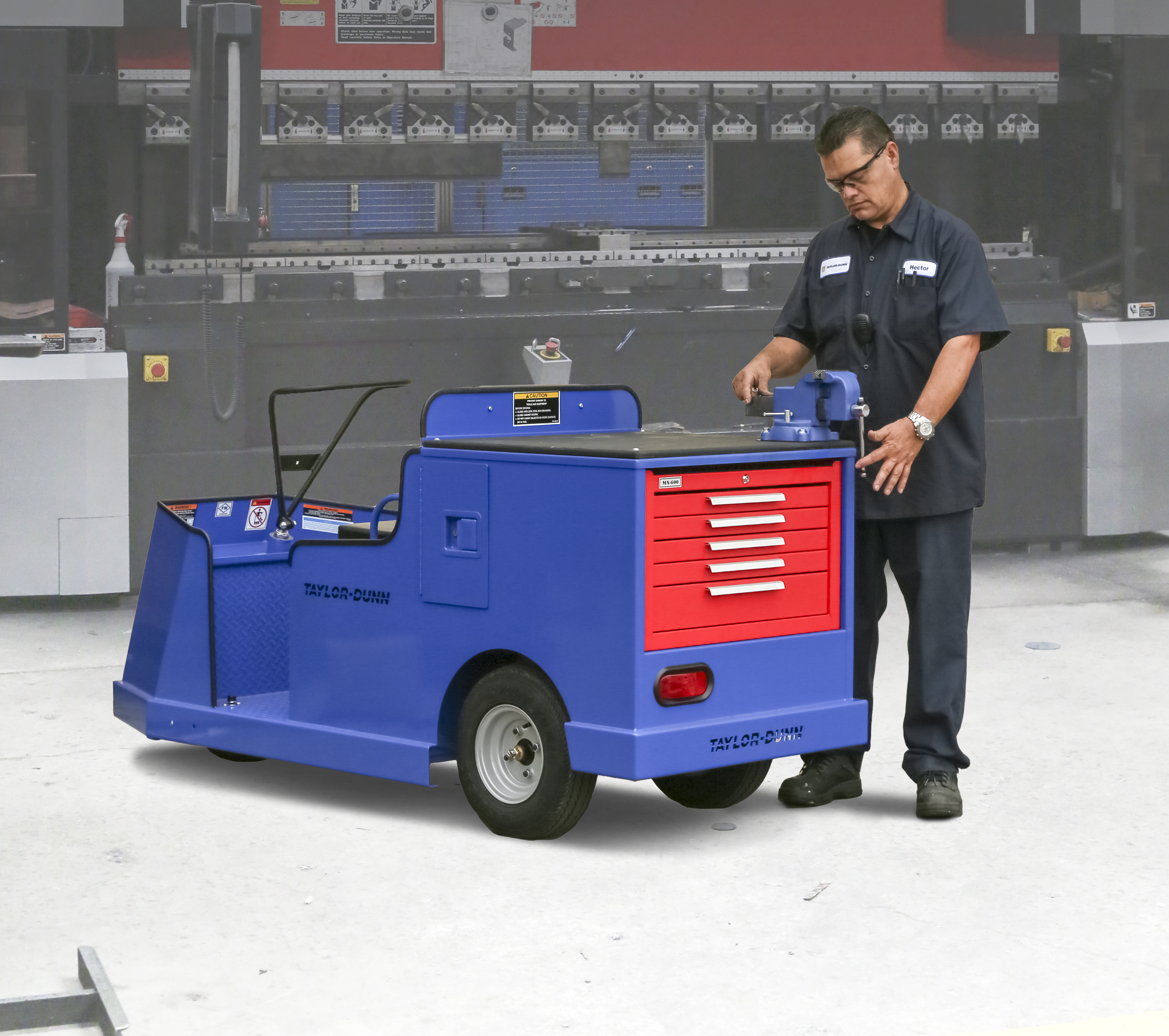

The MX-600 improves repair and maintenance productivity by reducing the time to each equipment to be serviced and providing a mobile work shop at the service site.

Equipped with 24-volt battery system, the MX-600 can travel at speeds of 9 mph. An all welded steel unitized body and frame is built to last for years of use. The modularized control system design provides ease of maintenance on all electrical systems. Safety loop tiller steering protects the driver, and a solid state controller and hall effect accelerator module provide safe acceleration during daily operation.

Equipment Type
Industrial Vehicles and Personnel Carriers / Burden and Personnel Carriers
