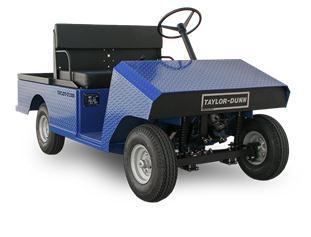

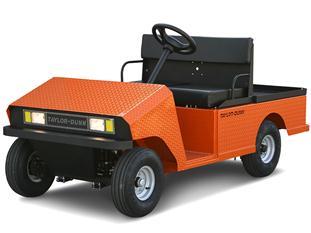

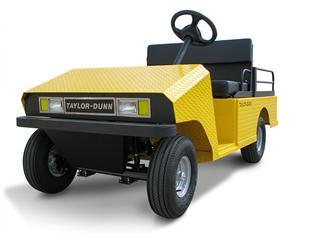

Taylor-Dunn R-380 48V
| Key Specifications | |
|---|---|
| Battery | Eight, 6V, 217 amp hour (lead acid); System Voltage: 48; Charger: Built-In |
| Brakes | Rear/Front: Hydraulic disc; Parking: Hand |
| Deck Width | 41.5 in |
| Frame Construction | Steel unitized body, heavy duty 16 gauge diamond plate |
| Height (Less Cab) | 45.5 in |
| Hitch Height | 13 in |
| Instrumentation | Smart View Display (Battery status indicator, hour meter, system status monitor), reverse buzzer, forward/reverse selector, key switch, electric horn, DC/DC Converter |
| Length | 99.5 in |
| Load Capacity | 1,150 lbs. (522 kg) |
| Outside Turning Radius | 112 in |
| Passengers | 2 |
| Powertrain | Electric; Transaxle Assembly, Sealed Helical Gear Primary Reduction to Hypoid Ring and Pinion Gears; SEM Controller |
| Range | 35 miles (56 km) |
| Speed | 15 mph (24.1 km/h) |
| Steering | Manual, Re-circulating Ball |
| Suspension | Front and rear leaf springs |
| Tires | 5.70 x 8 pneumatic, Load Range C |
| Tow Capacity | 5,000 lbs. (2,273 kg) |
| Weight | 1,446 lbs (656 kg) |
| Wheel Base | 63.5 in |
| Width | 44 in |
| System Voltage | 48V |
Details
The R-380 48V is equipped with a 48 volt drive train that provides speeds up to 15 mph. Equipped standard with automatic charger, solid state speed controller, safety seat switch and 8.8 hp DC motor, the R-380 48V is the best value in its class of vehicles.
Configured with fold down 4 passenger seating, the R-380 can be used as a personnel or burden carrier during daily operations. Equipped with factory-installed steel cabin and doors, this vehicle ideal for both indoor and outdoor applications.
- Equipment Type
- Industrial Vehicles and Personnel Carriers / Utility Vehicles
