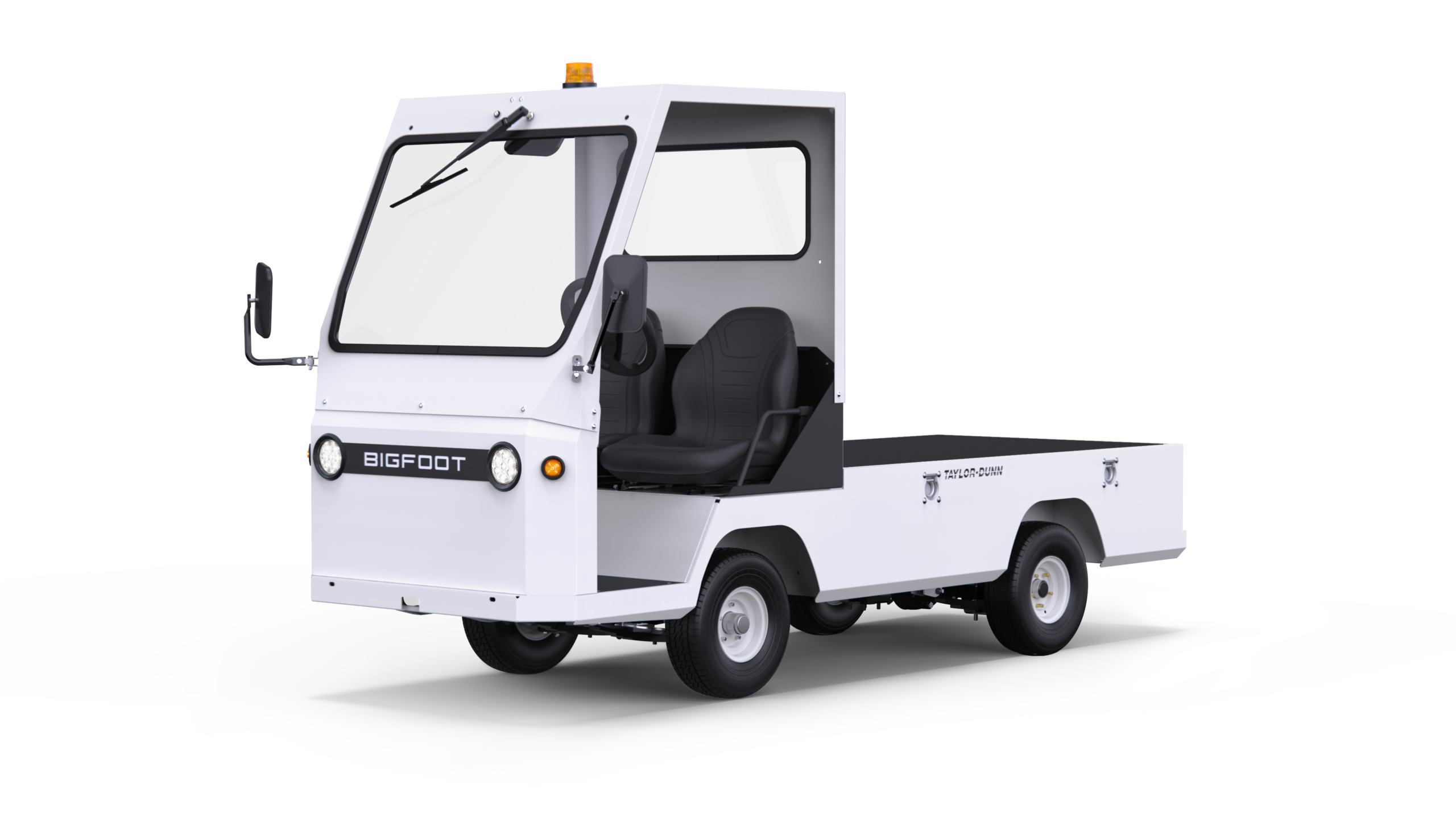

Taylor-Dunn Bigfoot
| Key Specifications | |
|---|---|
| Voltage | 48V, Li-ion available |
| Load Capacity | 3,000 lb (1,360 kg) |
| Towing Capacity | 7,500 lb (3,400 kg) |
| Range | 40-78 miles* |
| Charge Time | 3-13 hours* |
| Turning Radius | 137 in |
| Dimensions (LxWxH) | 130.5 x 44 x 51.5 in (332 x 112 x 131 cm) |
| Bed Size | 44 x 77 in (112 x 196 cm) |
| Person Capacity | 2-4 |
| Seats | Adjustable bucket, driver seat electrical interlock |
| Unit Weight | 1,565 lb (710 kg) |
| Motor | 12.5 hp, 9.5 kW AC |
| Drive Axle | Helical gear, oil bath transaxle, GT automotive differential |
| Controller | Solid state self diagnostic AC speed controller |
| Batteries | 210 Ah lead acid, or upgrade to 8 kWh or 16 kWh lithium ion |
| Standard Tires | 5.70 x 8, load range C, pneumatic |
| Brakes | Rear hydraulic drum, hand-operated parking brake |
| Frame | Fully welded, unitized, 12 gauge, smooth skin steel |
| Bumpers | Heavy-duty steel integrated, front and rear |
| Suspension | Multi-leaf springs, front and rear |
| Steering | Rack and pinion, tilted |
| Lights | Dual LED headlights, taillights, brake lights |
| Charger | Onboard 1 kW charger |
Details

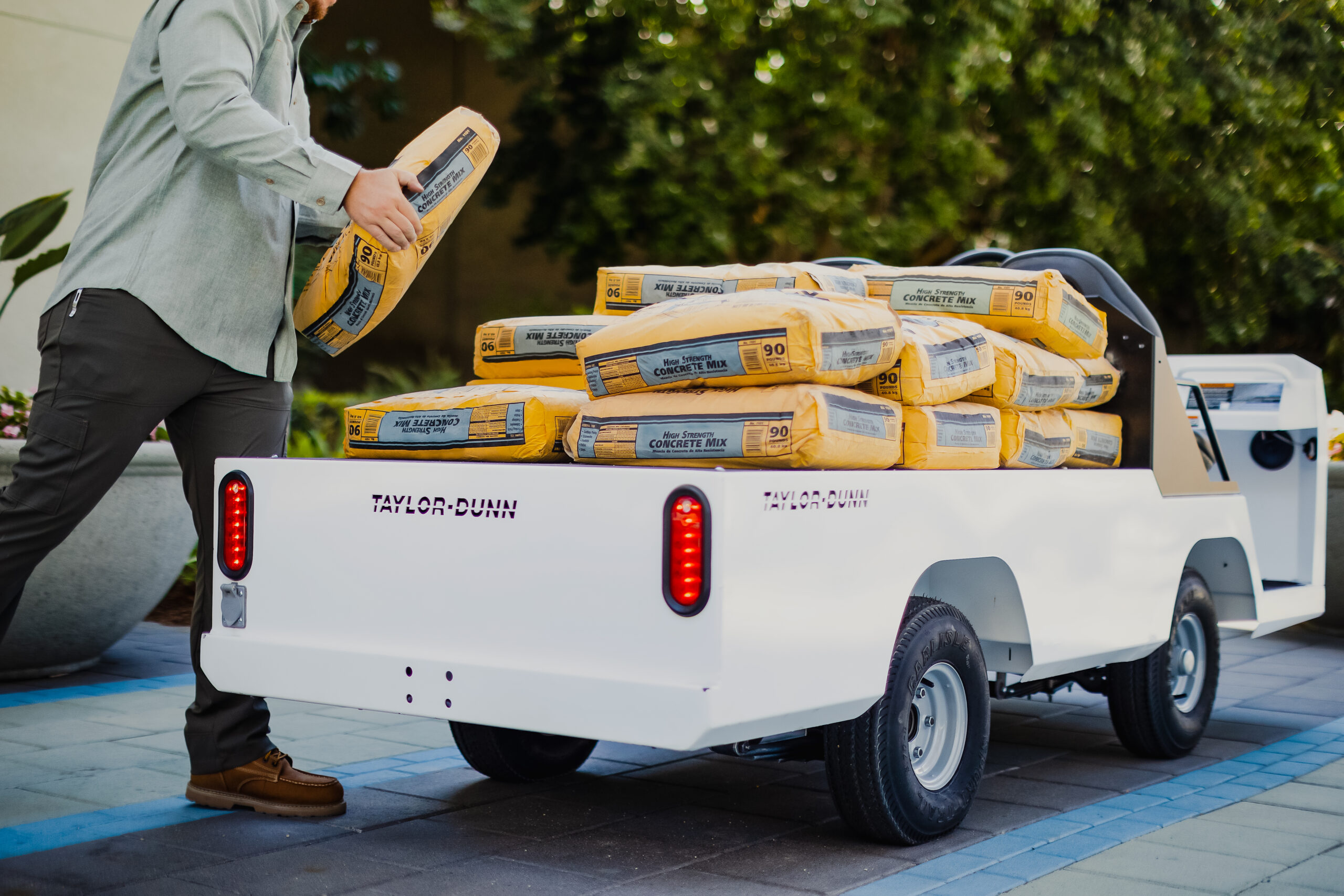

Taylor-Dunn’s flagship burden carrier is designed to handle a load capacity of 3,000 pounds and tow 7,500 pounds with speeds up to 16 mph and a range of up to 78 miles. Available in two-person and four-person configuration.
- Equipment Type
- Burden and Personnel Carriers / Industrial Vehicles and Personnel Carriers
