Taylor-Dunn Bigfoot XL Industrial Lift Gate
| Key Specifications | |
|---|---|
| Payload | 2,500 lb |
| Liftgate Capacity | 500 lb |
| Top Speed | 18 mph |

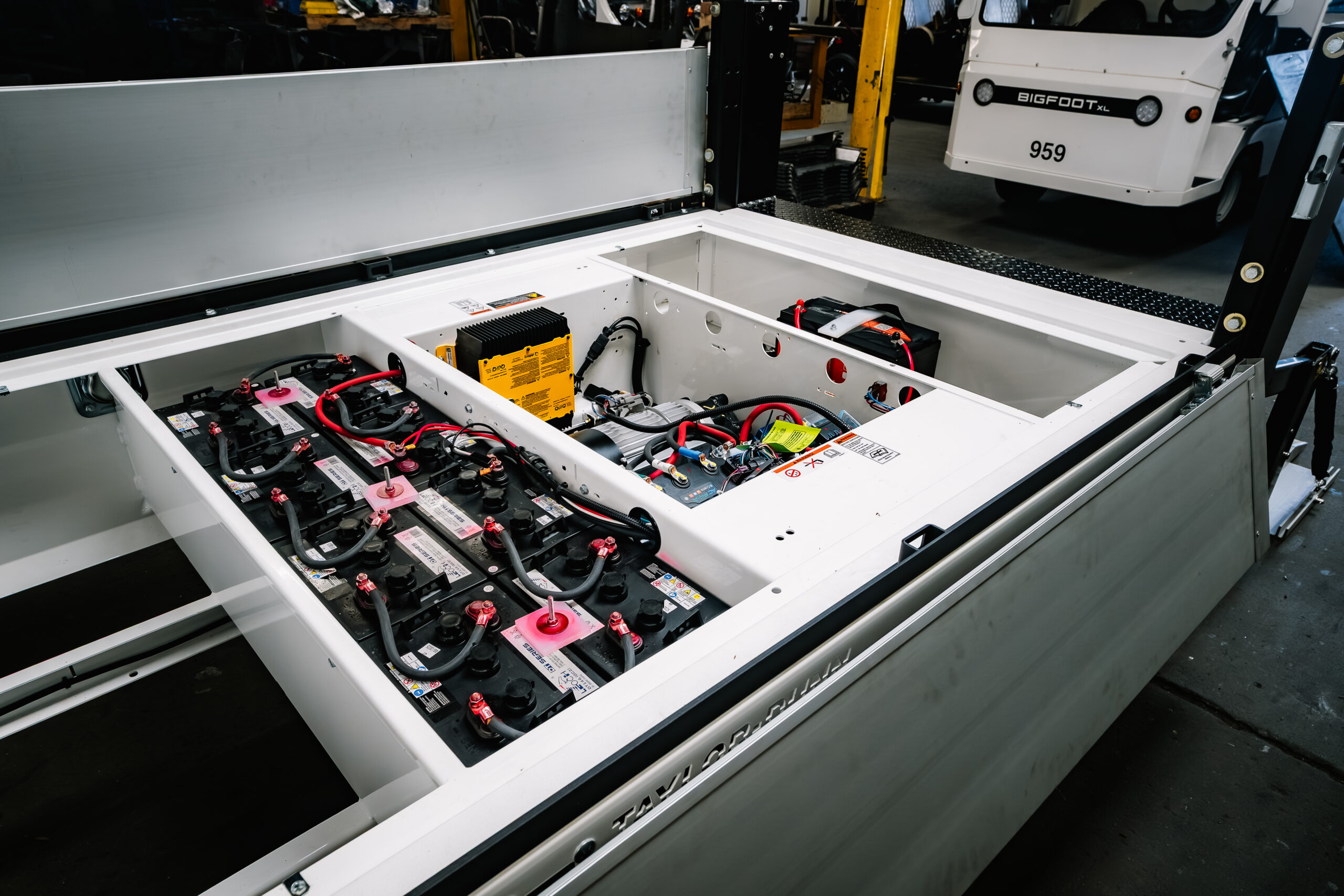

| Battery Options | Standard FLA or optional lithium ion |
| Range | Up to 78 mi with optional 16 kWh lithium ion |
| Drive Type | All-electric, zero tailpipe emissions |
| Lift Type | Dual hydraulic cylinder parallel-arm (Tommy Gate G2) |
| Vertical Travel | Up to 42 in. |
| Hydraulic System | Fully enclosed |
| Control | Recessed toggle control with 90-second auto shutoff |
| Circuit Protection | 150-amp circuit breaker |
| Platform Options | Steel, TommyTraction, aluminum, bargrate |
Details

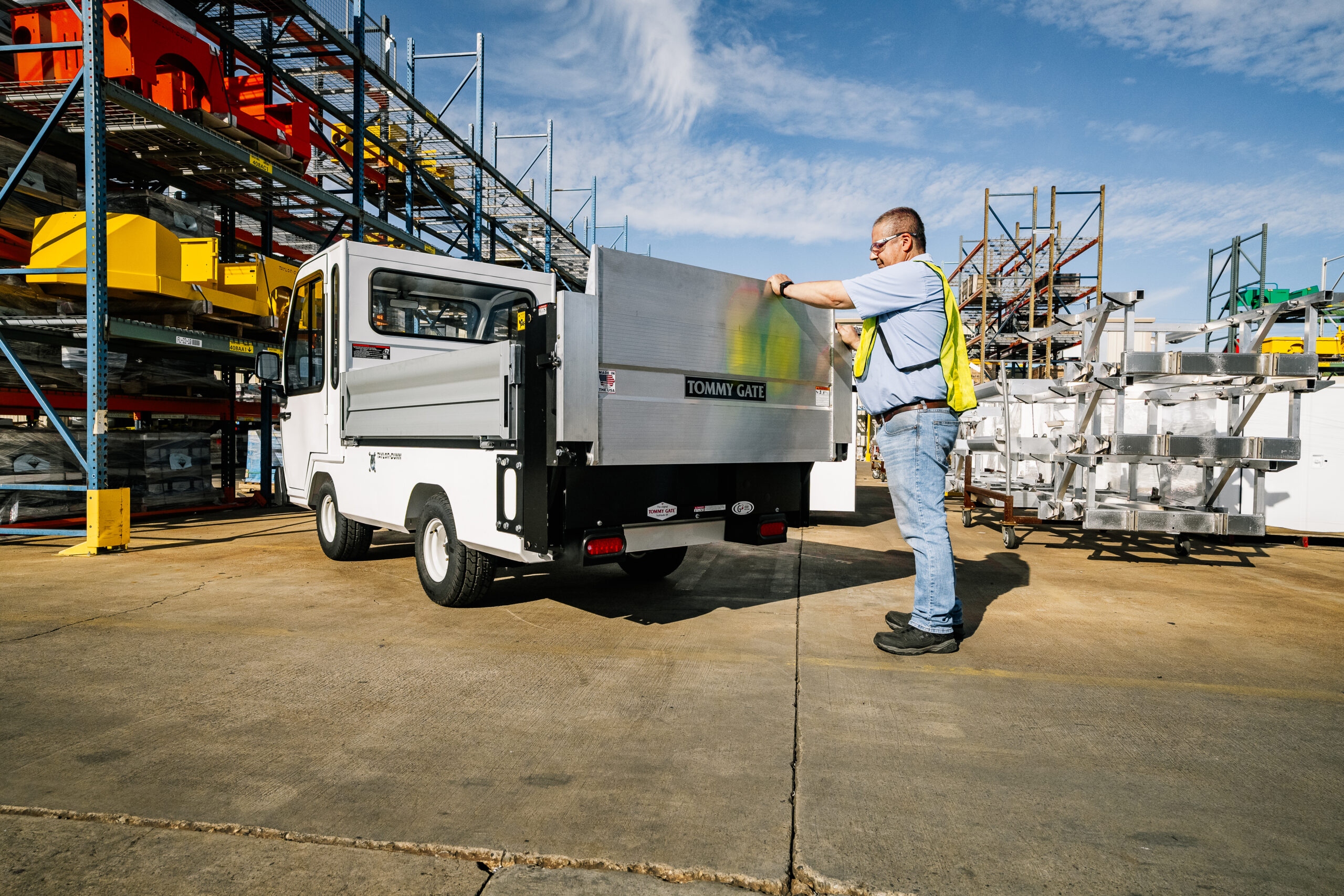

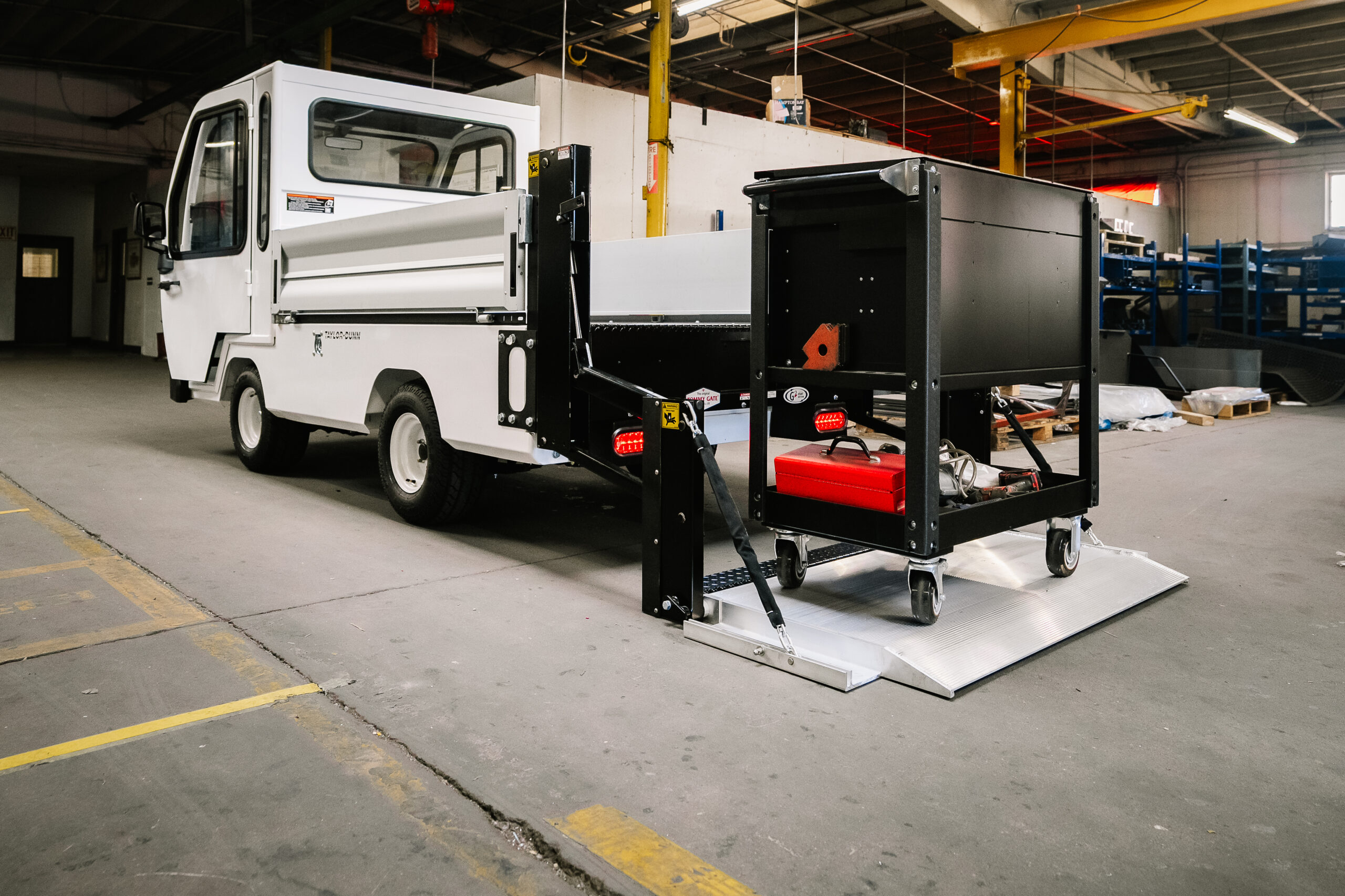

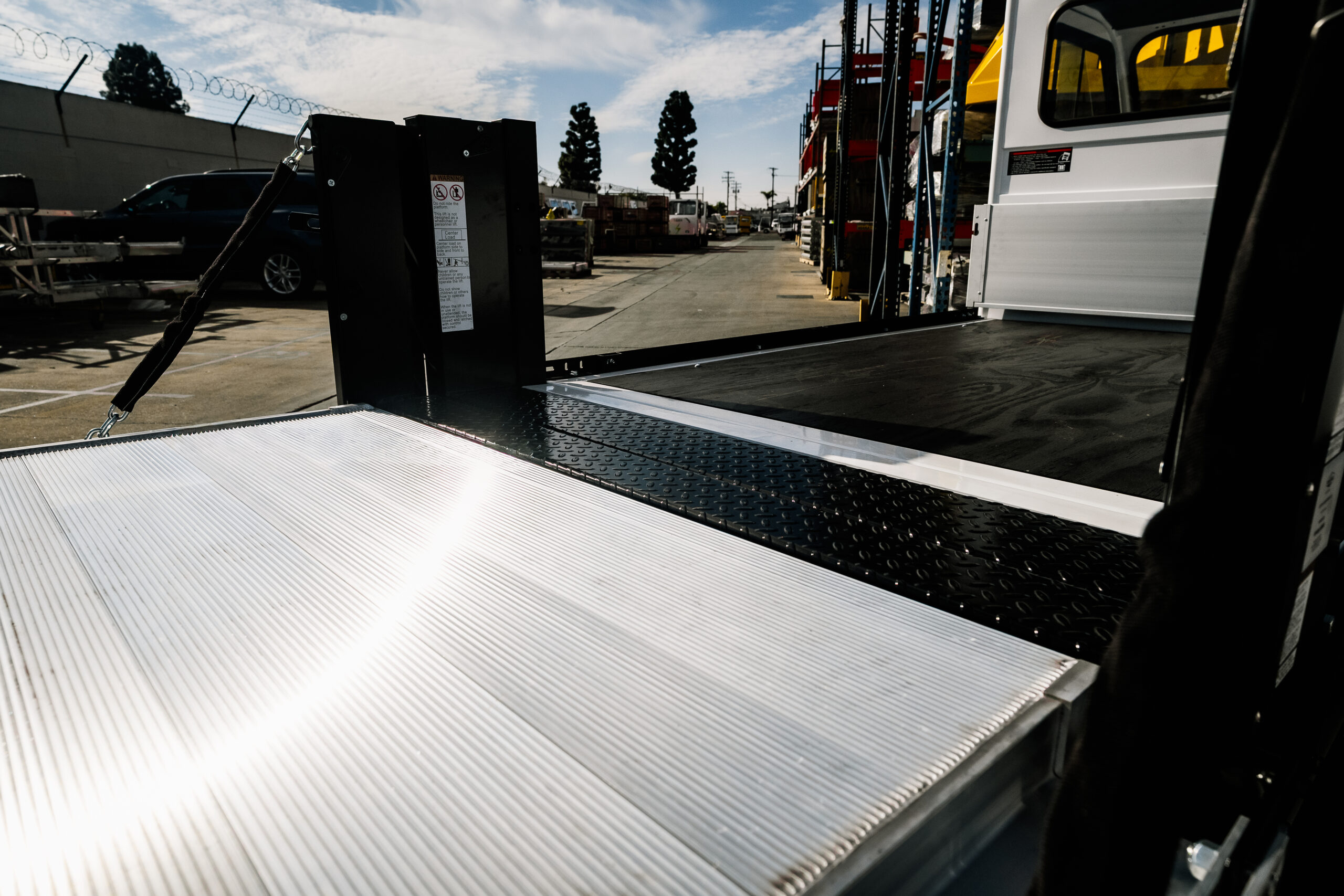

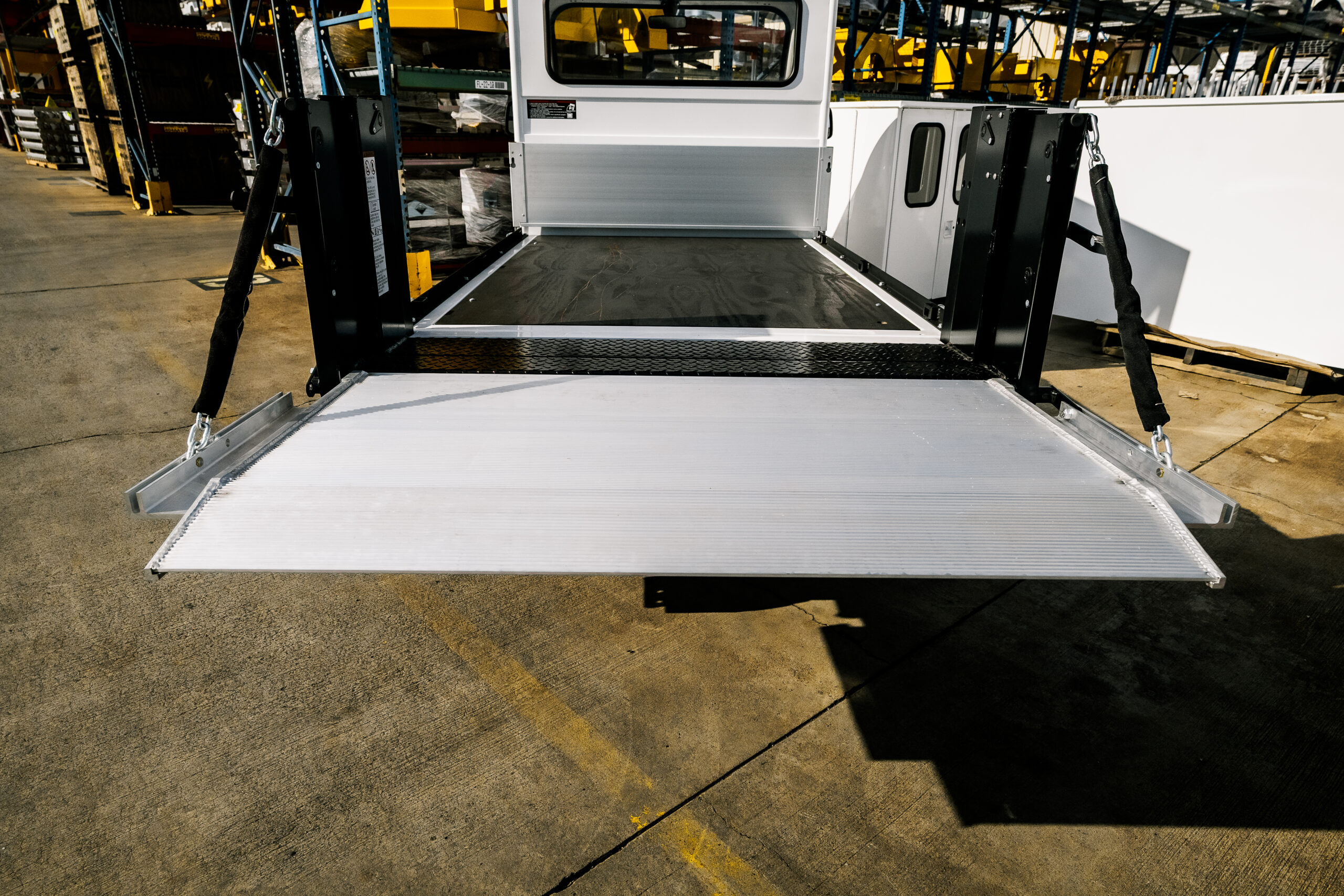

The all-electric cargo handling Bigfoot XL Industrial Lift Gate delivers hauling capabilities on par with a typical full-sized commercial truck but with much greater maneuverability. The factory-integrated Tommy Gate G2 liftgate has a 500 pound capacity while the vehicles provides a 2,500 pound payload.
- Equipment Type
- Burden and Personnel Carriers / Industrial Vehicles and Personnel Carriers
