Genie GTH™-636

  • Ergonomic operator’s station features tiltable steering wheel, single-lever joystick control, and light up gauge display
  • Right-side mount engine provides excellent visibility
  • Multi-function proportional joystick control for fast, precise load positioning
  • 3-speed forward and reverse powershift transmission
  • Three selectable steering modes: front-wheel, coordinated and crab steer
  • ROPS/FOPS canopy (ISO compliant)
  • Power-assisted steering
  • High-efficiency/variable displacement hydraulic pump
  • Proportional frame-leveling chassis — pick up or place loads on up to 10? side slopes
  • Turbocharged diesel engine
  • Drive Speed: 18 mph (29.0 km/h)
  • Forward Reach: 21 ft 11 in (6.68 m)
  • Lift Capacity: 6,000 lbs (2,722 kg)
  • Lifting Height: 36 ft (10.97 m)
  • Maximum Forward Reach: 21 ft 11 in (6.68 m)
  • Maximum Lift Capacity: 6,000 lbs (2,722 kg)
  • Maximum Lift Height: 36 ft (10.97 m)
  • Power Source: Deutz TD 2.9 L4 turbo charged diesel, Tier 4f 74 hp (55.2 kW)*
  • Weight**: 17,600 lbs (7,983 kg)

Genie® high reach telehandlers

Genie high reach telehandlers offer excellent lift capacity, easily covering all your worksite needs. Available in two models, these telehandlers offer excellent productivity on jobsites ranging from new construction of multi-story buildings to masonry. Powerful features such as four-wheel drive and a turbocharged diesel engine provide reliable performance in the most rugged conditions.

  • Heavy-duty workhorse for lifting applications in construction, landscaping and agriculture
  • Ideal for loading/unloading and moving/placing materials, as well as jobsite cleanup
  • Low-end torque, four-wheel drive and four-wheel steering for hills and rough terrain

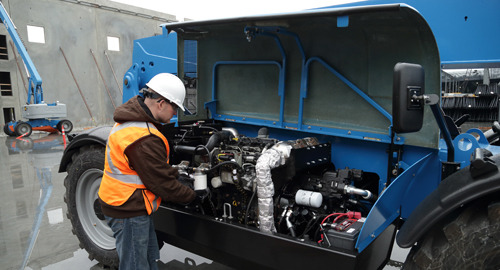

  • Simple no-tool access to daily inspection points
Equipment Type
Aerial Equipment / Telehandlers
