Genie GTH™-1256

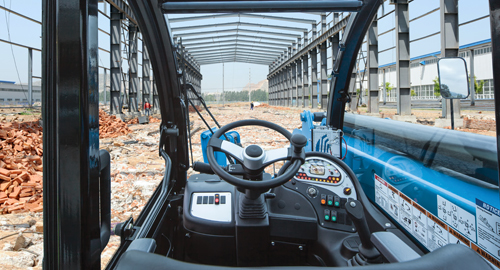

  • Ergonomic cab design with excellent visibility over the boom in transport position
  • Variable speed hydrostat transmission
  • Standard Aux hydraulics and Quick-Attach™ carriage system for attachment flexibility
  • Three selectable steering modes: front-wheel, coordinated and crab steer
  • DEUTZ 154 hp or Perkins 148 hp Tier 4i engine
  • Side engine mount for easy service access
  • Multi-function proportional joystick control for fast, precise load positioning
  • Proportional frame-leveling chassis — pick up or place loads on up to 7? side slopes
  • Full-time 4-wheel drive and 4-wheel steer
  • Drive Speed: 18 mph (29.0 km/h)
  • Forward Reach: 42 ft (12.80 m)
  • Lift Capacity: 12,000 lbs (5,443 kg)
  • Lifting Height: 56 ft (17.07 m)
  • Maximum Forward Reach: 42 ft (12.80 m)
  • Maximum Lift Capacity: 12,000 lbs (5,443 kg)
  • Maximum Lift Height: 56 ft (17.07 m)
  • Power Source: Deutz 4.1TCD turbo charged diesel, Tier 4i 154 hp (115 kW) Perkins 1204E-E44TA turbo charged diesel, Tier 4i 147 hp (110 kW)
  • Weight*: 36,600 lbs (16,602 kg)

Genie® high reach telehandlers

Genie high reach telehandlers offer excellent lift capacity, easily covering all your worksite needs. Available in two models, these telehandlers offer excellent productivity on jobsites ranging from new construction of multi-story buildings to masonry. Powerful features such as four-wheel drive and a turbocharged diesel engine provide reliable performance in the most rugged conditions.

  • Heavy-duty workhorse for lifting applications in construction, landscaping and agriculture
  • Ideal for loading/unloading and moving/placing materials, as well as jobsite cleanup
  • Low-end torque, four-wheel drive and four-wheel steering for hills and rough terrain
  • Simple no-tool access to daily inspection points
Equipment Type
Aerial Equipment / Telehandlers
