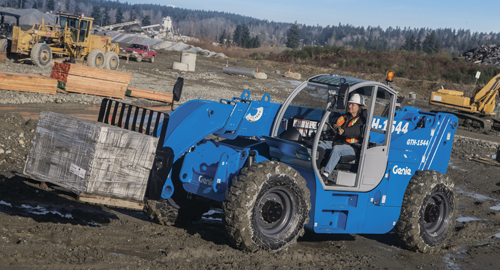

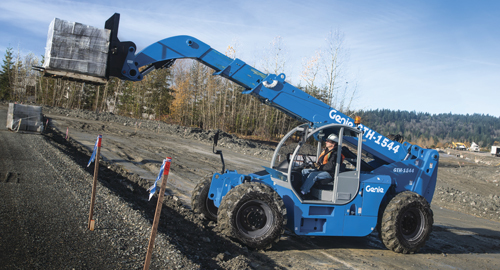

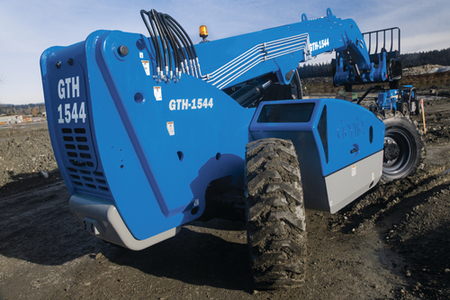

Genie GTH™-1544

  • 2-speed forward and reverse “Shift-on-fly” hydrostatic transmission
  • Ergonomic operator’s station features tiltable power-assisted steering, single-lever joystick control and new gauge and switch packages
  • 1,000 cold cranking amps at 0° F (-18° C)
  • Proportional frame-leveling chassis — pick up or place loads on up to 7° side slopes
  • Full time planetary 4-wheel drive
  • Multi-function proportional joystick control for fast, precise load positioning
  • 15,000 lb (6,804 kg) maximum lift capacity
  • Turbocharged Tier 4i diesel engine options
  • Three selectable steering modes: front-wheel, coordinated and crab steer steering
  • Drive Speed: 18 mph (29 km/h)
  • Forward Reach: 27 ft 3 in (8.31 m)
  • Lift Capacity: 15,000 lbs (6,804 kg)
  • Lifting Height: 44 ft (13.41 m)
  • Maximum Forward Reach: 27 ft 3 in (8.31 m)
  • Maximum Lift Capacity: 15,000 lbs (6,804 kg)
  • Maximum Lift Height: 44 ft (13.41 m)
  • Power Source: Deutz 4.1TCD turbo charged diesel, Tier 4 interim 154 hp (115 kW)* Perkins 1204E-E44TA turbo charged diesel, Tier 4 interim 147 hp (110 kW) * Also available as Tier 3 in limited regions.
  • Weight**: 33,686 lbs (15,280 kg) **Weight will vary depending on options and/or country standards.

Genie® high reach telehandlers

Genie high reach telehandlers offer excellent lift capacity, easily covering all your worksite needs. Available in two models, these telehandlers offer excellent productivity on jobsites ranging from new construction of multi-story buildings to masonry. Powerful features such as four-wheel drive and a turbocharged diesel engine provide reliable performance in the most rugged conditions.

  • Heavy-duty workhorse for lifting applications in construction, landscaping and agriculture
  • Ideal for loading/unloading and moving/placing materials, as well as jobsite cleanup
  • Low-end torque, four-wheel drive and four-wheel steering for hills and rough terrain
  • Simple no-tool access to daily inspection points
Equipment Type
Aerial Equipment / Telehandlers
