Fusion Utility Short Bed
| Key Specifications | |
|---|---|
| Motor | 5kW |
| Controller | 450 Amp Programmable |
| Drivetrain | 16:1 High Speed Rear Axle |
| Speed | 19 mph (30.4 km/h) |
| Battery | 51.2V 105Ah Marxon Lithium-Ion Pack with Heating Module |
| Charger | Onboard – 20 Amp 120V |
| Battery Level Indicator | Digital Touch Screen |
| Chassis | E-Coat and Powder Coated Steel Frame |
| Suspension | Heavy Duty Coil Over Shocks |
| Ground Clearance | 6.5″ (16.5 cm) with Standard Wheels and Tires |
| Brakes | 4 Wheel Premium Hydraulic Disc Brakes |
| Park Brake | Electro Magnetic, Automatically Actuated Once Vehicle is Stopped, Released when Accelerator Pedal is Engaged |
| Wheels and Tires | Black Aluminum, 225/55-12 |
| Range | 31 mi (50km) |
| Turning Radius | 122″ (310 cm) |
| Vehicle Capacity | 2 People |
| Overall Dimensions | 121″ x 48″ x 78″ (306cm x 122cm x 200cm) |
| Utility Bed Dimensions | 40″ x 45″ x 12″ (101.6cm x 114.3cm x 30.5cm) |
| Utility Bed | Aluminum Dump Bed with Electric Hydraulic Actuated Dump |
Details

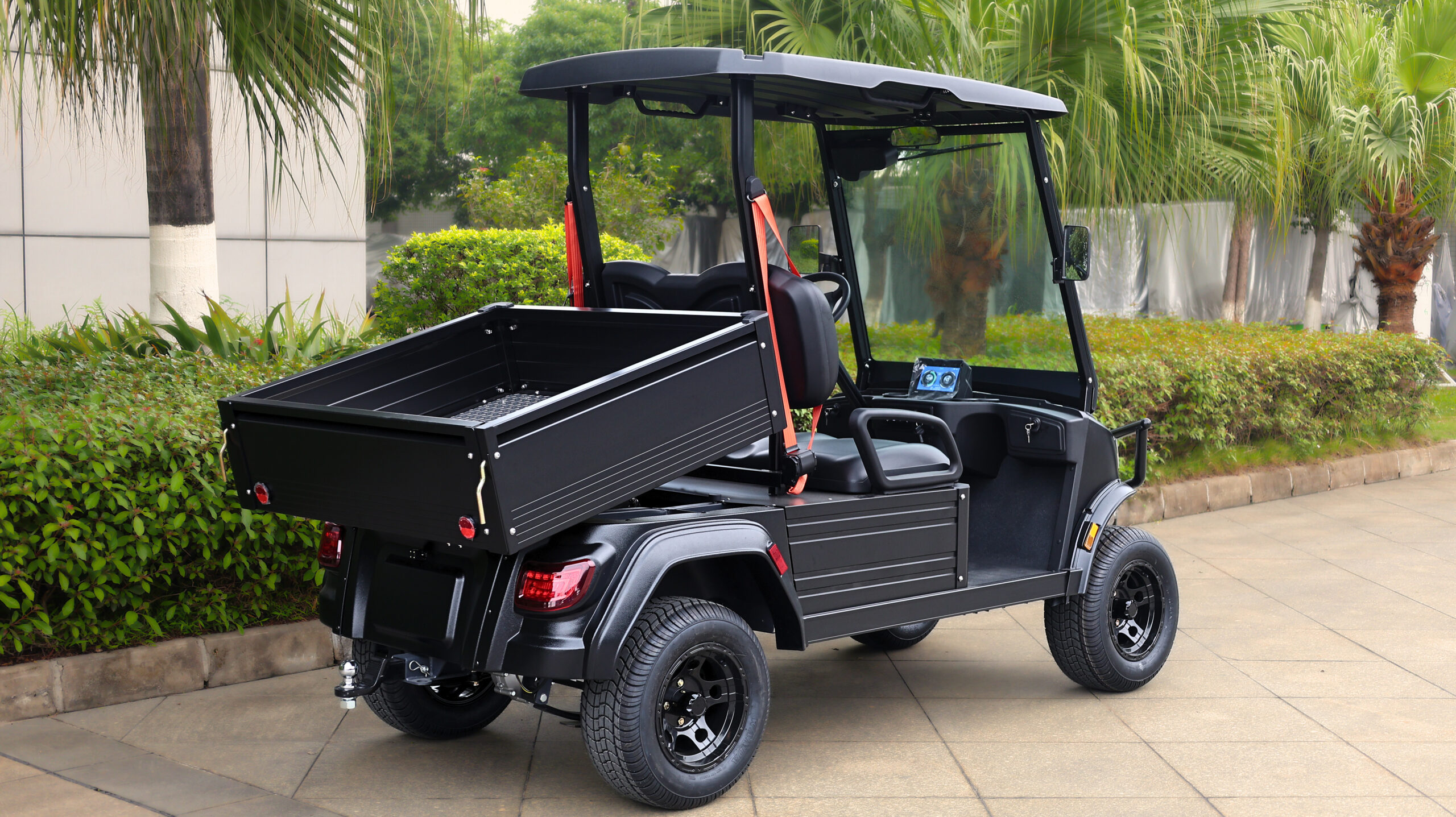

The Fusion Utility Short Bed is an extremely versatile and nimble work vehicle designed to move people, tools and equipment around job sites, campuses, airports, industrial plants, resorts, zoos and more. Engineered for work, the aluminum bed lifts with the press of a button thanks to its electric hydraulic dump system and the vehicle comes standard with a two-inch receiver for towing. It is also well-equipped with safety and reliability features like three-point seat belts, backup cameras, front brush guards, and a full five-year warranty on our maintenance-free lithium-ion battery. The highly efficient and reliable Fusion Utility Short Bed stands ready day in and day out.
- Equipment Type
- Industrial Vehicles and Personnel Carriers / UTVs & LSVs / Utility Vehicles
