Fusion Utility Long Bed
| Key Specifications | |
|---|---|
| Motor | 5kW |
| Controller | 450 Amp Programmable |
| Drivetrain | 16:1 High Speed Rear Axle |
| Speed | 19 mph (30.4 km/h) |
| Battery | 51.2V 105Ah Marxon Lithium-Ion Pack with Heating Module |
| Charger | Onboard – 20 Amp 120V |
| Battery Level Indicator | Digital Touch Screen |
| Chassis | E-Coat and Powder Coated Steel Frame |
| Suspension | Heavy Duty Coil Over Shocks |
| Ground Clearance | 6.5″ (16.5 cm) with Standard Wheels and Tires |
| Brakes | 4 Wheel Premium Hydraulic Disc Brakes |
| Park Brake | Electro Magnetic, Automatically Actuated Once Vehicle is Stopped, Released when Accelerator Pedal is Engaged |
| Wheels and Tires | Black Aluminum, 225/55-12 |
| Range | 31 mi (50km) |
| Turning Radius | 177″ (450 cm) |
| Vehicle Capacity | 2 People |
| Overall Dimensions | 150″ x 48″ x 78″ (380cm x 121.9cm x 200.6cm) |
| Utility Bed Dimensions | 71″ x 46″ x 12″ (180.3cm x 116.8cm x 30.5cm) |

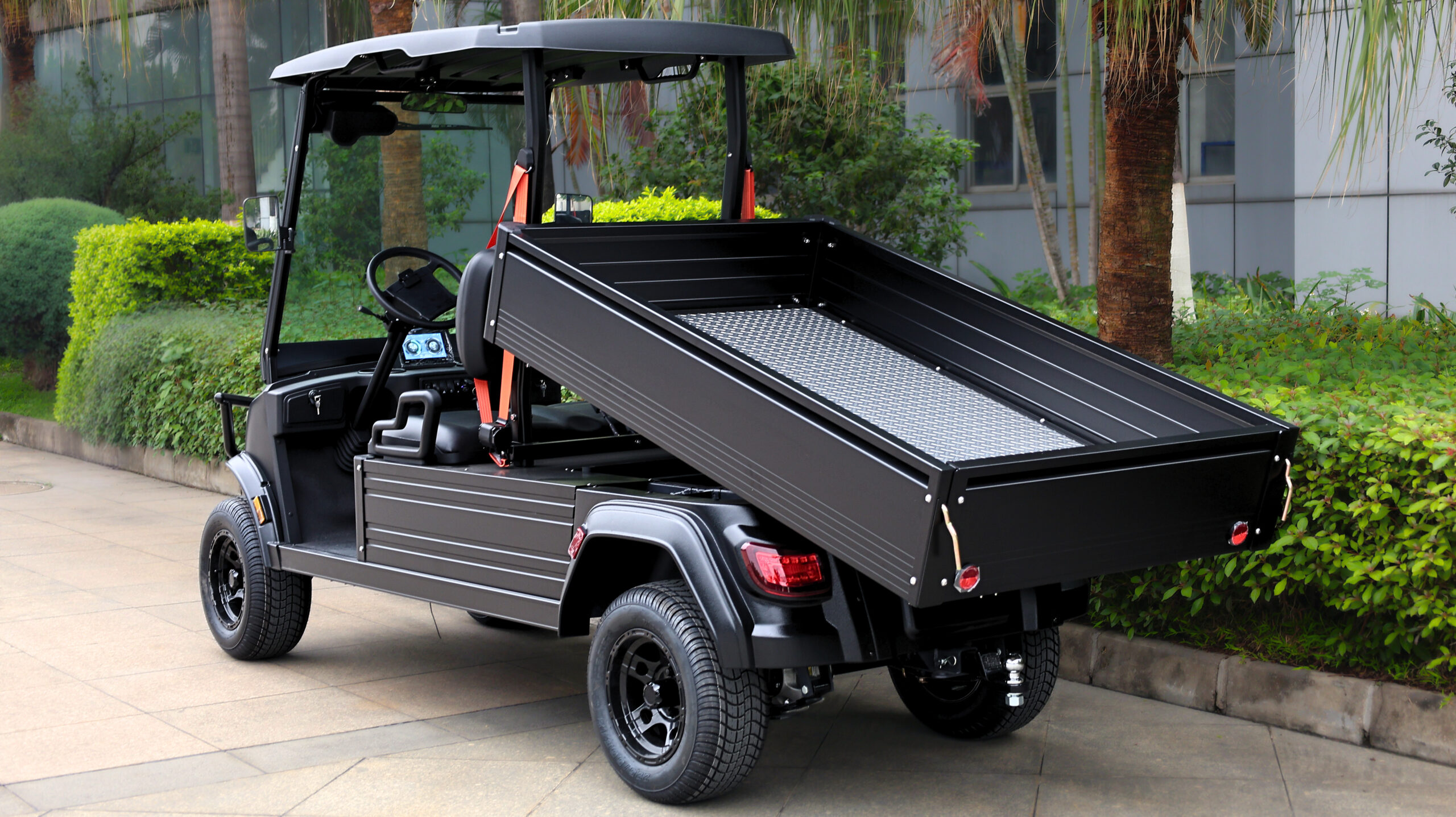

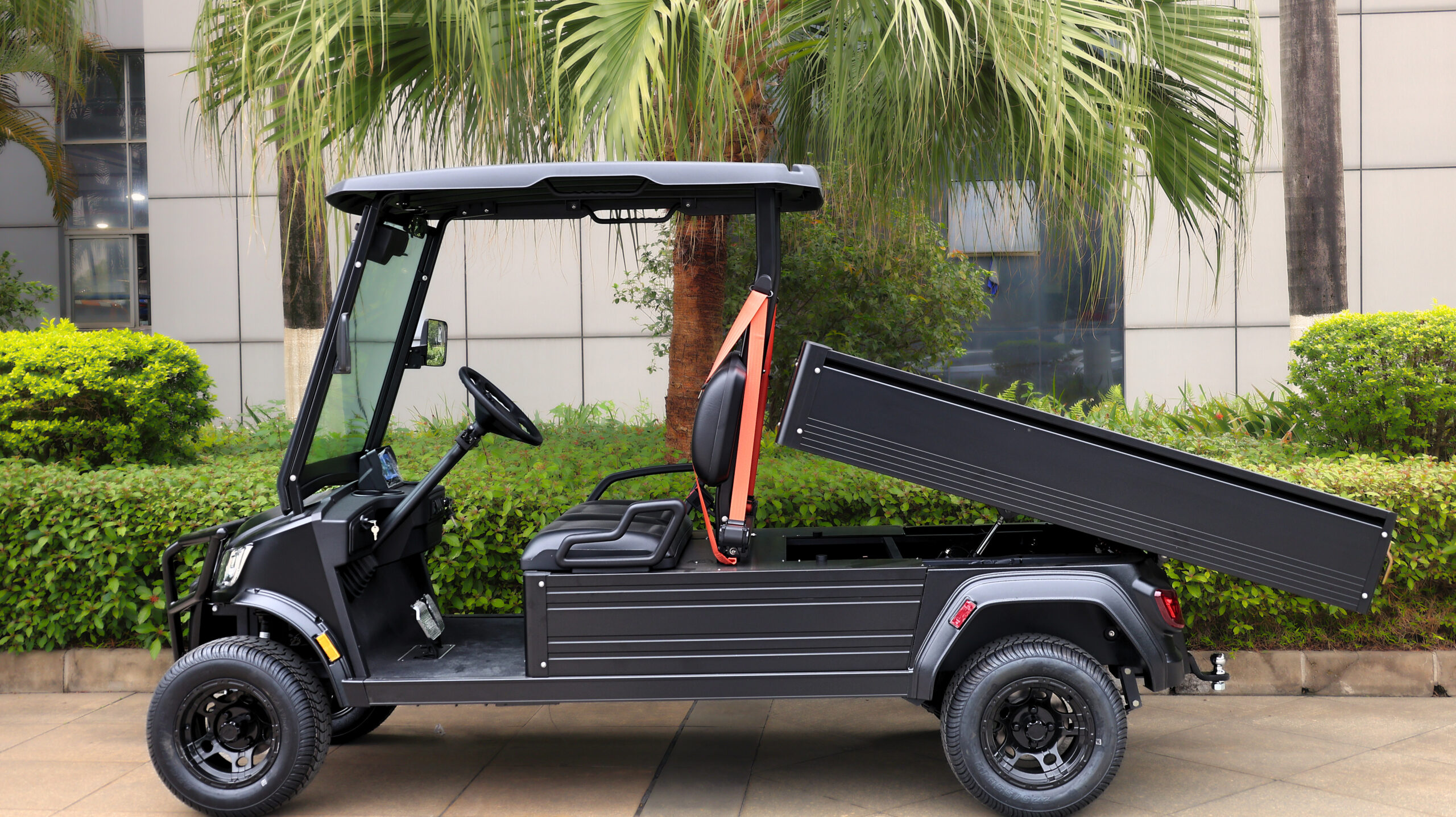

| Utility Bed | Aluminum Dump Bed with Electric Hydraulic Actuated Dump |
Details
The Fusion Utility Long Bed is an extremely capable work vehicle designed to move two people and more than 1,000 pounds of tools, equipment and other payload. The large aluminum bed is nearly 4 feet by 6 feet and lifts with the press of a button thanks to its electric hydraulic dump system. This highly reliable solution is ideal for landscaping, property management, maintenance and tradesmen on job sites, campuses, airports, industrial plants, resorts, zoos and more. Designed for work, it comes standard with safety and utility features like three-point seat belts, backup cameras, front brush guards, a full five-year warranty on our lithium ion battery and a two-inch receiver. The big payload long bed utility vehicle is ready to be put to work in your fleet.
