Taylor-Dunn Huskey C-426

Specs

Key Specifications
Tow Capacity	30,000 lb / 13,610 kg
Drawbar Pull – Normal	600 lb / 2.7 kN
Drawbar Pull – Ultimate	3,000 lb / 13.3 kN
Max Speed (Unloaded)	10 mph / 16 km/h
Turning Radius	74.5 in / 189 cm
Overall Length	93.5 in / 237 cm
Overall Width	39 in / 99 cm
Overall Height (without cab)	54 in / 137 cm
Overall Height (with cab)	82.5 in / 209.5 cm
Wheel Base	43 in / 109 cm
Step Height	19 in / 48 cm
Unit Weight (without battery)	2,700 lb / 1,225 kg
Motor	17 hp, Fully Enclosed AC
System Voltage	48V (Traction) / 12V (Accessories)
Drive Axle	GT Automotive Differential
Transmission	Helical Gear, Oil-Bath Transaxle
Battery (from factory)	Less industrial battery
Battery Compartment Size (LxWxH)	32 in x 18.5 in x 24 in
Battery Weight Range	1,200-1,500 lb (544-680 kg)
Battery Connector	SB350 Blue
Charger	Less charger (off-board, optional)
Controller	Self-diagnostic AC speed controller
Frame	Fully Welded Unitized 10-ga. Steel, 1/2″ Push Plate
Steering	Manual, Re-circulating Ball
Suspension	Front & Rear Coil Springs, Rear Shock Absorbers
Brakes	Four-Wheel Hydraulic Disc + Auto Electric Park Brake
Tires (Standard)	4.00 x 8 Soft Solid, Traction Tread
Seat	Single, Adjustable, Black Vinyl, Spring Suspension
Hitch (Standard)	Spring-Loaded E-Type with Hand Release Lever
Color (Standard)	Red Cowl / Gray Chassis
Maximum Occupancy	1 operator only / 250 lb (113 kg)
Conformance	Type E OSHA 1910.178, ANSI B56.9

Details

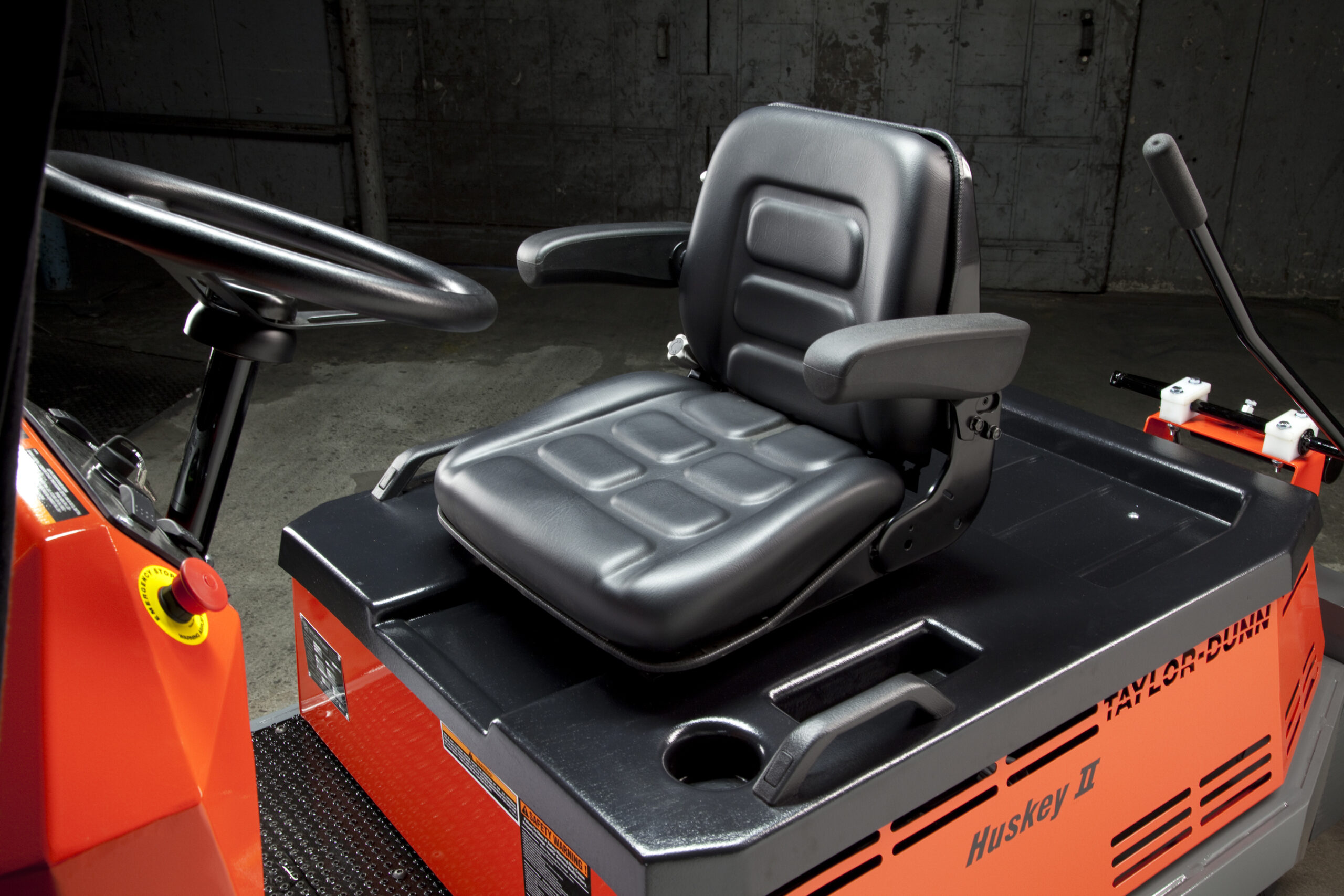

The HuskeyTM II AC comes equipped with many standard features for operator comfort such as full 4-wheel suspension, remote lever to release the hitch, suspension seat, cushion grip steering wheel, and cup holder.

Additional standard features such as high visibility driving position, lighting (headlight with dual brake, tail, and reverse lights), automatic parking brake, emergency stop switch, multifunction dash display, and full perimeter steel plate protection are provided for the safety of the driver and others.

Options allow configurations to meet various applications.
