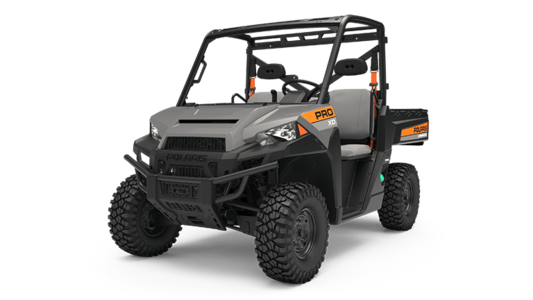

Polaris Pro XD Mid-Size Gasoline Crew


Cylinders Displacement 570 cc
Drive System Type On-Demand 4×4
Engine Type ProStar 570 cc Gas
Fuel / Battery System Electronic Fuel Injection
Horsepower / Torque 39.5 HP
Top Speed Adjustable up to 40 mph


Bed Box Dimensions (L x W x H) 33.3″ x 48.7″ x 12.3″
Box Capacity 500 lb
Estimated Dry Weight 1,490 lb
Fuel Capacity 9.5 gal (36 L)
Ground Clearance 11 in
Hitch Towing Rating 1,500 lb
Overall Vehicle Size (L x W x H) 144 x 56 x 74 in.
Payload Capacity 1,141lb
Person Capacity 4
Turning Radius (Outer) 197 in (500 cm)
Wheelbase 105 in (267.1 cm)


Front Tires Wanda Crawler P3057
Rear Tires Wanda Crawler P3057


Front/Rear Brakes 4-Wheel Hydraulic Disc
Parking Brake Park in Transmission


Instrumentation All Digital Gauge, Speedometer, Odometer, Tachometer, 2 Tripmeters, Hour Meter, Gear Indicator, Diff Lock Indicator, Clock, Clutch Belt Slip Warning, Low Oil Pressure Indicator, Seat Belt Indicator
Lighting 55W Headlight, LED Taillamps
Other Standard Features Horn, Backup Alarm, Password protected, electronically adjustable speed limiting.
Seat Covering Kevlar®-Backed Vinyl (Grey)
Equipment Type
UTVs & LSVs / Industrial Vehicles and Personnel Carriers / Utility Vehicles
