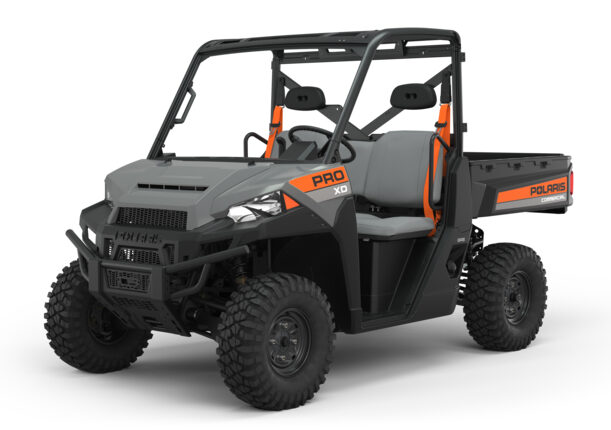

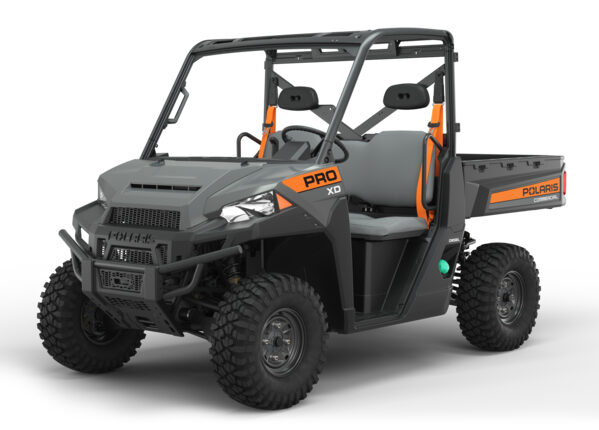

Polaris Pro XD Full-Size Diesel
ENGINE & DRIVETRAIN
| Cylinders Displacement | 898 cc |
|---|---|
| Drive System Type | On-Demand 4×4 |
| Engine Type | 3-Cylinder Kubota® Diesel |
| Fuel / Battery System | Mechanical Injection |
| Horsepower / Torque | 24.5 HP |
| Top Speed | 26 mph |
DIMENSIONS
| Bed Box Dimensions (L x W x H) | 43.5 x 54 x 11.5 in |
|---|---|
| Box Capacity | 1,250 lb |
| Estimated Dry Weight | 1,605 lb |
| Fuel Capacity | 11.5 gal (43.5 L) |
| Ground Clearance | 11 in |
| Hitch Towing Rating | 2,500 lb |
| Overall Vehicle Size (L x W x H) | 126 x 62.5 x 75 in |
| Payload Capacity | 1825 lb |
| Person Capacity | 2 |
| Turning Radius (Outer) | 144 in (365 cm) |
| Wheelbase | 85 in (215.9 cm) |
TIRES/WHEELS
| Front Tires | 26 x 10-12 Duro® DI-2042 Power Grip (M/T) |
|---|---|
| Rear Tires | 26 x 10-12 Duro® DI-2042 Power Grip (M/T) |
BRAKES
| Front/Rear Brakes | 4-Wheel Hydraulic Disc with Dual-Bore Front Calipers |
|---|---|
| Parking Brake | Park in Transmission + Separate Mechanical Parking Brake Standard |
ADDITIONAL SPECS
| Instrumentation | All Digital Gauge, Speedometer, Odometer, Tachometer, 2 Tripmeters, Hour Meter, Gear Indicator, Fuel Gauge, Engine Temperature, Hi-Temp Light, Clock, Clutch Belt Slip Warning, Glow Plug Indicator, Low Oil Pressure Indicator, Seat Belt Indicator, Parking Brake Engaged Alarm |
|---|---|
| Lighting | 55W low/ 60W high, LED Tail |
| Other Standard Features | Horn, Backup Alarm, Mechanically Controlled Speed Limiting |
| Seat Covering | Kevlar®-Backed Vinyl (Grey) |
Details
- Equipment Type
- Industrial Vehicles and Personnel Carriers / UTVs & LSVs / Utility Vehicles
