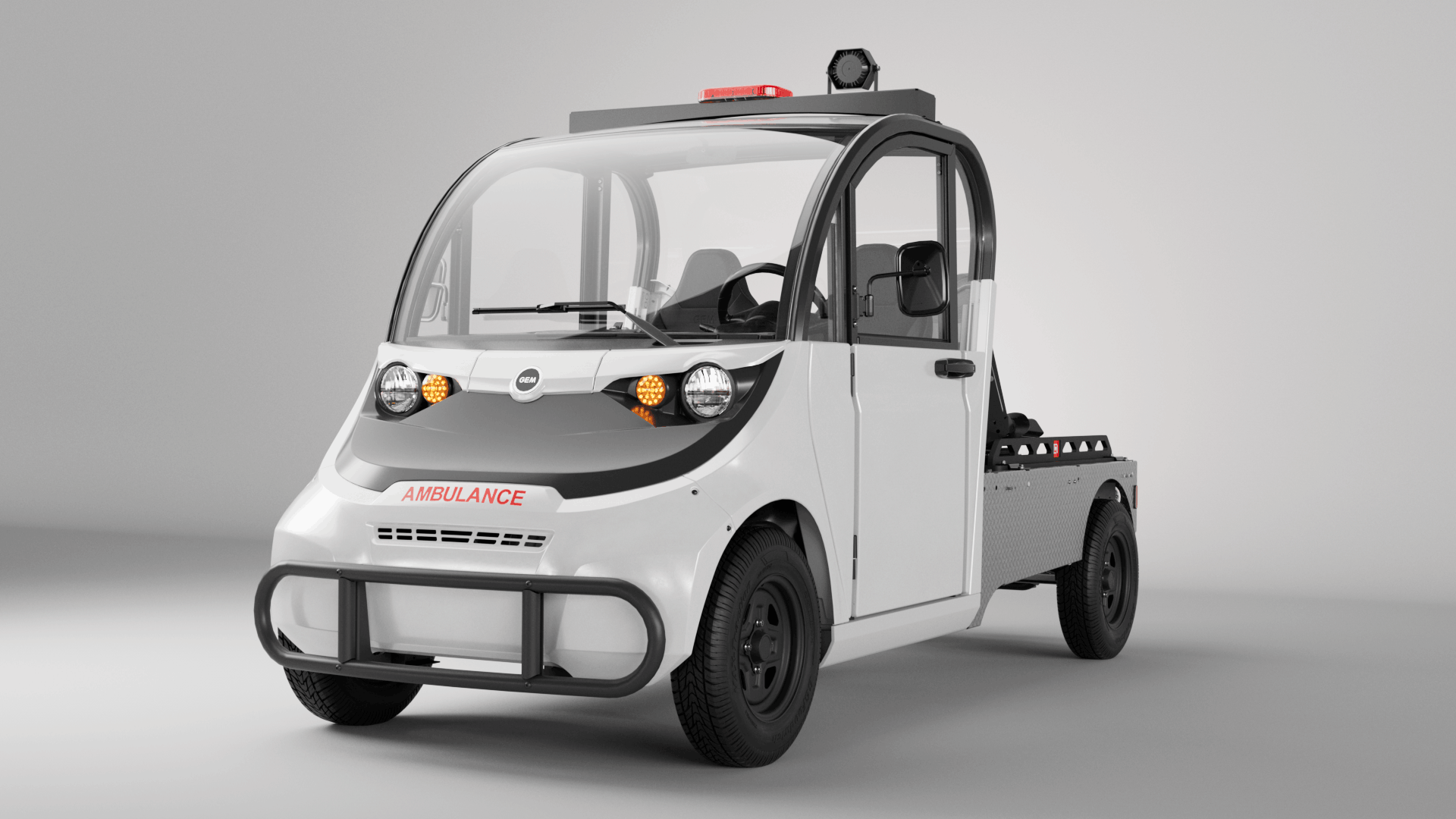

GEM Ambulance
INTERIOR
- Three-point seat belts and bucket seats for crew security
- EMT attendant seating positioned next to the patient for care during transport

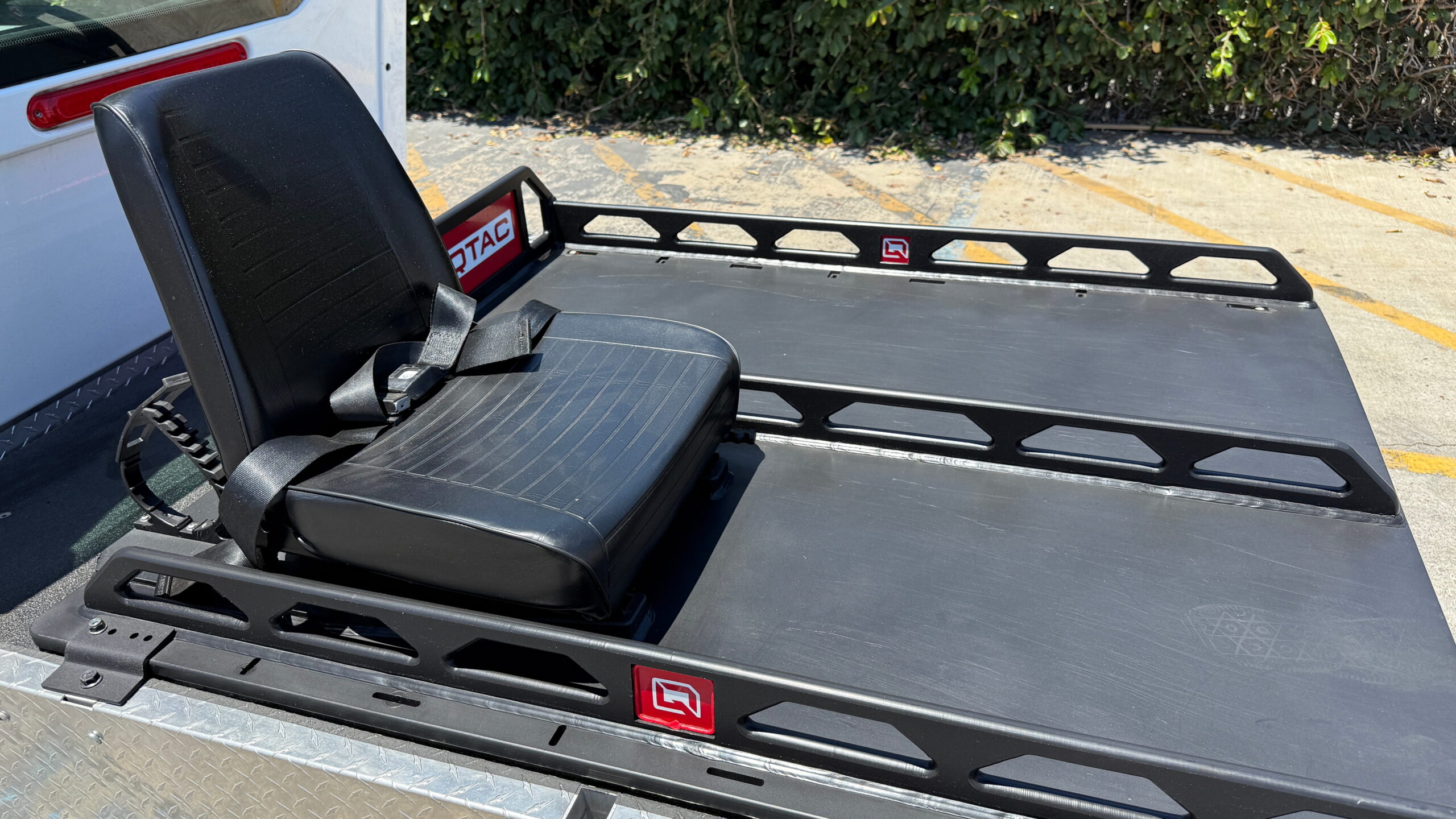

- Adjustable attendant seat with lap belt (standard on all QTAC skids)
- Backup camera and 360-degree sightlines for driver awareness

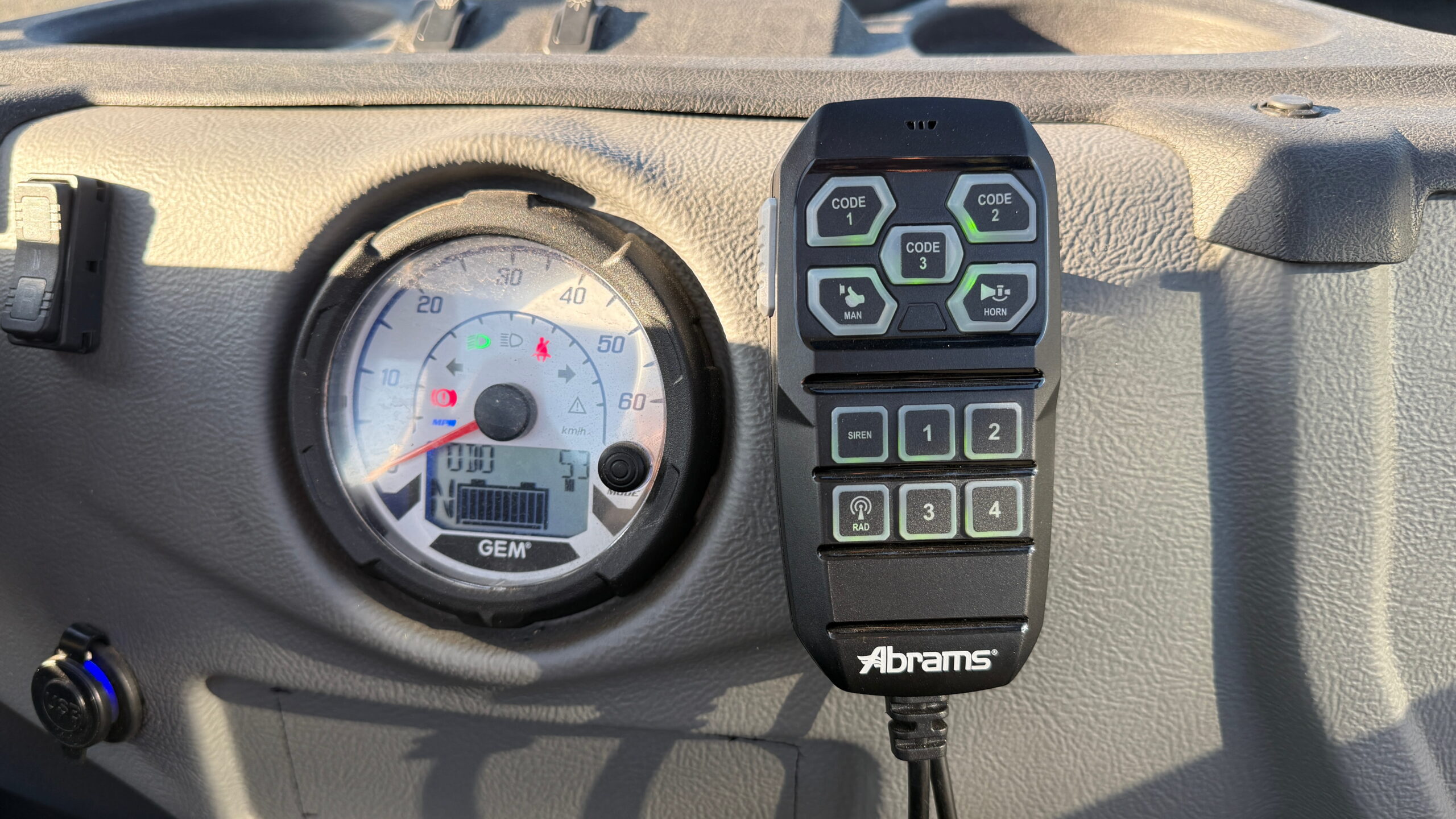

- Backlit handheld siren/PA control mounted within reach of driver and passenger
- In-cab storage for smaller medical items
- Low-deck height design with rear step for easy patient and personnel access
- Optional doors, heat, fan and defrost
EXTERIOR

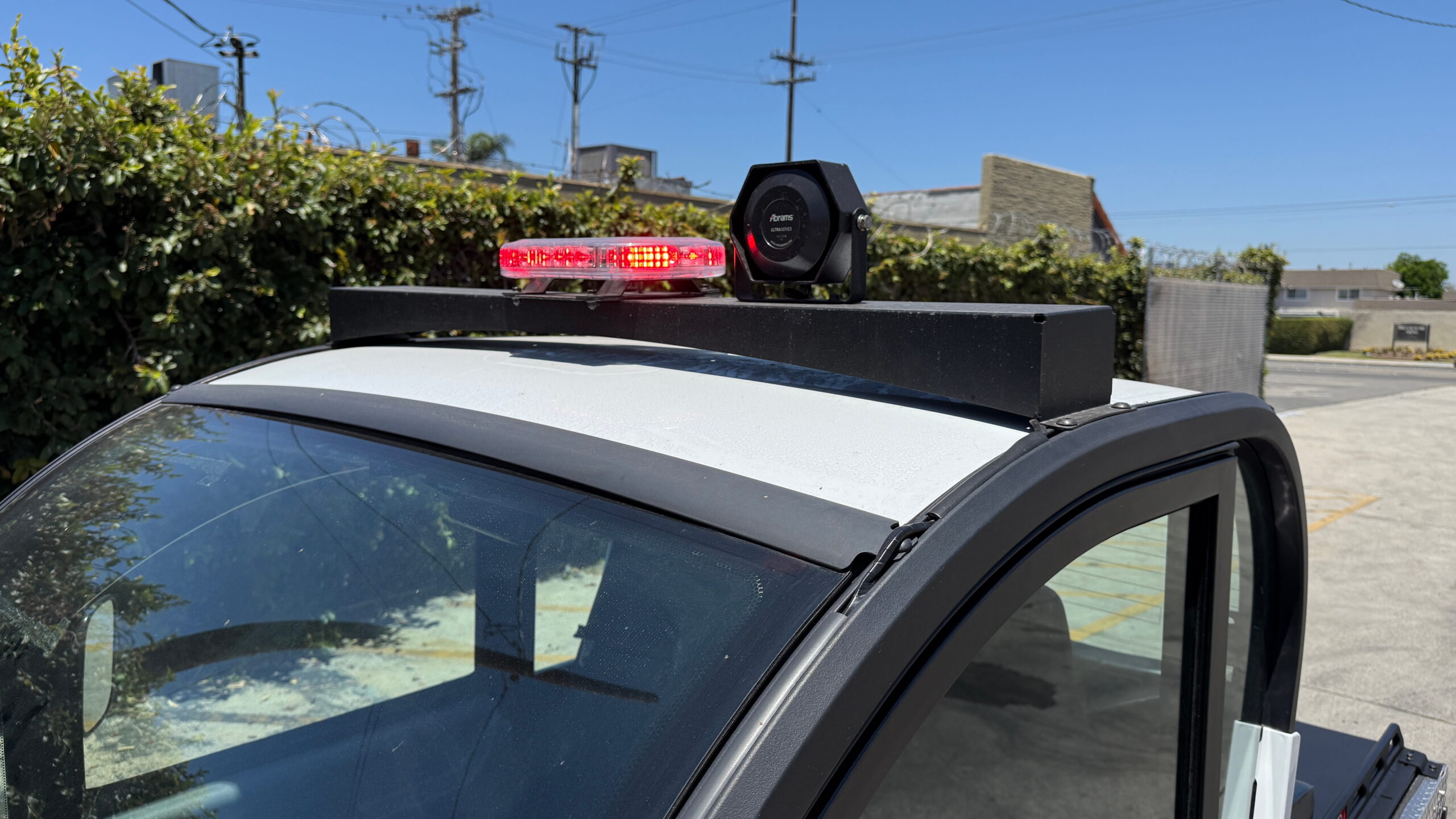

- Red emergency warning lights with 360-degree coverage and SAE Class 1 compliance
- Siren system with selectable patterns and decibel levels up to 124
- Medical vehicle public address (PA) system with digital amplifier
- Professional ambulance decal
- LED headlights and taillights with turn signals and pedestrian noise emitter
- DOT-rated street tires
- Standard white exterior

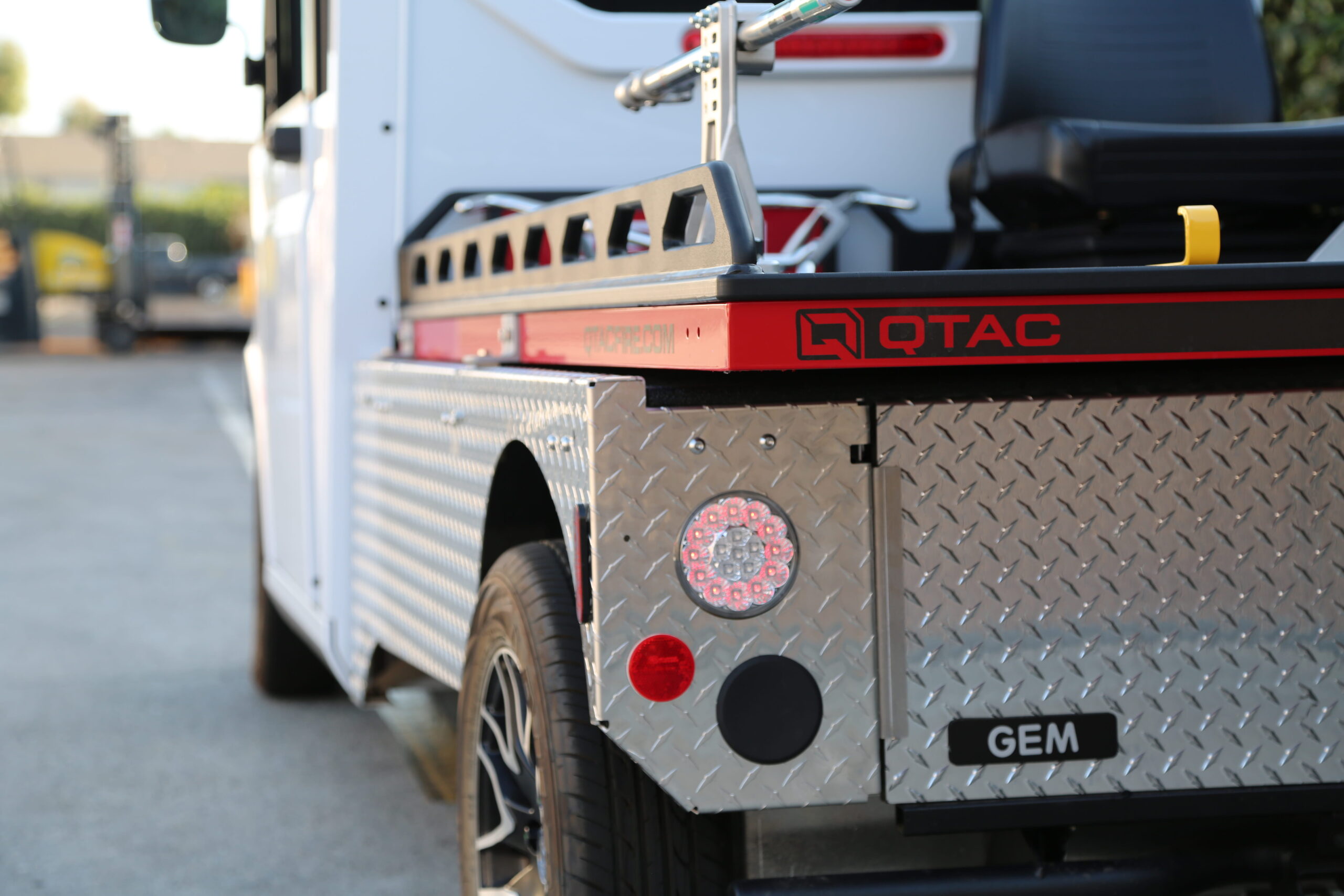

- Recessed rear bed storage accessible through the tailgate

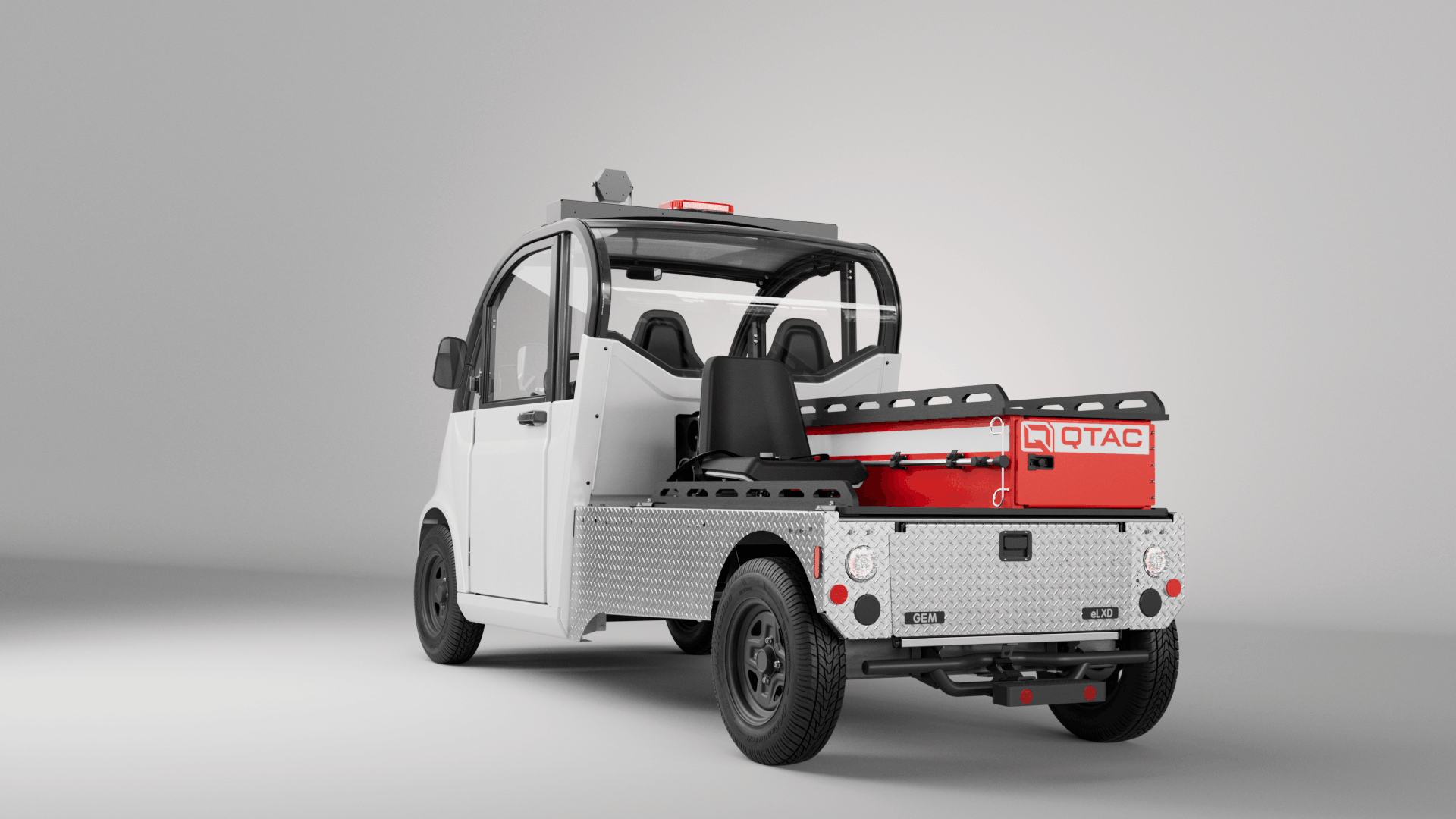

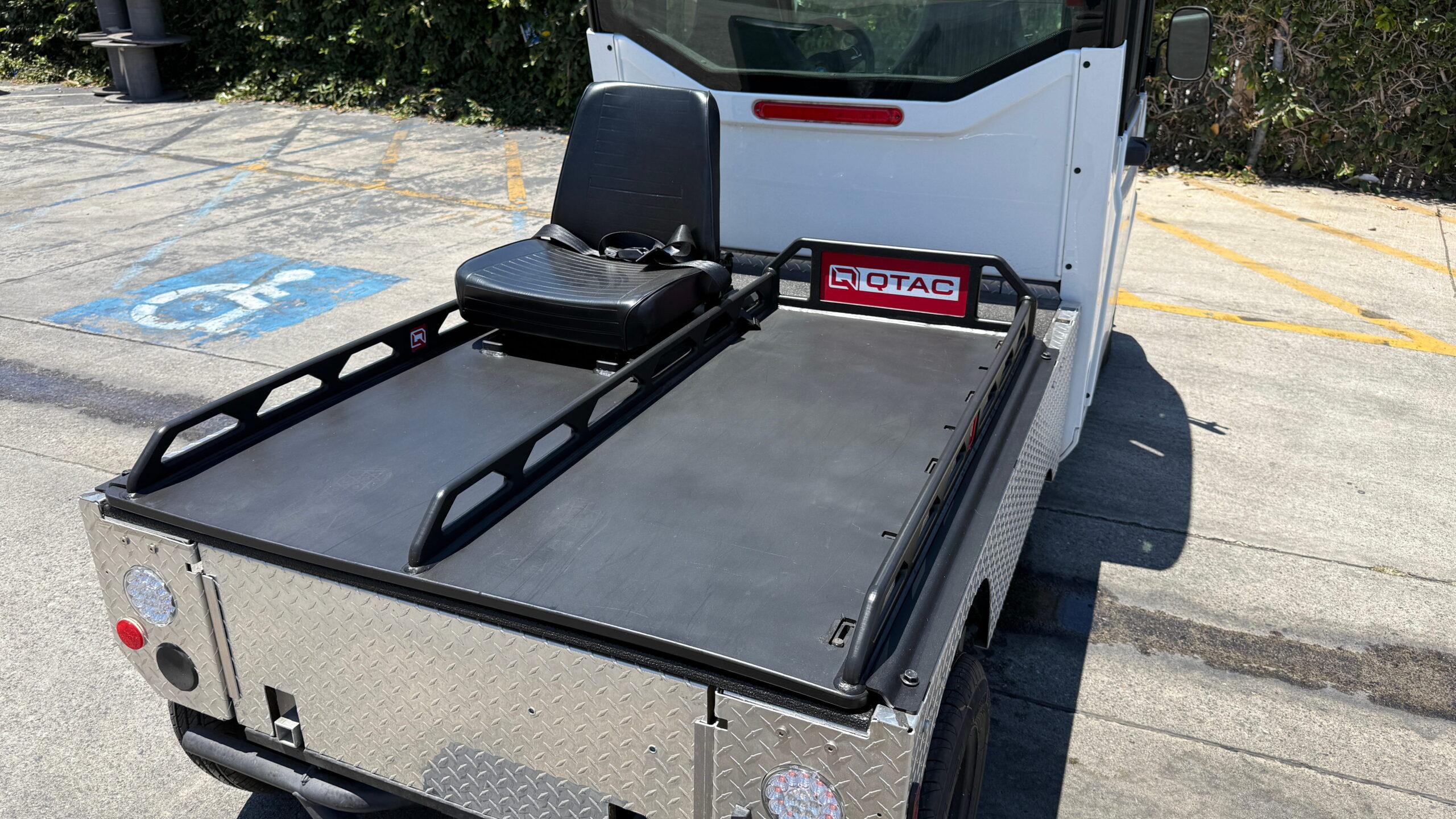

- Three QTAC skid options (EMS-F, EMS-R and EMS-RG) in durable, UV-resistant PolyTough™ construction
- Lightweight, removable skid mounting system
- Skids mounted between the wheels for stability
HANDLING & POWER
- AGM or Li-ion batteries, with up to 86 miles of estimated range on the 16 kWh Li-ion
- Charging compatible with 120V to 240V, J1772 EVSE cords and public charging stations, plus opportunity charging
- Operating temperatures from -20 to 140 °F
- Controlled top speed of 25 mph for safe emergency response
- MacPherson strut front suspension and independent trailing arm rear suspension
- Seven-year/30,000-mile limited battery warranty and four-year/20,000-mile limited vehicle warranty
- Two-year warranty on the EMS skids
| Key Specifications | |
|---|---|
| Batteries | Maintenance-Free Distance AGM or Li-Ion |
| Charger | AGM: Onboard 1 kW or Li-Ion – 4 Hour Fast Charger |
| Top Speed | 25 mph (40 kmh) |
| Max Estimated Range* | 41 miles w/ std AGM, 86 miles w/ 16 kWh Li-Ion |
| Length x Width x Height | 167 in (424 cm) X 55.5 in (141 cm) X 73 in (186 cm) |
| Turning Radius | 220 in (559 cm) |
| Wheelbase | 114 in (290 cm) |
| Front Suspension | MacPherson Strut 5.6 in (14 cm) Travel |
| Rear Suspension | Independent Trailing Arm 6 in (15 cm) Travel |
| Wheels | Standard 13 in DOT Street-Rated 155/80 R15 |
| Ground Clearance | 8 in (20.3 cm) |
| GVW | 3,000 lbs (1,361 kg) |
| Brakes (Front/Rear) | Disk/Hydraulic Drum |
| QTAC Skid | Choose between R, F, RG Options |
| Siren | Standard |
| PA System | Standard |
| Ambulance Graphics | Standard |
| Emergency Light | Standard |
| Doors, Heat, Fan, Defrost | Optional |
| Electronic Power & Tilt Steering | Optional |
| Exterior Color | White |
Details
- Equipment Type
- Industrial Vehicles and Personnel Carriers / Low Speed Vehicle / UTVs & LSVs
