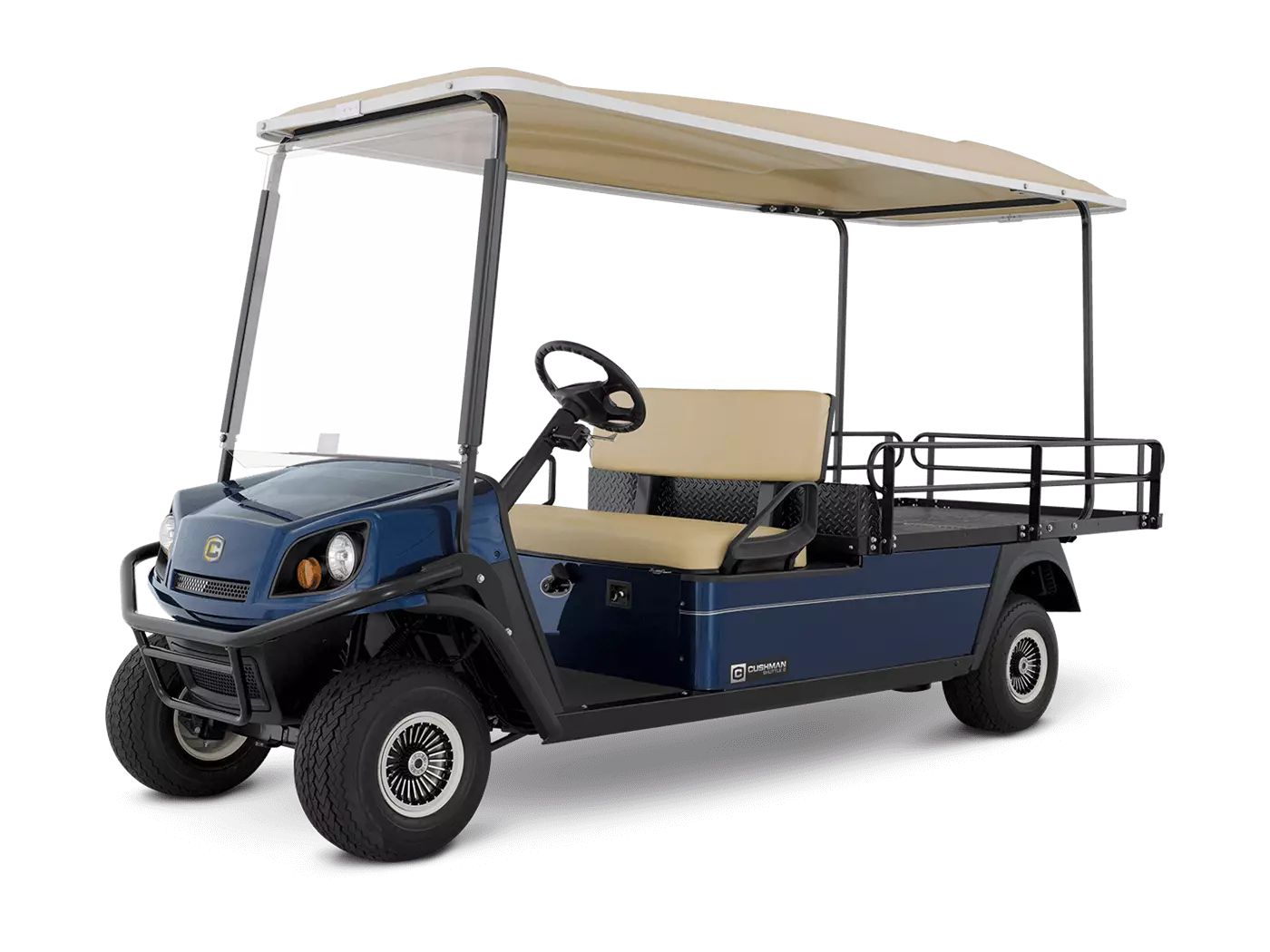

Cushman Shuttle 2
BODY & CHASSIS
| Frame | Welded Steel w/ E-Shield e-coat plus DuraShield™ Powder Coat |
|---|---|
| Body & Finish | Injection Molded TPO |
| Standard Color | Patriot Blue |
DIMENSIONS
| Overall Length | 141 in (358 cm) |
|---|---|
| Overall Width | 48.5 in. (123 cm) |
| Overall Height | 48.6 in (123 cm) (w/o Roof) / 72.0 in (183 cm) (w/ Struts & Roof) |
| Wheel Base | 93.5 in. (237 cm) |
| Wheel Track | 34.2 in (87 cm) Front/ 38 in (97 cm) Rear |
| Ground Clearance | 4.3 in (11 cm) / 3.9 in (9.8 cm) |
| Cargo Deck Capacity | 20.9 sq ft (1.94 sq m) |
PERFORMANCE
| Seating Capacity | 2 Person |
|---|---|
| Curb Weight | 923 lbs (419 kg) |
| Vehicle Load Capacity | 1200 lb (544 kg) |
| Bed Load Capacity | 800 lb (363 kg) |
| Outside Clearance Circle | 25.5 ft (7.8 m) |
| Speed | 16.5 mph ± 0.5 mph (26.4 kph ± 0.8 kph) 14 mph ± 0.5 mph (22.5 kph ± 0.8 kph) |
STEERING & SUSPENSION
| Steering | Self-Compensating Rack & Pinion |
|---|---|
| Suspension | Leaf Springs w/ Hydraulic Shock Absorbers |
| Service Brake | Rear Wheel Mechanical, Self-Adjusting Drum |
| Parking Brake | Automatic Electro-Magnetic /Self-Compensating, Single-Point Engagement |
| Tires | 18 x 8.5 – 8 (4 Ply-Rated) |
