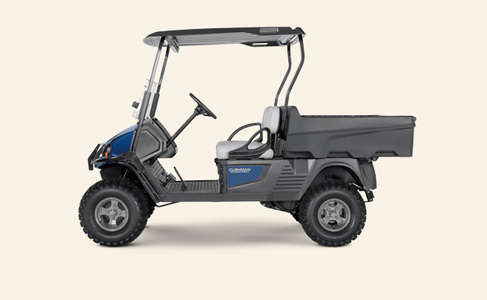

Cushman Hauler PRO
- Batteries (Qty, Type): Nine, 8-Volt Deep Cycle
- Batteries (Qty, Type): Nine, 8-Volt Deep Cycle
- Battery Charger: 900 Watt, 72V DC
- Battery Charger: 900 Watt 72V DC
- Bed Load Capacity: 800 lb (363 kg)
- Bed Load Capacity: 500 lb (227 kg)
- Cargo Box Capacity & Material: 12 cu ft (0.34 m3)/Roto-molded polyethylene
- Cargo Box Capacity & Material: 12 cu ft (0.34 m3)/Roto-molded polyethylene
- Cargo Box Depth (Inside): 12.0 in (30.5 cm)
- Cargo Box Depth (Inside): 12 in (30.5 cm)
- Cargo Box Length (Inside): 39.0 in (99 cm)
- Cargo Box Length (Inside): 39.0 in (99 cm)
- Cargo Box Width (Inside): 44.0 in (112 cm)
- Cargo Box Width (Inside): 44.0 in (112 cm)
- Curb Weight (w/ Batteries): 1475 lb (669 kg)
- Curb Weight>(w/ Batteries): 1513 lb (686.29 kg)
- Drive Train: Motor Shaft Direct Drive
- Drive Train: Motor Shaft Direct Drive
- Dry Weight: 910 lb (413 kg) (Without Batteries)
- Dry Weight: 948 lb (430 kg) (Without Batteries)
- Electrical System: 72 Volt
- Electrical System: 72 Volt
- Frame: Welded Steel. Durashield™ Powder Coat
- Frame: Welded Steel Durashield™ Powder Coat
- Front Body and Finish: Injection Molded TPO
- Front Body and Finish: Injection Molded TPO
- Front Suspension: Leaf Springs w/ Hydraulic Shock Absorbers
- Front Suspension: Leaf Springs w/ Hydraulic Shock Absorbers
- Front Tires: K500 18 x 8.5 – 8 (6 Ply Rated) Black Wheel
- Front Tires: K500 20 x 8 – 10 (6 Ply Rated) Black Wheel
- Front Wheel Track: 35.0 in (89 cm)
- Front Wheel Track: 38.0 in (97 cm)
- Gear Selection: Forward-Neutral-Reverse
- Gear Selection: Forward-Neutral-Reverse
- Ground Clearance: 4.5 in (12 cm)
- Ground Clearance: 7.0 in (18 cm)
- Horsepower (kW): 22.4HP (16.7 kW) – Measured at Peak Torque
- Horsepower (kW): 22.4HP (16.7 kW) – Measured at Peak Torque
- Motor Type: AC Induction
- Motor Type: AC Induction
- Outside Clearance Circle: 21.5 ft (6.55 m)
- Outside Clearance Circle: 24.0 ft (7.3 m)
- Overall Height w/o Roof: 47.3 in (121 cm) (Top of steering wheel)
- Overall Height w/o Roof: 53.0 in (135 cm) (Top of steering wheel)
- Overall Height w/Struts & Roof: 70.5 in (180 cm)
- Overall Height w/Struts & Roof: 77.0 in (196 cm)
- Overall Length: 115 in (292 cm)
- Overall Length: 119 in (302.26 cm)
- Overall Width: 49.4 in (126 cm)
- Overall Width: 49.4 in (126 cm)
- Parking Brake: Self-compensating, Single Point Engagement
- Parking Brake: Self-compensating, Single Point Engagement
- Power Source: 72-Volts DC
- Power Source: 72-Volts DC
- Programmable Speed Range: 5 – 19 mph (8 – 30.5 kph)
- Rear Axle Ratio: 17:1
- Rear Axle Ratio: 17:1
- Rear Body and Finish: Injection Molded TPO
- Rear Body and Finish: Injection Molded TPO
- Rear Suspension: Leaf Springs w/ Hydraulic Shock Absorbers
- Rear Suspension: Leaf Springs w/ Hydraulic Shock Absorbers
- Rear Tires: K500 18 x 8.5 – 8 (6 Ply Rated) Black Wheel
- Rear Tires: K500 20 x 8 – 10 (6 Ply Rated) Black Wheel
- Rear Wheel Track: 38.5 in (98 cm)
- Rear Wheel Track: 38.5 in (98 cm)
- Seating Capacity and Style: 2 Persons – Bench
- Seating Capacity and Style: 2 Persons – Bench
- Service Brake: Rear Wheel Mechanical Self-adjusting Drum
- Service Brake: Rear Wheel Mechanical Self-adjusting Drum
- Speed (Level Ground): 14.5 mph +/- 0.5 mph (23.34 kph +/-0.8 kph)
- Speed (Level Ground): 16.5 mph +/- 0.5 mph (27 kph +/-0.8 kph)
- Speed Controller: 350 Amp AC
- Speed Controller: 350 Amp AC
- Standard Color: Patriot Blue
- Standard Color: Patriot Blue
- Steering: Self-compensating rack and pinion
- Steering: Self-compensating Rack and Pinion
- Towing Capacity: 1500 lb (680.39 kg) max load
- Towing Capacity: 1200 lb (544.31 kg) max load
- Transaxle: Differential with Helical Gears
- Transaxle: Differential with Helical Gears
- Vehicle Load Capacity: 1200 lb (544.31 kg)
- Vehicle Load Capacity: 900 lb (408 kg)
- Wheel Base: 76.0 in (193 cm)
- Wheel Base: 77.5 in (197 cm)
Details
Built to honor the extra mile.
With a 72-volt electric drivetrain, the Hauler PRO series brings advanced AC power to your jobsite that is 25 percent more efficient than DC options. But you’ll get more than an extended 50-mile range from this powerhouse. With up to a 1200-lb load capacity, 12-cu-ft cargo bed and optional limited slip differential means the Hauler PRO and PRO-X show up to work in any conditions.
- Powerful 72V AC drivetrain
- Up to 50 miles of range
- 12 cu-ft cargo box
- Standard E-Shield™ protected frame
- Equipment Type
- UTVs & LSVs / Industrial Vehicles and Personnel Carriers / Utility Vehicles
