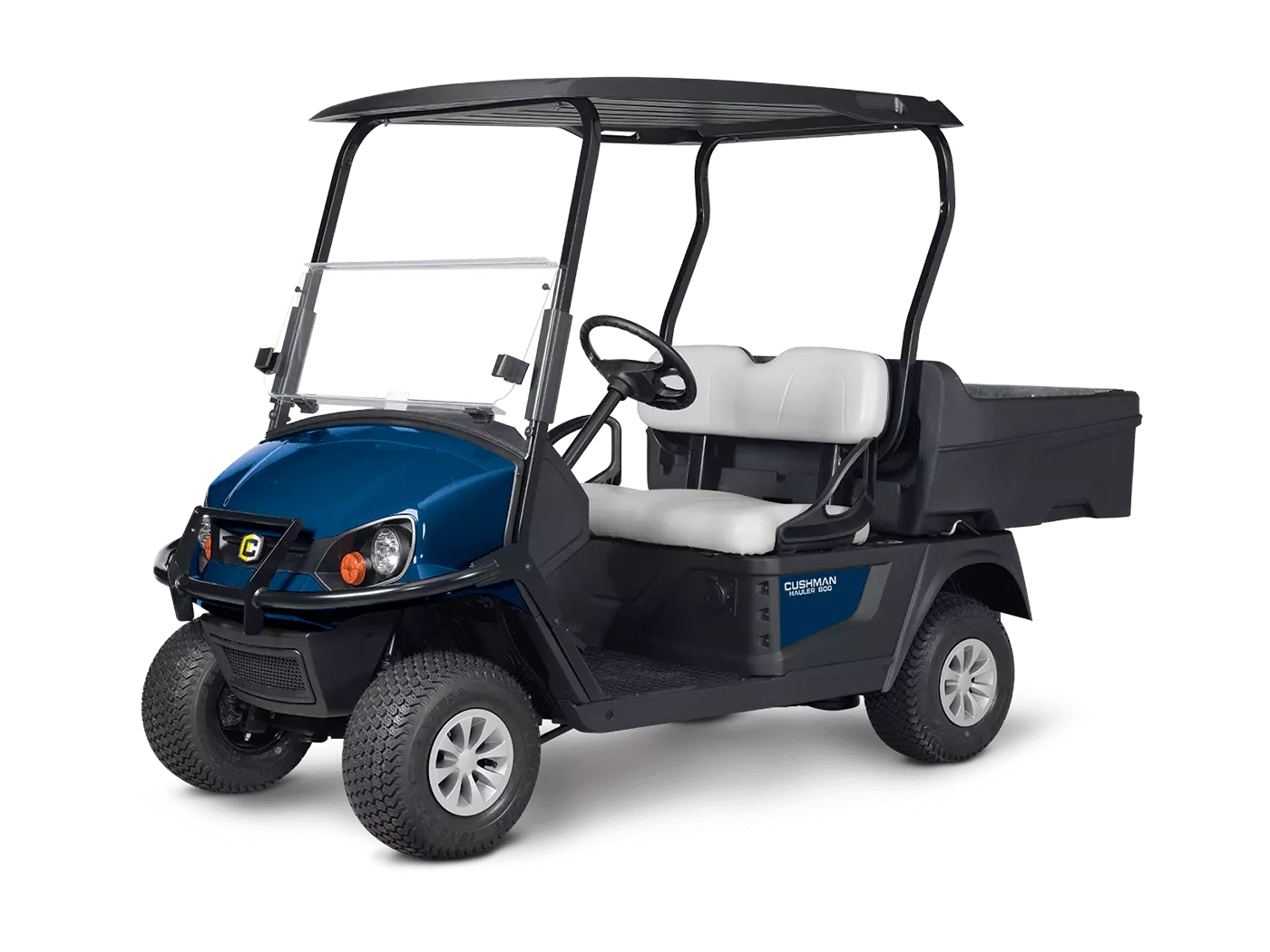

Cushman Hauler 800
BODY & CHASSIS
| Frame | Welded Steel w/ E-Shield e-coat plus DuraShield™ Powder Coat |
|---|---|
| Body & Finish | Front: Injection Molded TPO Rear: Injection Molded PP |
| Standard Color | Patriot Blue, Forest Green |
DIMENSIONS
| Overall Length | 110 in (280 cm) |
|---|---|
| Overall Width | 49 in (125 cm) |
| Overall Height | No Canopy: 47 in (120 cm) With Canopy: 69.5 in (176 cm) |
| Wheel Base | 65.5 in (166 cm) |
| Wheel Track | Front: 37.0 in (94 cm) Rear: 38.0 in (97 cm) |
| Ground Clearance | 4.3 in (11 cm) |
| Cargo Deck Capacity | 8.4 cu ft (0.24 m3) |
| Cargo Deck Material | Roto-Molded Polyethylene |
PERFORMANCE
| Seating Capacity | 2 Person |
|---|---|
| Curb Weight | 791 lb (358.8 kg)/ 803 lb (364.2 kg) |
| Vehicle Load Capacity | 800 lb (362.9 kg) |
| Bed Load Capacity | 400 lb (181.4 kg) |
| Towing Capacity | 900 lb (408.2 kg) Max Load |
| Outside Clearance Circle | 18.9 ft (5.8 m) |
| Speed | 14 mph ± 0.5 mph (22.5 kph ± 0.8 kph)/ 16.5 ± 0.5 mph (26.5 ± 0.8 kph) |
STEERING & SUSPENSION
| Steering | Self-Compensating Rack & Pinion |
|---|---|
| Suspension | Leaf Springs w/ Hydraulic Shock Absorbers |
| Service Brake | Rear Wheel Mechanical, Self-Adjusting Drum |
| Parking Brake | Self-Compensating, Single-Point Engagement |
| Tires | 18 x 8.5 – 8 (6 Ply-Rated) |
Details
- Equipment Type
- Industrial Vehicles and Personnel Carriers / UTVs & LSVs / Utility Vehicles
