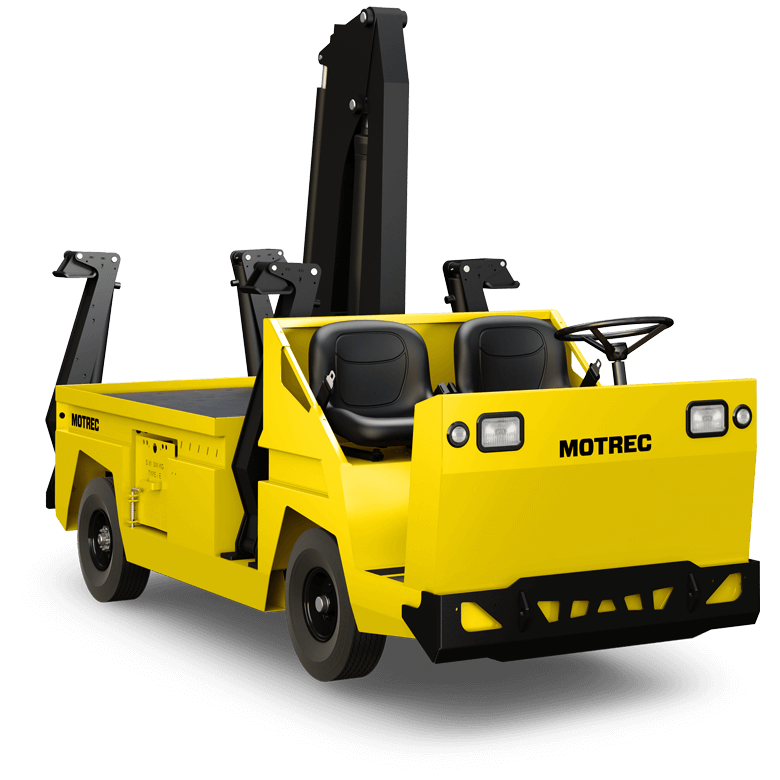

Motrec MX-480 Crane Truck

  • Code: MX - 480 - Crane Truck
  • Passengers: 2
  • Loading Capacity: 2000
  • Towing Capacity: 6000
  • Speed MPH: 10
  • Speed KPH: 16
  • Turning Radius: 150
  • Standards: Vehicle: Conforms to UL 558 and ANSI B56.8. | Crane: Complies with ANSI B 30.5, DIN 15018 and EN12999 Standard
  • Performance Notes: Includes passenger weight of 200 lbs. Specifications and standard equipment are subject to change without notice.
  • Drawbar Pull - Normal: 350
  • Accessories: Bolt-on front bumper, DC/DC converter to equalize battery cells
  • Safety: Deadman seat switch, reverse alarm, horn
  • Seats: Two bucket seats on slide adjusters
  • Steering: Automotive steering wheel
  • Suspension: Dual leaf springs on front and rear
  • Transmission: Direct drive
  • Voltage: 48
  • Wheels: 5.7x8 LRD pneumatic tires
  • Motor: 15 HP brushless AC motor
  • Lights: LED dual headlights & tail/brake lights
  • Indicators: Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
  • Battery: Eight 6V-225AH batteries
  • Body: All-steel unibody construction. Powder Coating.
  • Brakes: Rear hydraulic drum brakes, electromagnetic parking brake with manual hand release, regenerative braking
  • Charger: High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic.
  • Color: Security orange or federal yellow
  • Controller: AC Electronic speed controller
  • Drive Axle: Helical gear differential
  • Deck Height: 31
  • Deck Length: 59.5
  • Deck Width: 45
  • Ground Clearance: 6
  • Vehicle Height: 88
  • Vehicle Length: 130.5
  • Vehicle Width: 47.5
  • Wheel Base: 72
  • Weight Without Batteries: 2200
  • Loading Capacity: 2000
  • Wheels: 5.7x8 LRD pneumatic tires

Confidently lift and haul heavy loads of up to 2,000 lbs. The multi-purpose MX-480 Boom Crane is more efficient than a chain block and can access tight spaces other lift systems cannot, thanks to its compact design, 150″ turning radius and extendable, rear-facing boom crane. Standard features include four hydraulic outriggers for worry-free stability, a high-efficiency AC powertrain and controller, direct drive differential and large drum brakes. A sturdy, easy-to-operate vehicle with excellent maneuverability, traction and braking—even when hauling heavy loads.

Equipment Type
Industrial Vehicles and Personnel Carriers / Utility Vehicles
