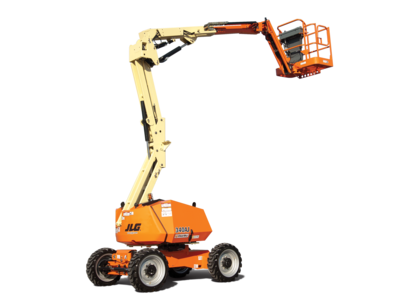

JLG 340AJ

  • Ideal for general contractors, steel erectors, painters, stadium construction and more
  • Environmentally-friendly Tier 4 diesel engine
  • Lower cost of ownership
  • Steel hoods provide added durability
  • Industry-leading terrainability
  • Auxiliary Power: 12 Volts DC
  • Axle Oscillation: 6 in. / 0.15 m
  • Capacity – Fuel Tank: 13 gal. / 49.21 L
  • Capacity – Hydraulic Reservoir: 21 gal. / 77.98 L
  • Drive Speed – 4WD: 3.10 mph / 4.99 km/h
  • Engine Type – Diesel: Kubota D1105 24.8 hp
  • Engine Type – Dual Fuel: PSI/GM 28.7 hp
  • Gradeability – 4WD: 45 %
  • Ground Clearance: 10 in. / 0.25 m
  • Horizontal Jib Rotation: 0 Degrees
  • Horizontal Outreach: 19 ft 11 in. / 6.07 m
  • Jib – Range of articulation: 144 Degrees
  • Machine Height: 6 ft 7 in. / 2.01 m
  • Machine Length: 18 ft 2 in. / 5.54 m
  • Machine Weight: 9700 lb / 4399.85 kg
  • Machine Width: 6 ft 4 in. / 1.93 m
  • Platform Capacity – Unrestricted: 500 lb / 226.80 kg
  • Platform Dimension A: 2 ft 6 in. / 0.76 m
  • Platform Dimension B: 5 ft / 1.52 m
  • Platform Height: 33 ft 10 in. / 10.31 m
  • Platform Height: 33 ft 10 in. / 10.31 m
  • Swing: 355 Degrees
  • Swing Type: Non-Continuous
  • Tailswing: 2 in. / 0.05 m
  • Tire Size: 265/50020 Lug Tread
  • Turning Radius – Outside: 5 ft / 1.52 m
  • Up and Over Height: 17 ft / 5.18 m
Details

On the job site, days are measured by productivity. Your productivity. Which means you need equipment that stands up to the day’s demands. JLG® engine powered articulating boom lifts give you the extra reach you need to work over and around obstacles on the job site. They offer exceptional outreach, high capacity, versatile performance and easy maintenance. Larger work envelopes provide you with access to those hard-to-reach places.

Equipment Type
Articulating Boom Lifts / Aerial Equipment
