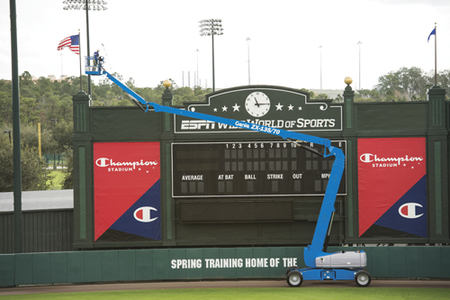

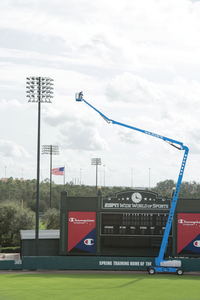

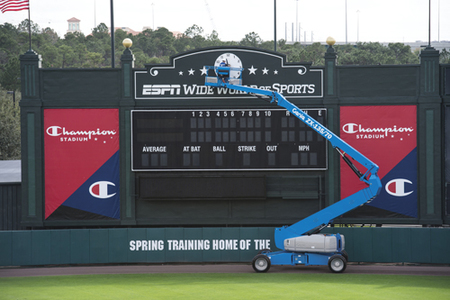

Genie ZX™-135/70

  • 360? continuous rotation turntable and 160?platform rotation for fast, easy positioning
  • Four-wheel drive with full-time positive traction handles rough ground conditions to enhance the smoothness of the ride
  • New X-design drive chassis extends and retracts to provide both stability on the job and a narrow profile for transport
  • Telescoping Jib-Extend™ jib extends from 12 to 20 ft (3.66 to 6.10 m) and provides a 110? vertical range of motion
  • Full-time positive traction 4WD and four wheel brakes
  • The ALC 1000 electronic control system provides menu-based adjustments for machine and component calibration as well as on-screen multi-language system diagnostics
  • Four-wheel steer with front-wheel, rear-wheel, crab- and coordinated- steer options available to provide additional maneuverability
  • Horizontal Reach: 69 ft 9 in (21.26 m)
  • Horizontal Reach – riser extended Horizontal Reach – riser retracted: 59 ft 2 in (18.03 m) 69 ft 9 in (21.26 m)
  • Lift Capacity: 600 lbs (272 kg)
  • Up & Over Clearance: 75 ft 6 in (23.01 m)
  • Up & Over Clearance – riser extended Up & Over Clearance – riser retracted: 75 ft 6 in (23.01 m) 32 ft 6 in (9.91 m)
  • Width – axles extended Width – axles retracted: 16 ft 6 in (5.03 m) 8 ft 2 in (2.49 m)
  • Working Height*: 141 ft (43.15 m)
  • Working Height*: 141 ft (43.15 m)

Ideal for outdoor construction and industrial applications Genie® engine-powered articulating Z™ booms provide lifting versatility with a combination of up, out and over positioning capabilities and outreach that’s second to none.

  • Ideal for outdoor construction and industrial applications
  • Tight turning radius and zero tailswing on most models for maneuvering in confined areas
  • High ground clearance, two- or four-wheel drive and rough terrain features available
  • Quiet diesel engine options deliver excellent power, torque, gradeability and terrainability
  • Full-time positive drive traction system and active oscillating axle (most models) for traction on rough terrain
  • Self-leveling platform rotates 90° to either side on non-jib models
  • Jib boom models available for extra working range
Equipment Type
Articulating Boom Lifts / Aerial Equipment
