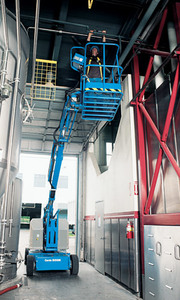

Genie Z™-34/22 N

  • Easy ascent and descent along a vertical plane without retracting or extending the boom
  • 4 ft (1.22 m) jib boom has 139° range of motion allowing positioning above or below horizontal
  • Ideal for confined work spaces at only 58 in (1.47 m) wide with zero tailswing
  • Maximum drive performance of 35% gradeability and 4.0 mph travel speed
  • Motor controller eliminates the need for forward/reverse contactors or speed sensors, reducing complexity and improving reliability
  • Self-leveling platform features 180° powered horizontal rotation for precise positioning and easy operation
  • Rolls through standard double doorways
  • Compact storage length of 13 ft 9 in (4.2 m) and width of 58 in (1.47 m)
  • Automatic hill and ramp braking
  • Horizontal Reach: 22 ft 3 in (6.78 m)
  • Horizontal Reach: 22 ft 3 in (6.78 m)
  • Lift Capacity: 500 lbs (227 kg)
  • Up & Over Clearance: 15 ft 2 in (4.62 m)
  • Up & Over Clearance: 15 ft 2 in (4.62 m)
  • Width: 4 ft 10 in (1.47 m)
  • Working Height*: 40 ft 6 in (12.52 m)
  • Working Height*: 40 ft 6 in (12.52 m)
Details

Genie® DC and Bi-Energy machines offer quiet, emission-free operation in the most sensitive work environments. For industrial applications where the machine must be driven significant distances, the Genie bi-energy system combines the benefits of a 48V DC machine with the versatility of a diesel-powered generator.

  • Up, out and over positioning capabilities for ultimate versatility
  • Tight turning radius and zero tailswing (most models) for easy maneuvering through narrow aisles and standard doors
  • Proportional lift and drive controls allow precise boom positioning and smooth drive performance
  • 48V DC electric drive system available for quiet, emission-free operation in sensitive areas
  • Self-leveling platform rotates 90° to either side on non-jib models
  • Jib boom models available for extra working range
Equipment Type
Aerial Equipment / Articulating Boom Lifts
