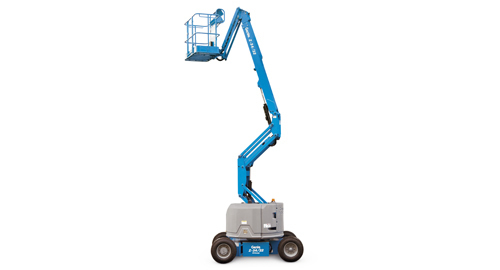

Genie Z™-34/22

  • Versatile 40 ft 6 in (12.52 m) working height, 22 ft 3 in (6.78 m) horizontal reach
  • The direct electric, 48V drive system provides outstanding battery life
  • Motor controller eliminates the need for forward/reverse contactors or speed sensors reducing complexity and improving reliability of the drive system
  • 48V DC machine with diesel powered generator acting as 100 amp battery charger make it ideal for indoor and outdoor applications
  • Self-leveling platform features 180° powered horizontal rotation for precise positioning and easy operation
  • 4 ft (1.2 m) jib features 139° working range
  • Compact 68 in (1.73 m) width
  • Maximum drive performance of 30% gradeability and 4.0 mph travel speed
  • Automatic hill braking and ramp braking
  • Horizontal Reach: 22 ft 3 in (6.78 m)
  • Horizontal Reach: 22 ft 3 in (6.78 m)
  • Lift Capacity: 500 lbs (227 kg)
  • Up & Over Clearance: 15 ft (4.57 m)
  • Up & Over Clearance: 15 ft (4.57 m)
  • Width: 5 ft 8 in (1.73 m)
  • Working Height*: 40 ft 6 in (12.52 m)
  • Working Height*: 40 ft 6 in (12.52 m)

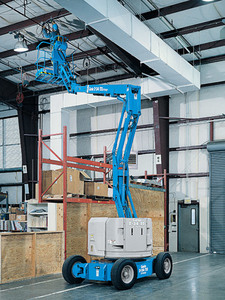

Genie® DC and Bi-Energy machines offer quiet, emission-free operation in the most sensitive work environments. For industrial applications where the machine must be driven significant distances, the Genie bi-energy system combines the benefits of a 48V DC machine with the versatility of a diesel-powered generator.

  • Up, out and over positioning capabilities for ultimate versatility
  • Tight turning radius and zero tailswing (most models) for easy maneuvering through narrow aisles and standard doors
  • Proportional lift and drive controls allow precise boom positioning and smooth drive performance
  • 48V DC electric drive system available for quiet, emission-free operation in sensitive areas
  • Self-leveling platform rotates 90° to either side on non-jib models
  • Jib boom models available for extra working range
Equipment Type
Articulating Boom Lifts / Aerial Equipment
