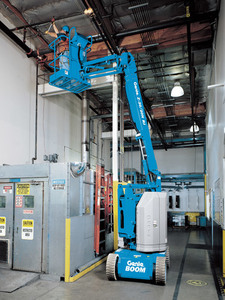

Genie Z™-30/20 N

  • Z-30/20 N RJ optional rotating jib offers 200° of horizontal rotation
  • Drive performance of 35% gradeability and 3.3 mph travel speed
  • Works in tight spaces with zero tailswing and front arm swing in stowed and raised positions
  • 4 ft (1.22 m) jib boom has 139° range of motion allowing positioning above or below horizontal
  • Motor controller eliminates the need for forward/reverse contactors or speed sensors, reducing complexity and improving reliability
  • Standard self-leveling platform features 180° powered horizontal rotation for precise positioning and easy operation
  • 47 in (1.19 m) wide chassis for narrow aisle access
  • Automatic hill and ramp braking
  • Horizontal Reach: 21 ft 5 in (6.53 m)
  • Horizontal Reach: 21 ft 5 in (6.53 m)
  • Lift Capacity: 500 lbs (227 kg)
  • Up & Over Clearance: 12 ft 8 in (3.86 m)
  • Up & Over Clearance: 12 ft 8 in (3.86 m)
  • Width: 3 ft 11 in (1.19 m)
  • Working Height*: 36 ft (11.14 m)
  • Working Height*: 36 ft (11.14 m)
Details

Genie® DC and Bi-Energy machines offer quiet, emission-free operation in the most sensitive work environments. For industrial applications where the machine must be driven significant distances, the Genie bi-energy system combines the benefits of a 48V DC machine with the versatility of a diesel-powered generator.

  • Up, out and over positioning capabilities for ultimate versatility
  • Tight turning radius and zero tailswing (most models) for easy maneuvering through narrow aisles and standard doors
  • Proportional lift and drive controls allow precise boom positioning and smooth drive performance
  • 48V DC electric drive system available for quiet, emission-free operation in sensitive areas
  • Self-leveling platform rotates 90° to either side on non-jib models
  • Jib boom models available for extra working range
Equipment Type
Aerial Equipment / Articulating Boom Lifts
