Westward Industries MAX-EV LSV 2-Passenger

Specs

Key Specifications
Length	176.3 in (448 cm)
Width	57.0 – 61.7 in (145 – 157 cm)
Height	73.2 – 75.2 in (186 – 191 cm)
Wheelbase	120.7 in (307 cm)
Ground Clearance	7.3 – 9.3 in (19 – 24 cm)
Turning Radius	205.9 in (523 cm)
Cargo Bed Dimension	48.4 x 41.3 x 9.4 in (123 x 105 x 24 cm)
Vehicle Curb Weight	1,610 lb (732 kg)
Vehicle Rated Capacity (Std Susp)	1,000 lb (454 kg)
Vehicle Rated Capacity (HD Susp)	1,250 lb (567 kg)
Cargo Capacity (Std Susp)	400 lb (181 kg)
Cargo Capacity (HD Susp)	650 lb (295 kg)
Seating Capacity	2
Towing Capacity	1,500 lb (680 kg)
Tongue Weight	150 lb (68 kg)
Electric Motor	Synchronous AC motor – 48V 10.5kW (14.1hp), dual motor optional
Peak Power Output	14.3kW (19.2hp)
Battery	Lithium-ion (modular/stackable; standard battery heating)
Maximum Speed	25 mph (40 km/h)
Charging Interface	J1772; Level 1 (120V) / Level 2 (240V)
Range 8kWh	35 – 45 miles (56 – 72 km)
Range 16kWh	75 – 85 miles (120 – 135 km)
Range 24kWh	115 – 125 miles (185 – 200 km)
Chassis	Heavy duty 2.5″ tubular steel chassis with anti-corrosion and powder coated finish
Front Suspension	Independent MacPherson strut – 6 in travel
Rear Suspension	Independent trailing arm – 6 in travel
Brakes	Front and rear hydraulic disc with dual circuit master cylinder
Transmission	Single speed, rear wheel drive
Note	Platform specs from MAX-EV LSV family sheet; seating configured as 2-passenger.

Details

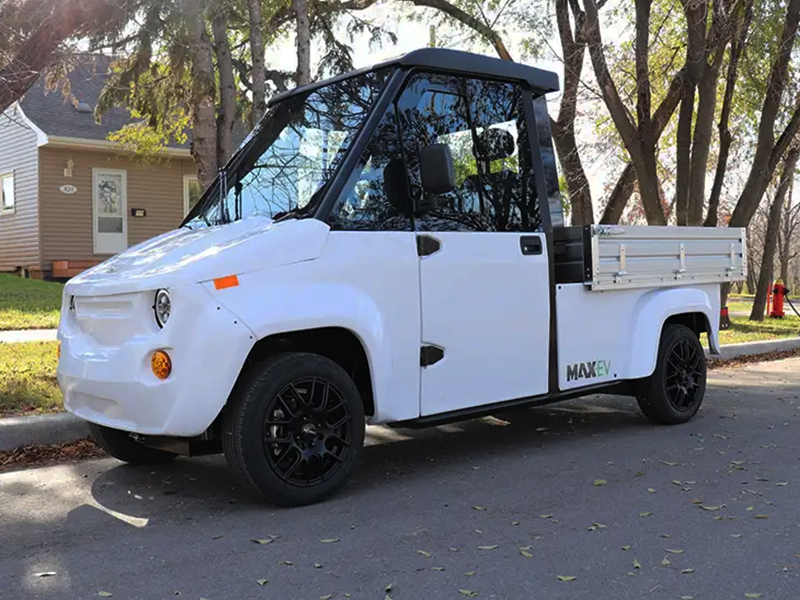

The Westward Industries MAX-EV is a 2-passenger, zero-emission, street-legal low-speed vehicle (LSV) or off-road vehicle (ORV) that features a 1,500 pound towing capacity, with stackable lithium-ion battery options ranging from 8 kWh to 32 kWh (with 40 to 160 miles of range). It is available with a 5-foot flat deck, clamping walls and ladder rack.
