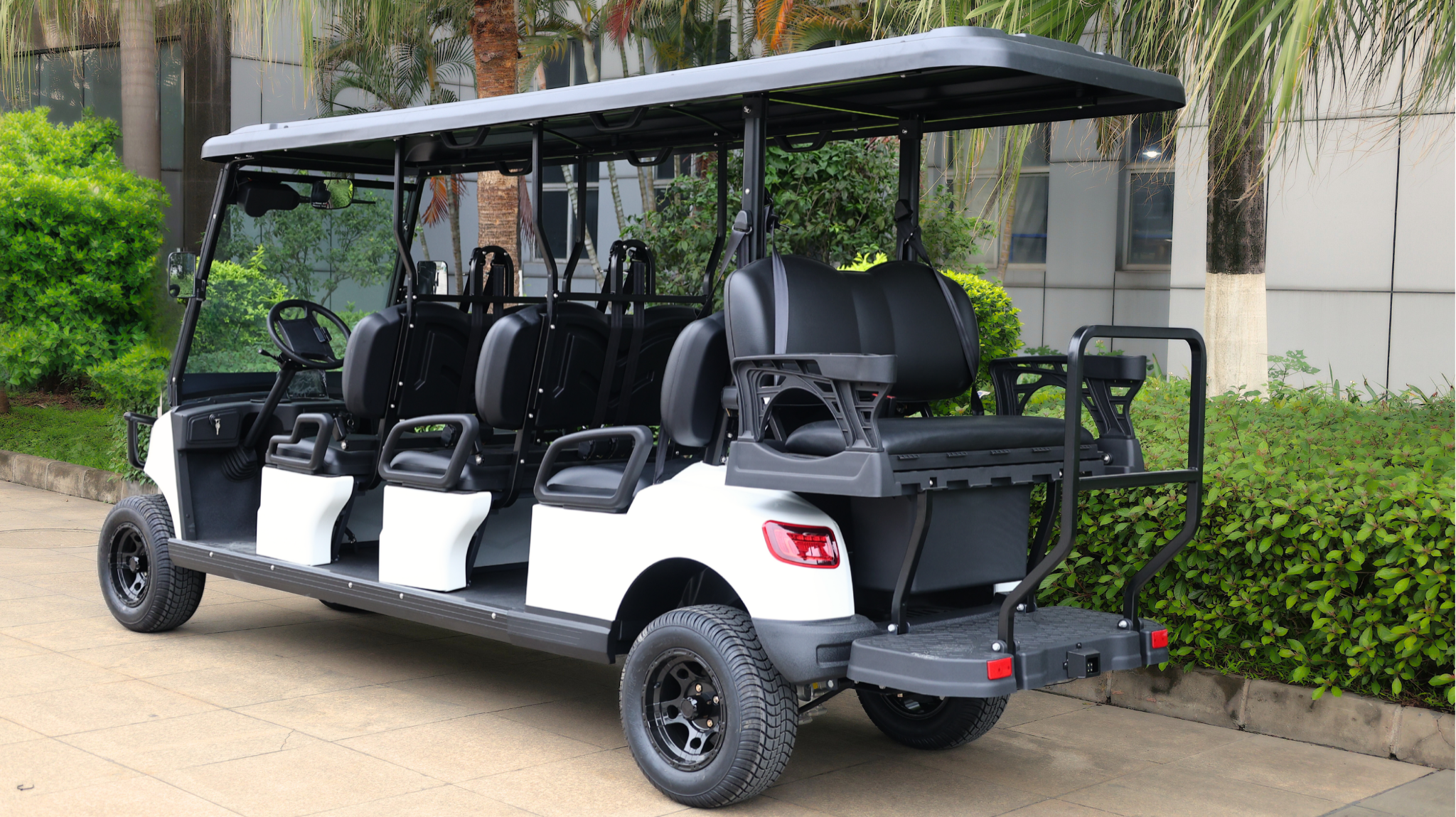

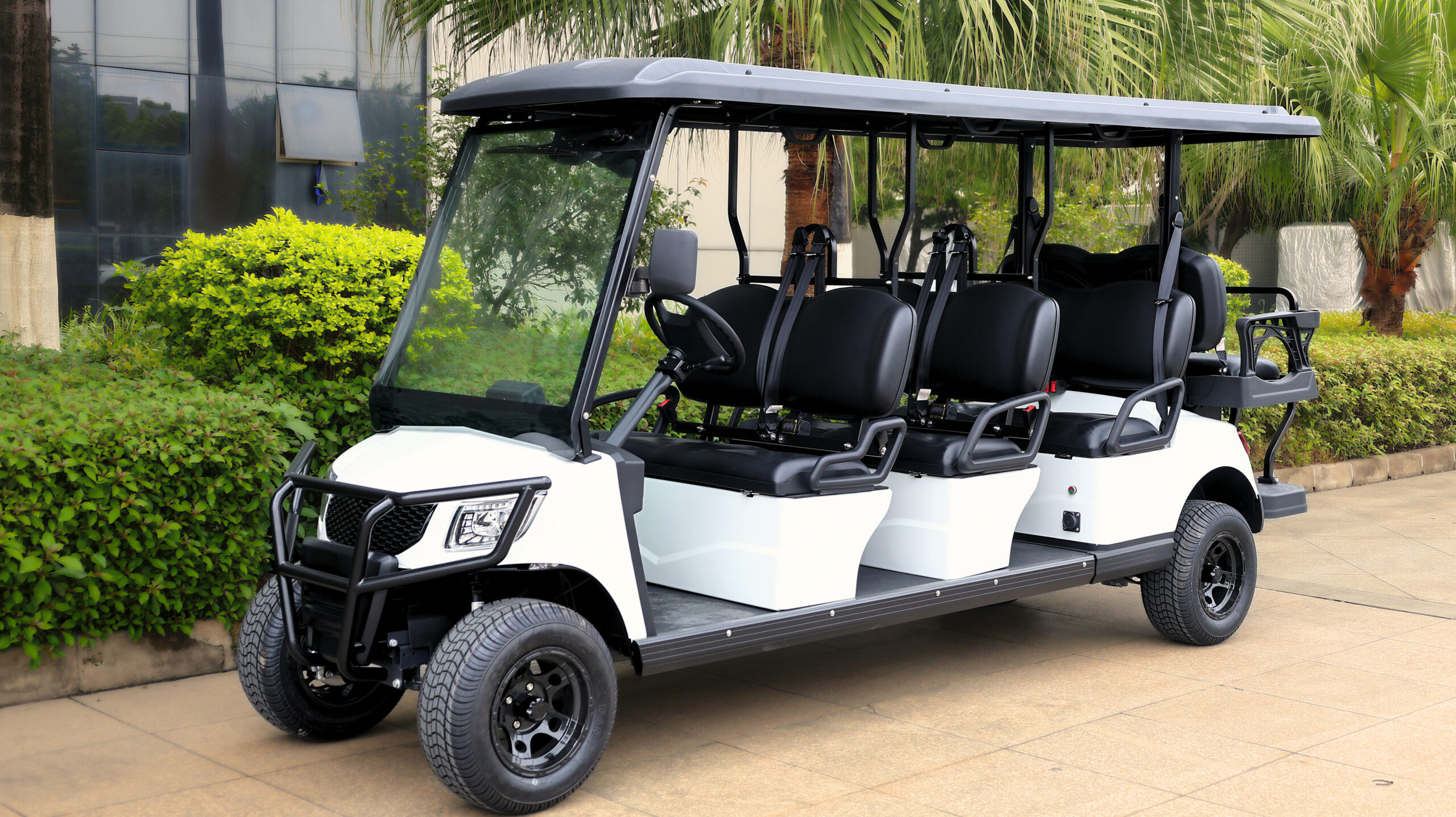

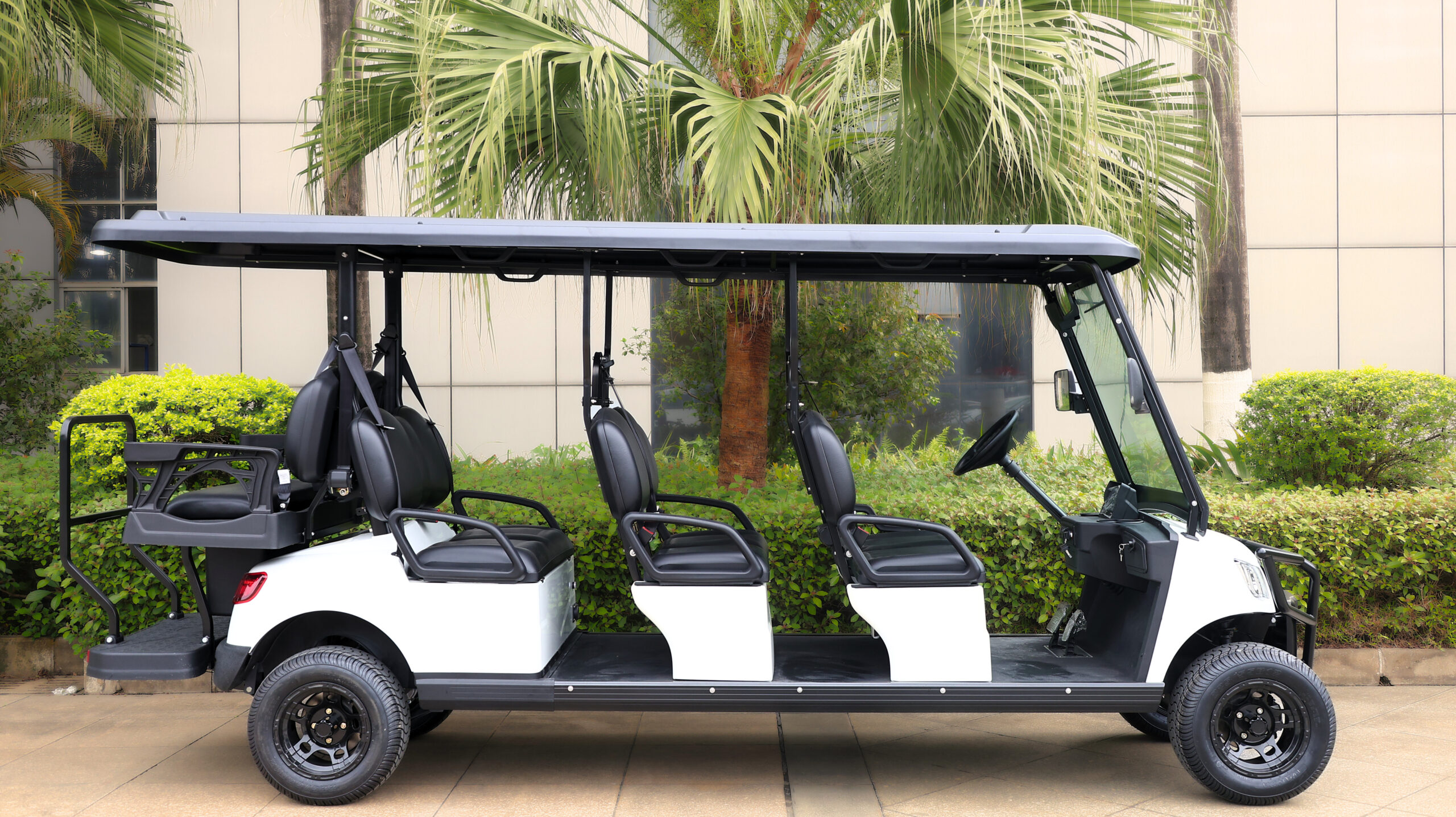

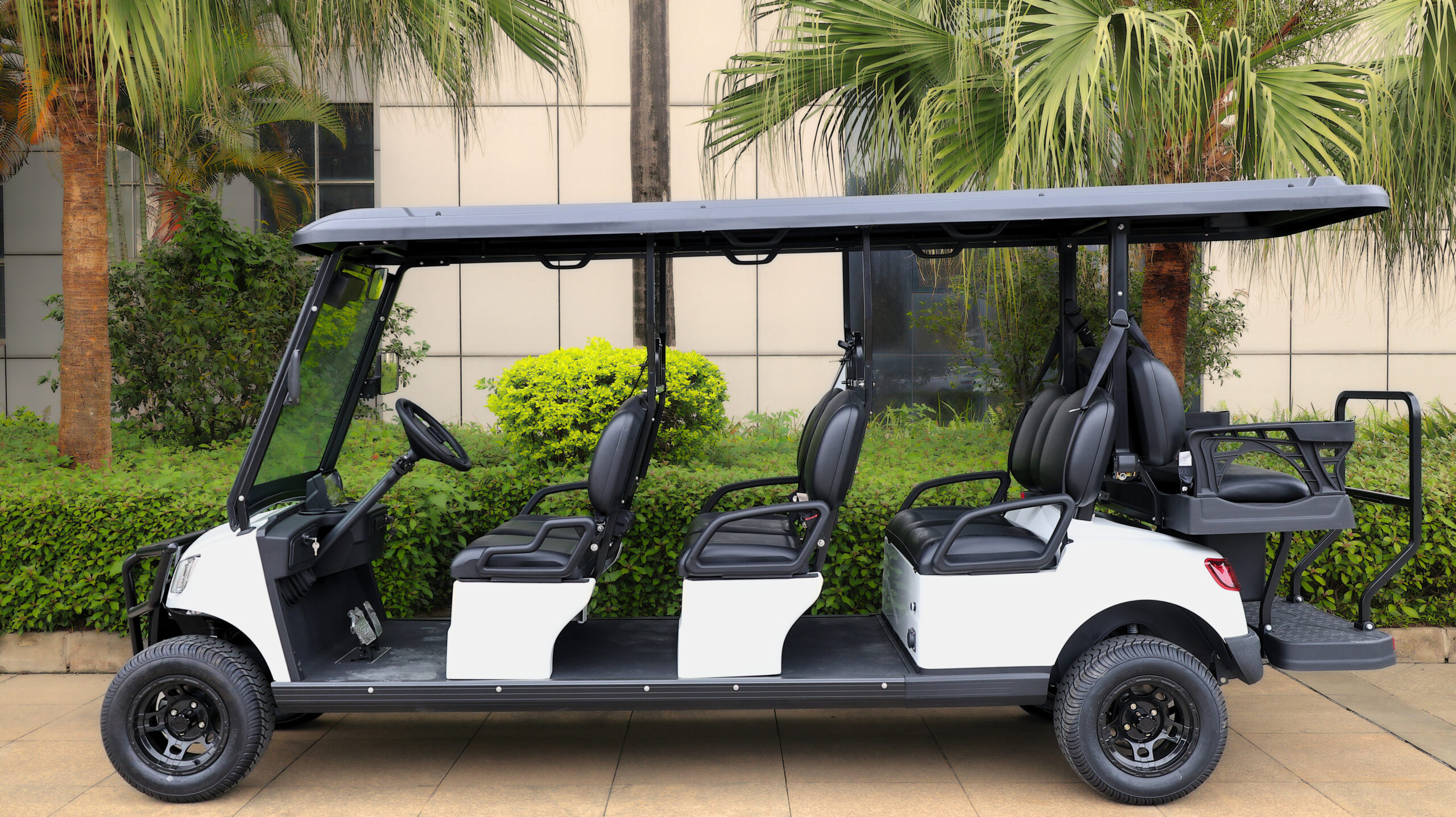

Fusion Passenger 6+2
| Key Specifications | |
|---|---|
| Motor | 5kW |
| Controller | 450 Amp Programmable |
| Drivetrain | 16:1 High Speed Rear Axle |
| Speed | 19 mph (30.4 km/h) |
| Battery | 51.2V 105Ah Marxon Lithium-Ion Pack with Heating Module |
| Charger | Onboard – 20 Amp 120V |
| Battery Level Indicator | Digital Touch Screen |
| Chassis | E-Coat and Powder Coated Steel Frame |
| Suspension | Heavy Duty Coil Over Shocks |
| Ground Clearance | 6.5″ (16.5 cm) with Standard Wheels and Tires |
| Brakes | 4 Wheel Premium Hydraulic Disc Brakes |
| Park Brake | Electro Magnetic, Automatically Actuated Once Vehicle is Stopped, Released when Accelerator Pedal is Engaged |
| Wheels and Tires | Black Aluminum, 225/55-12 |
| Range | 20 mi (32.2km) |
| Turning Radius | 120″ (304.8 cm) |
| Vehicle Capacity | 8 People |
| Overall Dimensions | 169″ x 48″ x 78″ (429.3cm x 121.9cm x 198.1cm) |
Details

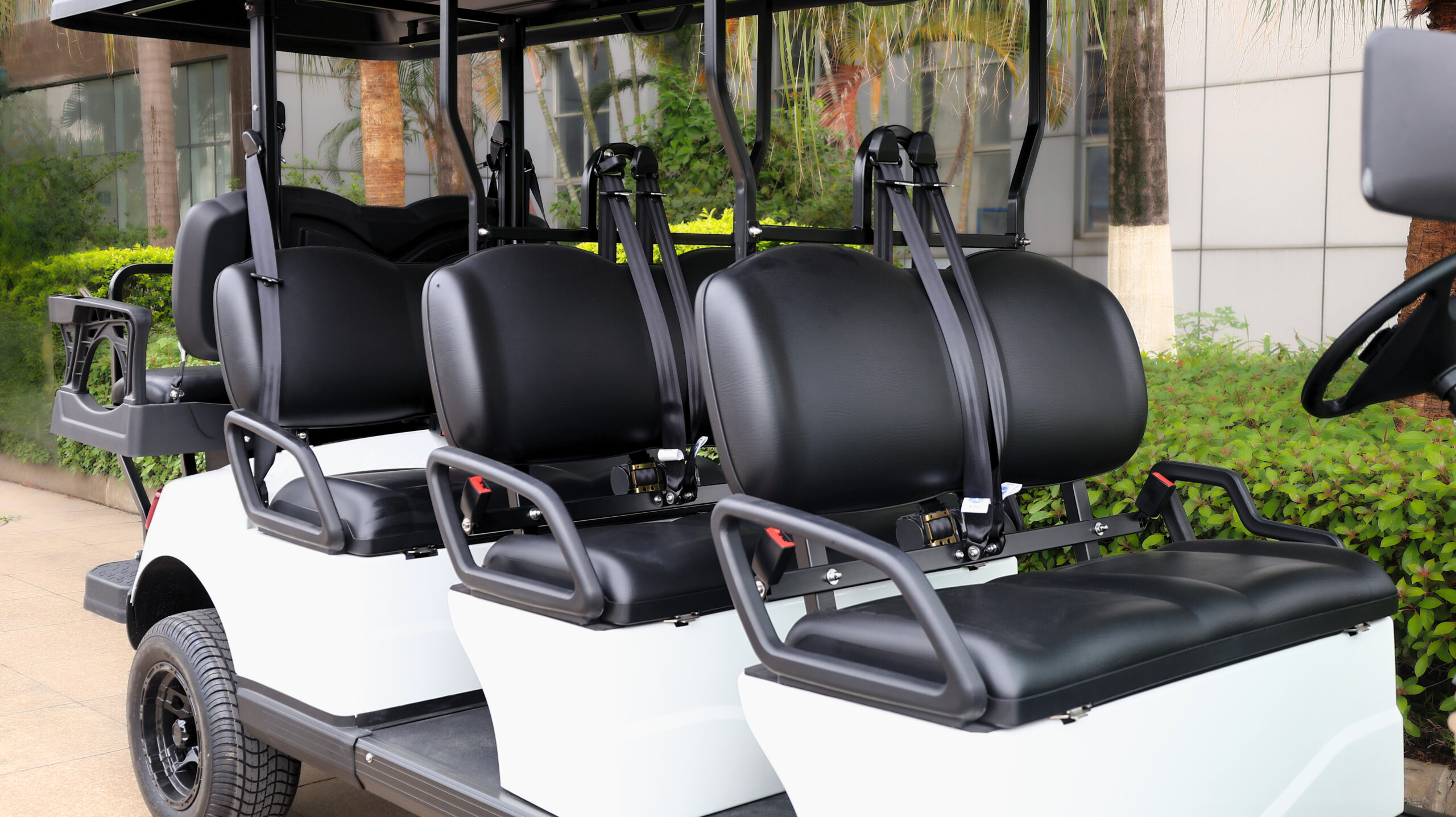

The Fusion 6+2 can be used anywhere you need to efficiently move high volumes of people in localized areas in applications like parking shuttles, hospitality guest transport, employee movement on airports or industrial campuses, or college and university campus tours. When you only need to carry cargo, you can use empty seats or flip down the rear seat to convert it to a flatbed. The 6+2 is a highly efficient and safe way to move up to eight people and is packed with safety and reliability features like three-point seat belts, backup cameras, noise emitters, front brush guards, and a full five-year warranty on our lithium-ion battery. Move high volumes of people efficiently in the Fusion 6+2.
- Equipment Type
- Industrial Vehicles and Personnel Carriers / Low Speed Vehicle / UTVs & LSVs
