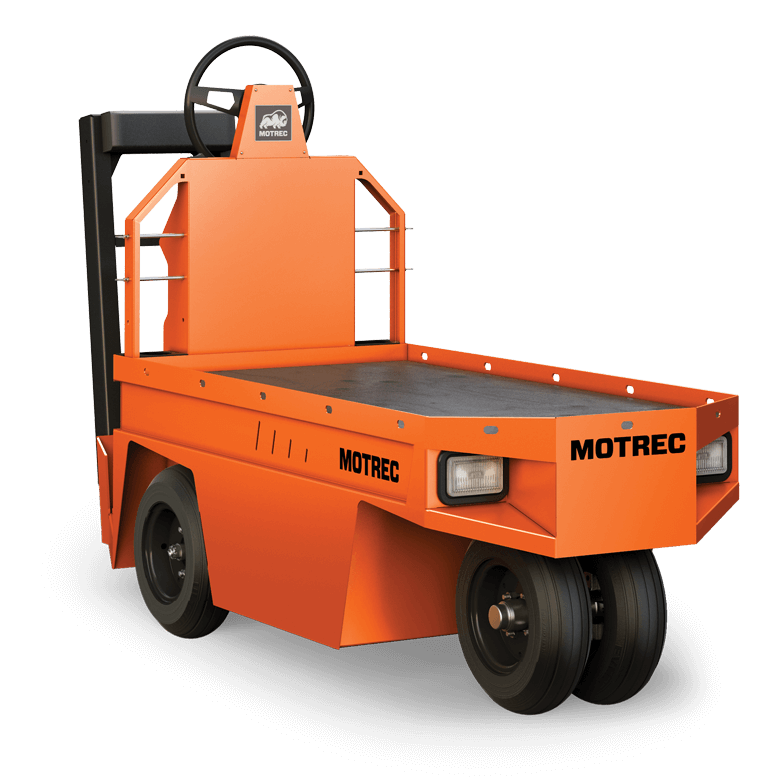

Motrec MS-260 48V

  • Code: MS - 260 - 48V
  • Passengers: 1
  • Loading Capacity: 1750
  • Towing Capacity: 6000
  • Speed MPH: 8
  • Speed KPH: 13
  • Turning Radius: 60
  • Standards: Conforms to UL 558 and ANSI B56.8
  • Drawbar Pull - Normal: 150
  • Accessories: USB charger, 48V/12V converter for 12-volt accessories, backlit and sealed buttons
  • Safety: Reverse alarm, deadman foot switch, horn, emergency stop button, jam-free pedal, anti slip griptape, charging interlock switch
  • Seats: Padded backrest
  • Steering: Automotive steering wheel
  • Suspension: Leaf springs rear suspension system, dual front wheels to ensure the stability
  • Transmission: Direct drive
  • Voltage: 48
  • Wheels: Pneumatic LRC tires
  • Motor: 15 HP brushless AC motor
  • Lights: LED dual headlights
  • Indicators: Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability
  • Battery: Eight 6V-225AH batteries
  • Body: All-steel unibody construction, powder coating
  • Brakes: Self-adjusting H.D. drum brakes, automatic parking brake, regenerative braking
  • Charger: High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic
  • Color: Security orange or federal yellow
  • Controller: Electronic AC speed controller
  • Drive Axle: Helical gear differential
  • Deck Height: 23
  • Deck Length: 59.25
  • Deck Width: 29.25
  • Ground Clearance: 4.5
  • Vehicle Height: 54
  • Vehicle Length: 87
  • Vehicle Width: 30
  • Wheel Base: 43.5
  • Weight Without Batteries: 670
  • Loading Capacity: 1750
  • Wheels: Pneumatic LRC tires
Details

The industry’s most versatile stand-up stock chaser / order picker now offers even more. More capacity: up to 6,000 lbs. for towing and 1,750 lbs. for loads. More standard features: leaf spring suspension, integrated 2-step ladder and loading anchors, USB charger, storage compartments, fully protected electrical components and more. More options: AC powertrain and robust front rubber bumper. Of course, the MS-260 still has a long list of standard driver-friendly features: 59″ deck, dual front wheels, short turning radius, light touch controls, padded backrest, ergonomic driving position, low-step entry…. And as always, it can be fully customized.

Equipment Type
Stock Chasers / Industrial Vehicles and Personnel Carriers
