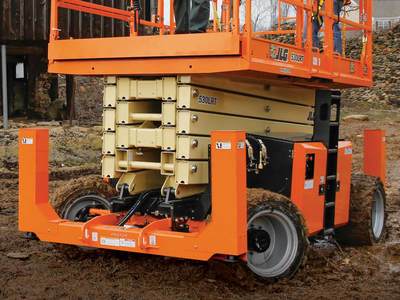

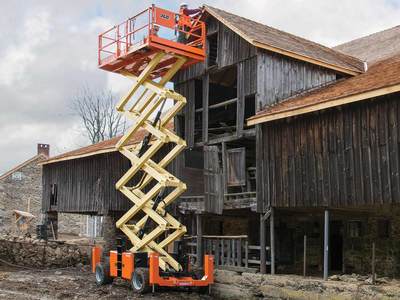

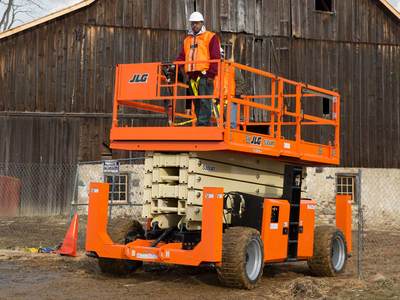

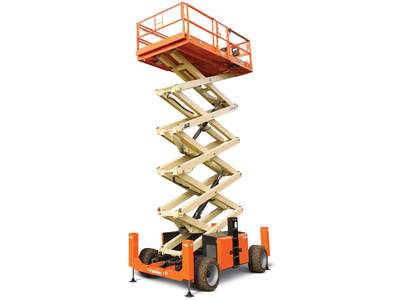

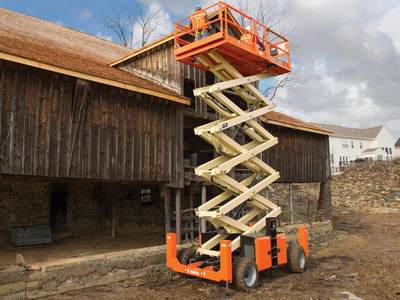

JLG 530LRT

  • Standard 4 ft deck extension provides more space for people and materials
  • Optimized power train for fuel efficiency
  • Standard oscillating axle for enhanced terrainability
  • Batteries: NA
  • Capacity – Fuel Tank: 22 gal. / 83.28 L
  • Capacity – Hydraulic Reservoir: 32 gal. / 121.13 L
  • Drive Speed – Platform Elevated: 0.50 mph / 0.80 km/h
  • Drive Speed – Platform Lowered: 3.50 mph / 5.63 km/h
  • Engine Type – Diesel: Kubota D1305 24.8 hp 18.5 kW
  • Engine Type – Dual Fuel: Kubota WG972 31 hp 23 kW
  • Gradeability: 40 %
  • Ground Clearance: 1 ft / 0.3 m
  • Lift Time: 59 sec.
  • Lower Time: 55 sec.
  • Machine Height: 10 ft 1 in. / 3.07 m
  • Machine Height – Rails Folded: 7 ft 9 in. / 2.36 m
  • Machine Length: 17 ft / 5.18 m
  • Machine Weight: 17000 lb / 7711.07 kg
  • Machine Width: 7 ft 7 in. / 2.31 m
  • Maximum Drive Height: 30 ft / 9.14 m
  • Platform Capacity: 1500 lb / 680.39 kg
  • Platform Capacity – Extension: 500 lb / 226.80 kg
  • Platform Dimension A: 6 ft 2 in. / 1.87 m
  • Platform Dimension B: 13 ft / 3.96 m
  • Platform Extension Length: 4 ft / 1.22 m
  • Platform Height: 53 ft / 16.15 m
  • Platform Height: 53 ft / 16.15 m
  • Platform Height – Lowered: 7 ft / 2.13 m
  • Platform Railing Height: 3 ft 1 in. / 0.94 m
  • Tire Size: 12 x 16.5 FF
  • Turning Radius – Outside: 19 ft 5 in. / 5.92 m
  • Wheelbase: 9 ft 9 in. / 2.97 m
Details

JLG® engine powered scissor lifts are chosen for applications that require more workspace and more lifting capacity. The RT Series and MRT Model both provide a larger work area and generally higher load capacities than boom lifts. Both deliver exceptional terrainability and gradeability, making it easier to maneuver through the roughest job sites.

Equipment Type
Scissor Lifts / Aerial Equipment
