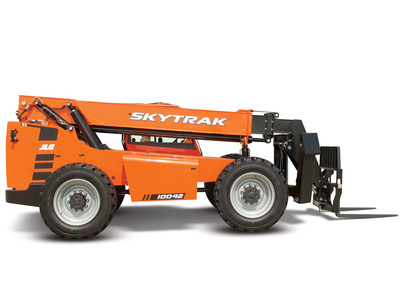

JLG 10042

  Back to Inventory
  • Maximize productivity with improved boom speeds
  • Greater job site versatility—rear counterweight includes an integrated tow hitch
  • Take a virtual tour of the SkyTrak telehandlers
  • New, intuitive single joystick controls all boom functions
  • Increased operator confidence with Stabil-Trak rear axle stabilization system when placing a load
  • Redesigned cab includes new dashboard, integrated arm rest and optional air conditioning
  • Axle-Front: High Bias, Limited Slip
  • Axle-Rear: Oscillating
  • Capacity – Fuel Tank: 35 gal. / 132.49 L
  • Drawbar Pull: 24500 lb / 11113.01 kg
  • Engine Horsepower: 110 hp / 82.06 kW
  • Engine Manufacturer: Cummins
  • Engine Model: QSB3.8L Tier 4 Final
  • Frame Leveling: 10 Degrees
  • Function Pump Type: Var Load Sensing Piston
  • Ground Clearance: 1 ft 6 in. / 0.46 m
  • Lift Capacity at Full Height: 6000 lb / 2721.55 kg
  • Lift Capacity at Max Reach: 6000 lb / 2721.55 kg
  • Load Center: 2 ft / 0.61 m
  • Machine Height: 8 ft 4 in. / 2.54 m
  • Machine Length: 20 ft 8 in. / 6.3 m
  • Machine Width: 8 ft 6 in. / 2.59 m
  • Maximum Engine RPM: 1500 rpm
  • Maximum Lift Capacity: 10000 lb / 4535.92 kg
  • Maximum Lift Height: 42 ft 1 in. / 12.83 m
  • Maximum Reach: 26 ft 7 in. / 8.1 m
  • Operating Vehicle Weight: 27300 lb / 12383.07 kg
  • Outriggers or Stabilizers: Yes
  • Outriggers Up Lift Capacity Full Height: 6000 lb / 2721.55 kg
  • Outriggers Up Lift Capacity Full Reach: 2000 lb / 907.18 kg
  • Outriggers Up Max Forward Reach: 26 ft 7 in. / 8.1 m
  • Outriggers Up Max Lift Height: 42 ft 1 in. / 12.83 m
  • Outside Turning Radius: 14 ft 2 in. / 4.32 m
  • Service Brake Type: Wet Multi-Disc
  • Speed – Maximum Lift: 16 sec.
  • Speed – Maximum Lower: 15 sec.
  • Speed – Maximum Telescope In: 15 sec.
  • Speed – Maximum Telescope Out: 17 sec.
  • Speed – Maximum Travel: 20 mph / 32.19 km/h
  • Tire Size: 400/75-28
  • Transmission – Nr Forward Gears Standard: 4
  • Transmission – Nr Reverse Gears: 3
  • Transmission Type: Powershift
  • Wheelbase: 10 ft / 3.04 m
Details

SkyTrak is the number one selling brand in North America for a reason. These machines deliver what you need, when you need it. And they’ve been redesigned to deliver even more comfort and productivity. SkyTrak telehandlers feature improved boom function speeds, a single joystick for greater multifunction capability, an integrated arm rest and optional air conditioning for increased comfort. Tier 4 Final engines are fuel-efficient with less environmental impact. Plus, engine parts and other serviceable components are easily accessible for quicker maintenance. Get ready to settle in for a full day’s work.

Equipment Type
Aerial Equipment / Telehandlers
