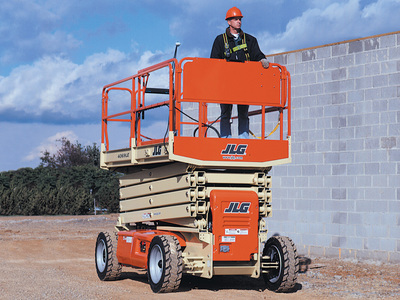

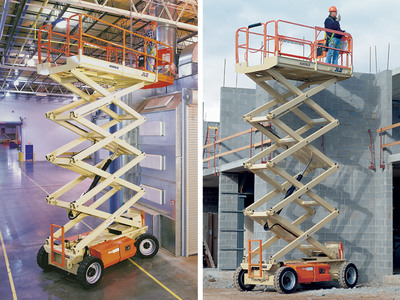

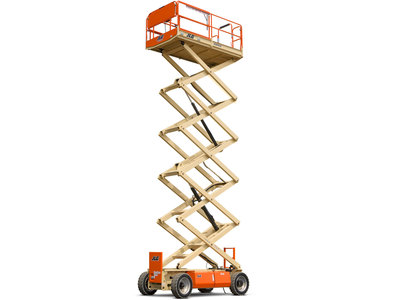

JLG 4069LE

  • With optional hydraulic leveling jacks, uneven terrain is no problem
  • Rugged terrain tires take you anywhere you want to go
  • Double the duty cycle of other scissor lifts so you can stay on the job longer
  • Superior performance on or off slab
  • Batteries: 8 x 6V, 370 amp-hr
  • Brakes: Spring Applied Hyd Released Discs
  • Capacity – Hydraulic Reservoir: 9 gal. / 32.18 L
  • Charger: 21 Amp Automatic SCR
  • Drive Speed – Platform Elevated: 0.40 mph / 0.64 km/h
  • Drive Speed – Platform Lowered: 3 mph / 4.83 km/h
  • Gradeability – 2WD: 35 %
  • Gradeability – 4WD: 45 %
  • Ground Clearance: 8 in. / 0.2 m
  • Hydraulic Pump: Single Section Gear Pump
  • Lift Time: 54 sec.
  • Lower Time: 50 sec.
  • Machine Height: 9 ft 3 in. / 2.81 m
  • Machine Height – Rails Folded: 6 ft 7 in. / 2.01 m
  • Machine Length: 10 ft 4 in. / 3.15 m
  • Machine Weight: 10560 lb / 4789.94 kg
  • Machine Width: 5 ft 9 in. / 1.75 m
  • Maximum Drive Height: 30 ft / 9.14 m
  • Maximum Lift Height: 40 ft / 12.19 m
  • Outriggers or Stabilizers: No
  • Platform Capacity: 800 lb / 362.87 kg
  • Platform Capacity – Extension: 250 lb / 113.40 kg
  • Platform Dimension A: 9 ft 7 in. / 2.92 m
  • Platform Dimension B: 5 ft 5 in. / 1.65 m
  • Platform Extension Length: 3 ft / 0.91 m
  • Platform Height: 40 ft / 12.19 m
  • Platform Height: 40 ft / 12.19 m
  • Platform Height – Lowered: 5 ft 9 in. / 1.75 m
  • Platform Railing Height: 3 ft 8 in. / 1.1 m
  • Tire Size: 240/55 x 17.5 Non-Marking
  • Turning Radius – Outside: 15 ft 6 in. / 4.72 m
  • Wheelbase: 7 ft 7 in. / 2.3 m
  • Working Height: 46 ft / 14.02 m
Details

Enhance your productivity with less recharging and more uptime with JLG® electric scissor lifts. These machines are designed so you have fewer scheduled services, a quieter work area, less dependency on hydraulic oils and zero emissions. Also, the innovative operator controls and compact dimensions make this series extremely mobile.

Equipment Type
Scissor Lifts / Aerial Equipment
