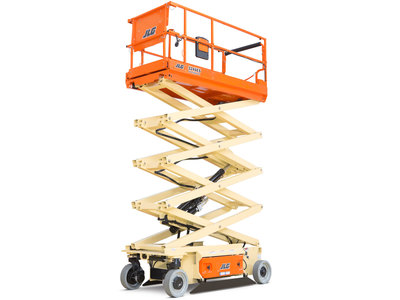

JLG 3246ES

  • Electric drive and integrated components with only two hydraulic hoses and four hydraulic fittings on the entire machine will keep you on the job longer and reduce your operating costs by reducing chances for leaks and service calls
  • Quieter, cleaner operation for a variety of environments
  • Tight turning radius for great maneuverability
  • Delivers 200% more battery life*  *Compared to a competitive model under similar test conditions. Actual results may vary.
  • Batteries: 4 x 6V, 220 amp-hr
  • Brakes: Electric, Friction
  • Capacity – Hydraulic Reservoir: 2 gal. / 6.44 L
  • Charger: 20 amp automatic
  • Drive Speed – Platform Elevated: 0.50 mph / 0.80 km/h
  • Drive Speed – Platform Lowered: 2.50 mph / 4.02 km/h
  • Gradeability: 25 %
  • Ground Clearance: 5 in. / 0.13 m
  • Hydraulic Pump: Fixed Displacement Gear
  • Lift Time: 55 sec.
  • Lower Time: 62 sec.
  • Machine Height: 7 ft 9 in. / 2.36 m
  • Machine Height – Rails Folded: 6 ft 6 in. / 1.97 m
  • Machine Length: 8 ft 3 in. / 2.5 m
  • Machine Weight: 4975 lb / 2256.62 kg
  • Machine Width: 3 ft 10 in. / 1.17 m
  • Maximum Drive Height: 31 ft 9 in. / 9.68 m
  • Maximum Lift Height: 32 ft / 9.68 m
  • Platform Capacity – Extension: 250 lb / 113.40 kg
  • Platform Capacity – Restricted: 1000 lb / 453.59 kg
  • Platform Capacity – Unrestricted: 700 lb / 317.51 kg
  • Platform Dimension A: 8 ft 3 in. / 2.5 m
  • Platform Dimension B: 3 ft 8 in. / 1.12 m
  • Platform Extension Length: 4 ft 2 in. / 1.27 m
  • Platform Height: 31 ft 9 in. / 9.68 m
  • Platform Height: 31 ft 9 in. / 9.68 m
  • Platform Height – Lowered: 4 ft 2 in. / 1.26 m
  • Platform Railing Height: 3 ft 7 in. / 1.1 m
  • Tire Size: 16 x 5 in
  • Turning Radius – Inside: 0 in. / 0 mm
  • Turning Radius – Outside: 7 ft 11 in. / 2.42 m
  • Wheelbase: 6 ft 10 in. / 2.08 m
  • Working Height: 37 ft 9 in. / 11.51 m
Details

Enhance your productivity with less recharging and more uptime with JLG® electric scissor lifts. These machines are designed so you have fewer scheduled services, a quieter work area, less dependency on hydraulic oils and zero emissions. Also, the innovative operator controls and compact dimensions make this series extremely mobile.

Equipment Type
Scissor Lifts / Aerial Equipment
