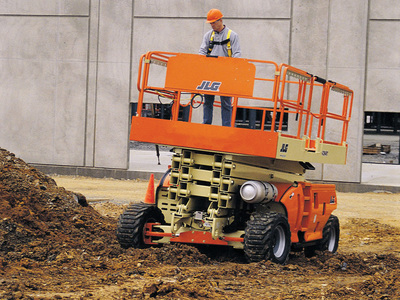

JLG 260MRT

  • Large work platform and 1,250 lb platform capacity so you can be more productive
  • Narrow 69 in chassis fits into spaces other scissor lifts can’t
  • Standard four wheel drive and 35 percent gradeability keep you going
  • Brakes: Spring Applied, Hydraulically Released
  • Capacity – Hydraulic Reservoir: 15 gal. / 56.78 L
  • Drive Speed – Platform Elevated: 0.50 mph / 0.80 km/h
  • Drive Speed – Platform Lowered: 3.50 mph / 5.63 km/h
  • Engine Model: Kubota 24.5 hp (Dual Fuel)
  • Engine Type – Diesel (HRC): Kubota 23.5 hp (Diesel)
  • Fuel Tank Capacity – Diesel: 8 gal. / 28.39 L
  • Gradeability – 4WD: 35 %
  • Ground Clearance: 8 in. / 0.2 m
  • Lift Time: 27 sec.
  • Lower Time: 21 sec.
  • Machine Height: 7 ft 10 in. / 2.37 m
  • Machine Height – Rails Folded: 6 ft 5 in. / 1.96 m
  • Machine Length: 8 ft 9 in. / 2.67 m
  • Machine Weight: 7360 lb / 3338.44 kg
  • Machine Width: 5 ft 9 in. / 1.75 m
  • Maximum Drive Height: 26 ft / 7.92 m
  • Platform Capacity: 1250 lb / 566.99 kg
  • Platform Capacity – Extension: 300 lb / 136.08 kg
  • Platform Dimension A: 5 ft 5 in. / 1.65 m
  • Platform Dimension B: 8 ft 6 in. / 2.59 m
  • Platform Extension Length: 4 ft / 1.22 m
  • Platform Height: 26 ft / 7.92 m
  • Platform Height: 26 ft / 7.92 m
  • Platform Height – Lowered: 4 ft 2 in. / 1.26 m
  • Platform Railing Height: 3 ft 8 in. / 1.1 m
  • Tire Size: 26 x 12 Lug Tread
  • Turning Radius – Outside: 14 ft 5 in. / 4.39 m
  • Wheelbase: 6 ft 6 in. / 1.98 m
  • Working Height: 32 ft / 9.75 m
Details

JLG® engine powered scissor lifts are chosen for applications that require more workspace and more lifting capacity. The RT Series and MRT Model both provide a larger work area and generally higher load capacities than boom lifts. Both deliver exceptional terrainability and gradeability, making it easier to maneuver through the roughest job sites.

Equipment Type
Scissor Lifts / Aerial Equipment
