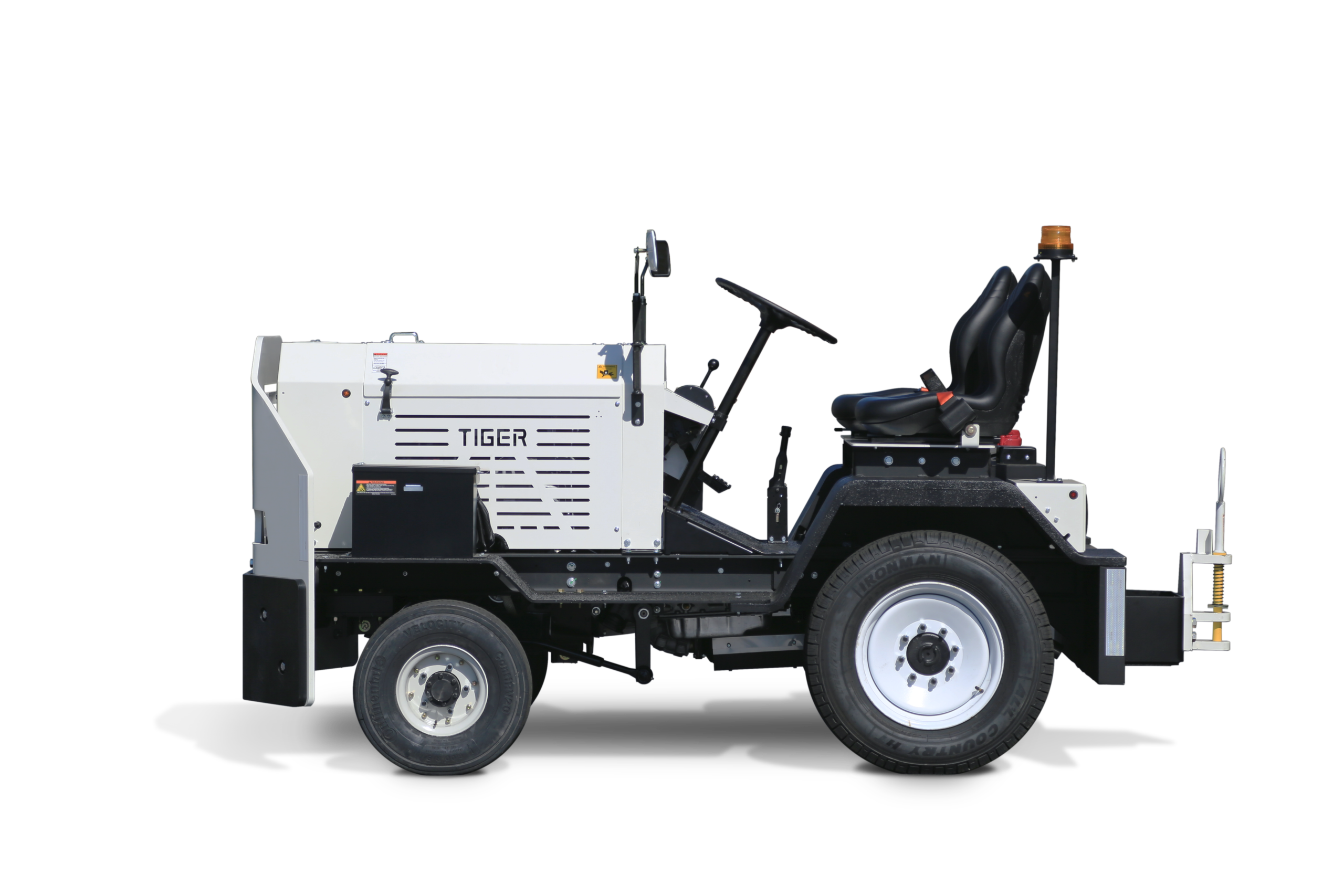

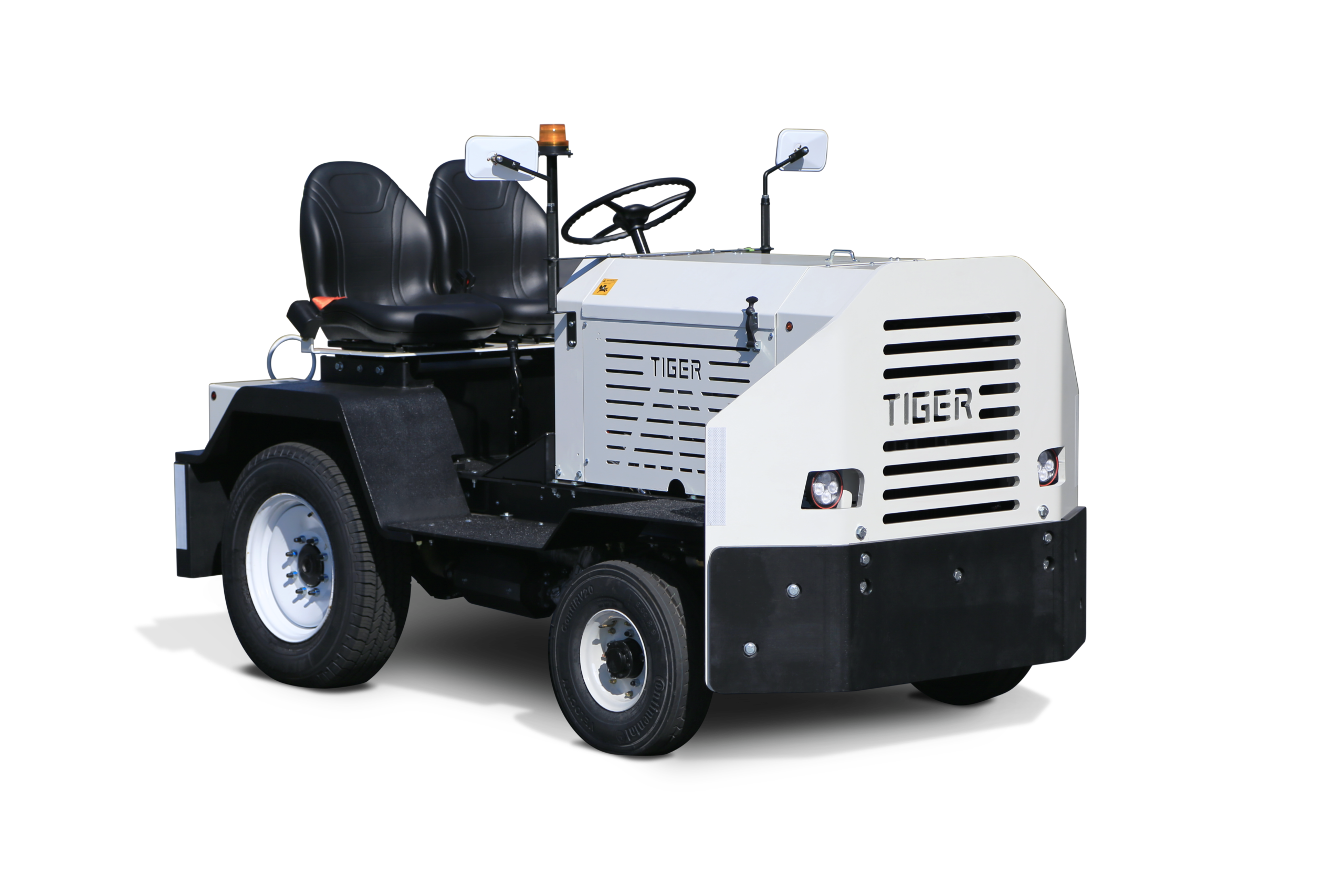

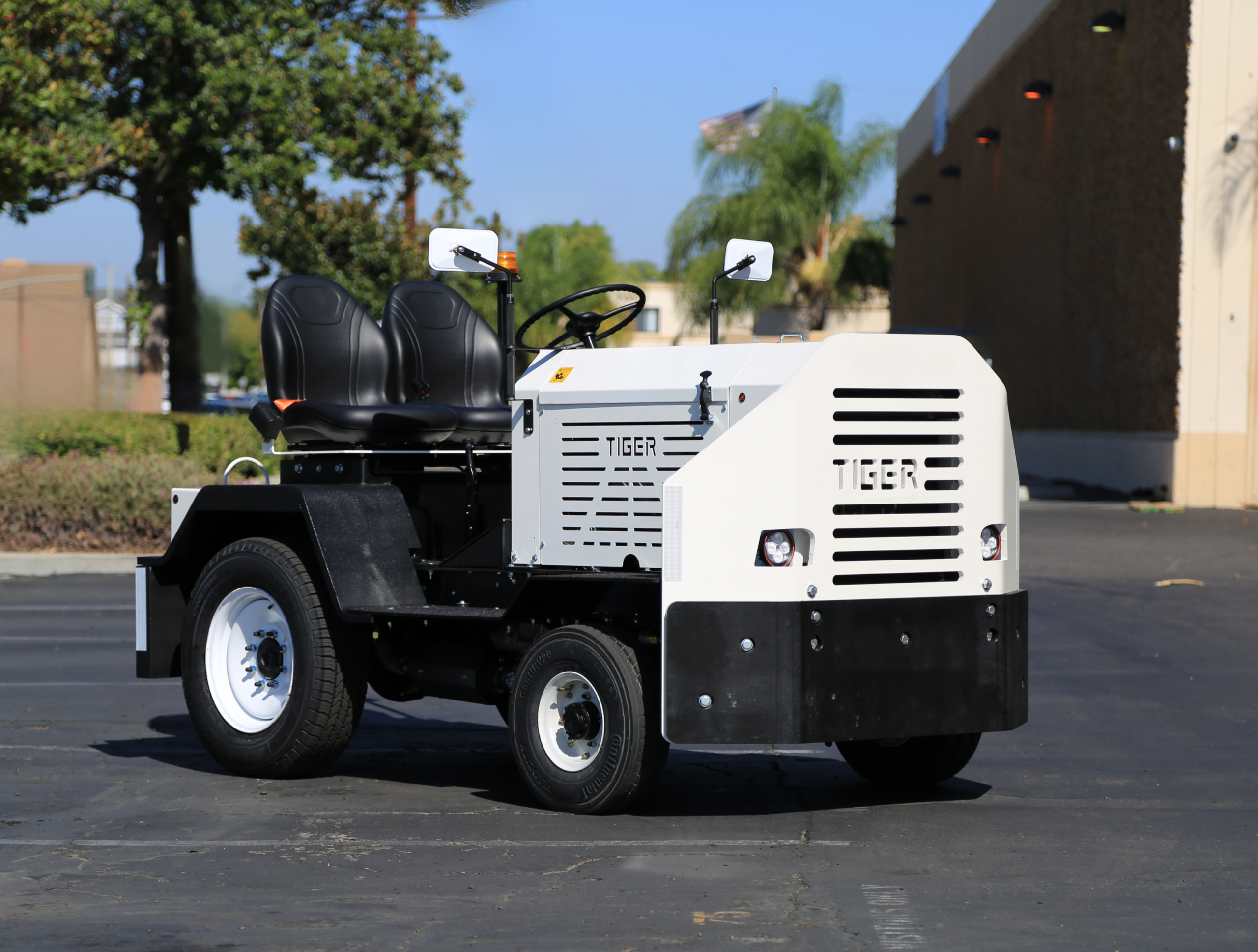

Tiger Gas & LPG
| Key Specifications | |
|---|---|
| Motor | Kubota WG2503/GM-PCS 4LHD transmission |
| Drive System Type | Gasoline / LPG / Export Diesel |
| Top Speed | 15 mph (24 kmh) |
| Final Drive | 14:1 |
| Ground Clearance | 5 in (12.7 cm) |
| Hitch Towing Rating | Up to 60,000 lbs (27,000 kg) |
| Overall Vehicle Size | 113 x 55.5 x 61 in (287 x 141 x 155 cm) |
| Person Capacity | 2 |
| Wheelbase | 58 in (147.3 cm) |
| Brakes | Rear Disc (Quad Caliper) |
| Parking Brake | Hand-operated Parking Brake (Optional Electric Actuated Parking Brake) |
| Instrumentation | BDI, w/ hour meter, park brake indicator |
| Lighting | Dual LED headlights, LED brake/tail lights, LED reverse lights, LED marker lights |
| Other Standard Features | Gray vinyl ergonomic bucket seats |
| Front Suspension | Leaf Springs |
| Rear Suspension | Solid w/ cushion isolators |
Details
Tiger Gas tow tractors have a 100% steel body-on-frame design with bolt-on chassis components, and run on ICE propulsion combining the durability, serviceability and familiarity that crews depend on across aviation, manufacturing, ports, warehouses and more. Tiger is available in gasoline, LPG and export diesel configurations — giving operations the flexibility to match their existing fuel infrastructure and regional requirements. Thanks to its minimal emissions, LPG is a popular choice for indoor environments such as hangars, warehouses and manufacturing facilities where air quality standards must be maintained.
Additionally, when you’re ready to go electric, easily convert your Tiger Gas ICE powertrain to lithium-ion electric with our Tiger Repower kit. The Tiger Gas and Tiger Li-Ion share the same chassis, controls and operator experience so switching is straightforward, on your timeline.
