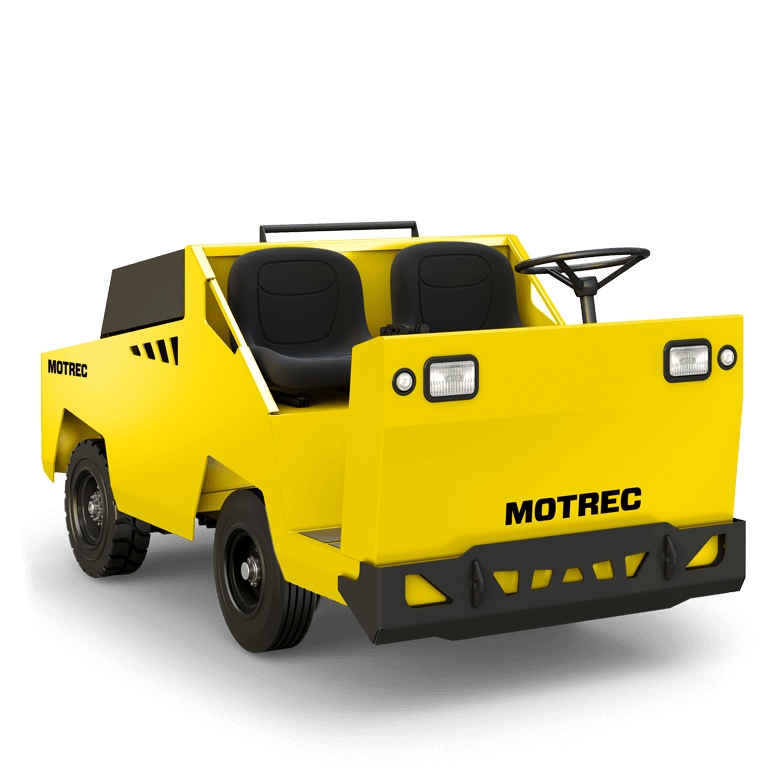

Motrec MT-440 48V

  • Code: MT - 440 - 48V
  • Passengers: 2
  • Loading Capacity: 500
  • Towing Capacity: 20000
  • Speed MPH: 10
  • Speed KPH: 16
  • Turning Radius: 108
  • Standards: Conforms to requirements for type E, UL 583, ANSI B56.9
  • Performance Notes: Specifications and standard equipment are subject to change without notice
  • Drawbar Pull - Normal: 400
  • Accessories: 48V/12V converter for 12-volt accessories
  • Safety: Reverse alarm, deadman seat switch, horn
  • Seats: Two bucket seats on slide adjusters
  • Steering: Automotive steering wheel
  • Suspension: Front leaf spring suspension with dual shock absorbers, rear leaf spring suspension
  • Transmission: Direct drive with ground-tooth gears
  • Voltage: 48
  • Wheels: 500x8 solid softy rubber wheels on split rims
  • Motor: 15 hp Fan cooled AC motor
  • Lights: LED dual headlights & tail/brake lights
  • Indicators: Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
  • Battery: No battery included
  • Body: All-steel unibody construction
  • Brakes: Four-wheel hydraulic brakes, regenerative braking
  • Charger: No charger included
  • Color: Security orange or federal yellow
  • Controller: AC Electronic speed controller
  • Drive Axle: Helical gear differential
  • Battery Height: 24
  • Battery Length: 21
  • Battery Width: 43
  • Deck Height: 28
  • Deck Length: 19
  • Deck Width: 46
  • Vehicle Height: 45
  • Vehicle Length: 95
  • Vehicle Width: 45
  • Wheel Base: 44
  • Battery Weight Max: 2600
  • Battery Weight Min: 2600
  • Weight Without Batteries: 1750
  • Loading Capacity: 500
  • Wheels: 500x8 solid softy rubber wheels on split rims
Details

The MT-440 is the latest generation of heavy-duty tow tractors. Behind its stylish, compact design is a highly efficient AC direct-drive powertrain, plenty of power to haul 20,000-lb. loads over long distances, and an oversized industrial battery to lengthen running time. Features like tight turning radius, rear battery positioning and shock-dampening suspension deliver exceptional maneuverability, stability and comfort. This highly robust, low-maintenance two-seater is built to last—from bolt-on bumper to bumper.

Equipment Type
Industrial Vehicles and Personnel Carriers / Tugs Trams and Trailers
