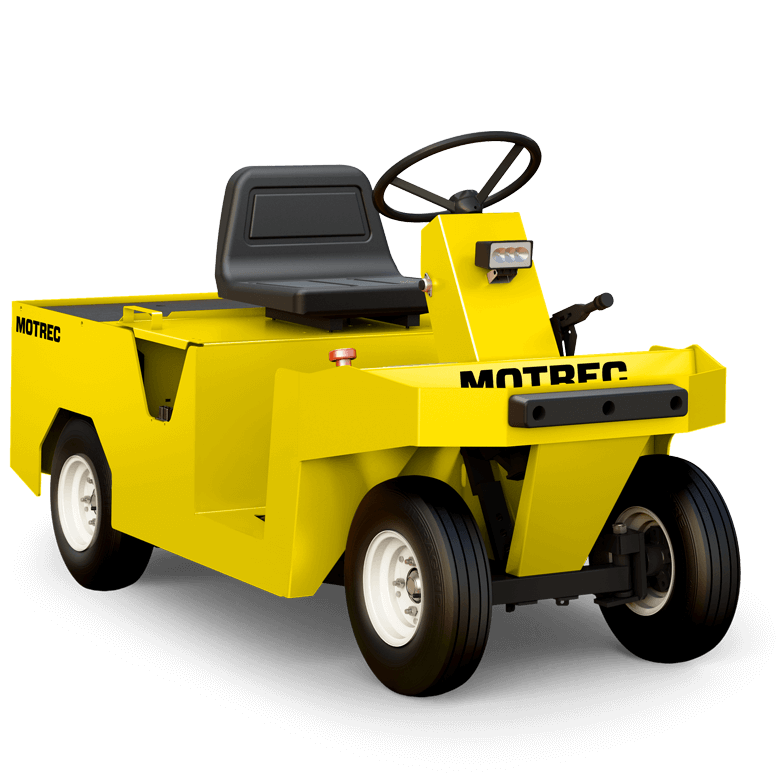

Motrec MT-290 36V HD

  • Code: MT - 290 - 36V HD
  • Passengers: 1
  • Loading Capacity: 700
  • Towing Capacity: 10000
  • Speed MPH: 8
  • Speed KPH: 14
  • Turning Radius: 77
  • Standards: Conforms to requirements for type E, UL 583, ANSI B56.9
  • Performance Notes: Includes passenger weight of 200 lbs. Specifications and standard equipment are subject to change without notice.
  • Accessories: 36V/12V converter for 12-volt accessories, bolt-on front bumper
  • Safety: Reverse alarm, deadman seat switch, horn
  • Seats: Bucket seat on slide adjusters
  • Steering: Automotive steering wheel
  • Suspension: Dual leaf springs on rear
  • Transmission: Direct drive
  • Voltage: 36
  • Wheels: 4.8x8 LRC pneumatic tires
  • Motor: Brushless AC motor, 7.5 HP Intermittent, 10 HP Max
  • Lights: LED headlight & tail/brake light
  • Indicators: Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
  • Battery: No battery included
  • Body: All-steel unibody construction
  • Brakes: Rear hydraulic drum brakes, regenerative braking
  • Charger: No charger included
  • Color: Security orange or federal yellow
  • Controller: AC Electronic speed controller
  • Drive Axle: Helical gear differential
  • Battery Height: 17.5
  • Battery Length: 16
  • Battery Width: 35.2
  • Deck Height: 25
  • Deck Length: 21
  • Deck Width: 38
  • Vehicle Height: 44
  • Vehicle Length: 78
  • Vehicle Width: 38
  • Wheel Base: 52
  • Loading Capacity: 700
  • Wheels: 4.8x8 LRC pneumatic tires
Details

Built on our popular MP-250 base, the more powerful MT-290 is equal parts modern workhorse and mobile workshop. Its efficient AC motor offers impressive acceleration, even when towing loads of 10,000 lbs. Its all-steel construction and four-wheel vibration dampening design ensure a smooth and stable ride even on bumpy surfaces. This agile, round-the-clock tow tractor effortlessly maneuvers through challenging areas, including doorways. A multi-purpose tugger boasting a long-lasting industrial battery with easy under-the-seat access.

Equipment Type
Industrial Vehicles and Personnel Carriers / Tugs Trams and Trailers
