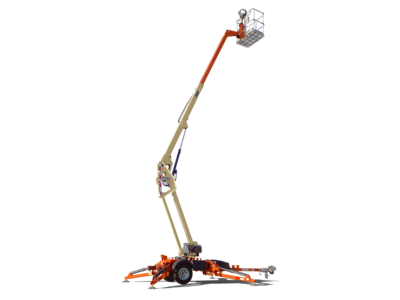

JLG T350

  • Gasoline engine or 24V DC electric power
  • Standard air and water lines to platform
  • Accessory Mounting Tray accommodates your generator, air compressor or pressure washer
  • Batteries: 4 x 6V 220 amp-hr
  • Capacity – Hydraulic Reservoir: 4 gal. / 15.14 L
  • Frame Leveling: 11 Degrees
  • Ground Clearance: 1 ft 2 in. / 0.36 m
  • Ground Entry Height: 10 in. / 0.25 m
  • Horizontal Outreach: 20 ft 2 in. / 6.15 m
  • Jib – Range of articulation: 0 Degrees
  • Leveling Capability: 11 Degrees
  • Machine Height: 6 ft 6 in. / 1.98 m
  • Machine Length: 21 ft 9 in. / 6.63 m
  • Machine Weight: 3400 lb / 1542.21 kg
  • Machine Width: 4 ft 9 in. / 1.45 m
  • Outrigger Footprint Length: 11 ft 7 in. / 3.53 m
  • Outrigger Footprint Width: 10 ft 5 in. / 3.18 m
  • Outriggers or Stabilizers: Yes
  • Platform Capacity: 500 lb / 226.80 kg
  • Platform Dimension A: 2 ft 6 in. / 0.76 m
  • Platform Dimension B: 4 ft / 1.22 m
  • Platform Height: 34 ft 5 in. / 10.49 m
  • Platform Height: 34 ft 5 in. / 10.49 m
  • Swing: 410 Degrees
  • Swing Type: Non-Continuous
  • Tire Size: 205/75 R14 Pnuematic
  • Towing Speed Rating: 65 mph / 104.61 km/h
  • Up and Over Height: 15 ft / 4.57 m
Details

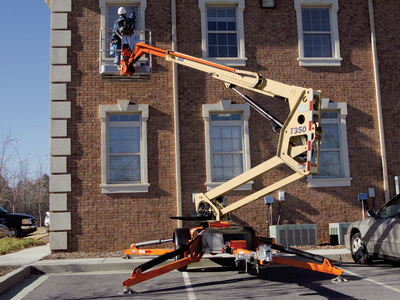

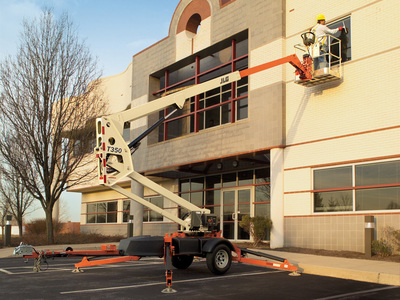

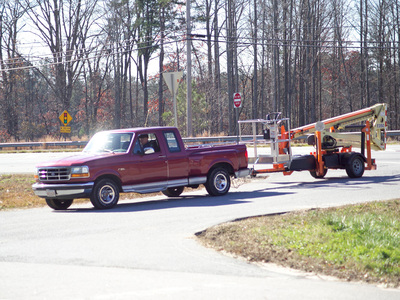

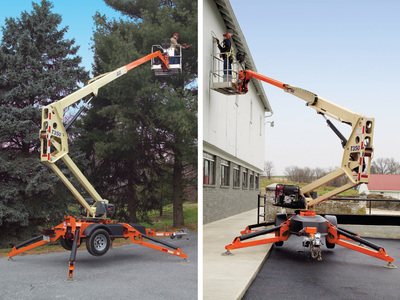

The Tow-Pro® Series – our exclusive line of towable boom lifts – lets you tackle the same jobs as other JLG® electric or gas-powered boom lifts, but with an easier option for transportation. You have the choice of a 24V DC electric or 9 HP gas-powered engine. And with the standard combination hitch, industry-leading 65 mph towing speed and hydraulic auto-leveling outriggers, you can have this extremely portable lift brought to the job site and working in no time. Whether you need it for tree trimming, decorating, construction, exterior painting or maintenance tasks, a Tow-Pro is great for your everyday needs.

Equipment Type
Aerial Equipment / Telescopic Boom Lifts
