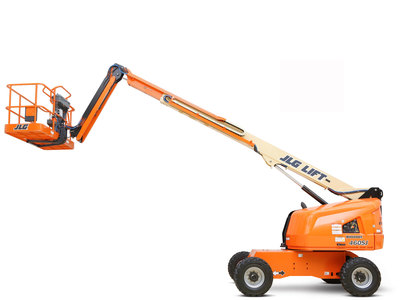

JLG 460SJ

  • New hood design provides more durability and serviceability
  • Larger capacity at 600 lb
  • Improved multifunction capability increases productivity
  • Auxiliary Power: 12 Volts DC
  • Capacity – Fuel Tank: 22 gal. / 83.28 L
  • Capacity – Hydraulic Reservoir: 36 gal. / 136.27 L
  • Drive Speed – 4WD: 4.50 mph / 7.24 km/h
  • Engine Type – Diesel: Deutz D2.9L4 Tier 4 Final 49 hp 36.4 kW
  • Engine Type – Dual Fuel: GM Vortec 3000 MPFI 82 hp 61 kW
  • Gradeability – 4WD: 45 %
  • Ground Clearance: 1 ft / 0.31 m
  • Horizontal Jib Rotation: 0 Degrees
  • Horizontal Outreach: 39 ft / 11.89 m
  • Jib – Range of articulation: 130 Degrees
  • Machine Height: 8 ft 1 in. / 2.47 m
  • Machine Length: 29 ft 3 in. / 8.91 m
  • Machine Weight: 16600 lb / 7529.63 kg
  • Machine Width: 7 ft 7 in. / 2.31 m
  • Platform Capacity – Unrestricted: 600 lb / 272.16 kg
  • Platform Dimension A: 3 ft / 0.91 m
  • Platform Dimension B: 8 ft / 2.44 m
  • Platform Height: 46 ft / 14.02 m
  • Platform Height: 46 ft / 14.02 m
  • Swing: 360 Degrees
  • Swing Type: Continuous
  • Tire Size: 12 x 16.5 Pneumatic Lug Tread Tires
  • Transport Length: 29 ft 3 in. / 8.91 m
  • Turning Radius – Outside: 15 ft 11 in. / 4.84 m
Details

When you’ve got to work around different angles and crowded job sites, you need the right piece of equipment that gets you straight to the source. JLG engine powered telescopic boom lifts are ideal for work that requires maximum horizontal and vertical outreach. Our telescopic boom lifts take you right where you need to work while providing you with the height and capacity you need.

Equipment Type
Aerial Equipment / Telescopic Boom Lifts
