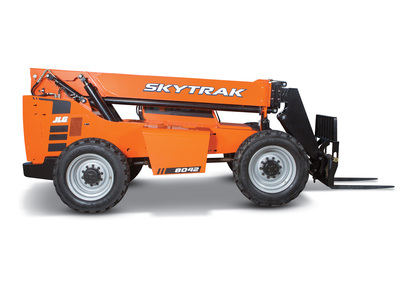

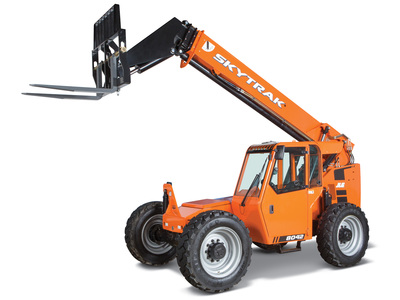

JLG 8042

  • Maximize productivity with improved boom speeds
  • Increased operator confidence with Stabil-Trak rear axle stabilization system when placing a load
  • New, intuitive single joystick controls all boom functions
  • Redesigned cab includes new dashboard, integrated arm rest and optional air conditioning
  • Greater job site versatility—rear counterweight includes an integrated tow hitch
  • Axle-Front: High Bias, Limited Slip
  • Axle-Rear: Oscillating
  • Capacity – Fuel Tank: 35 gal. / 132.49 L
  • Drawbar Pull: 25000 lb / 11339.81 kg
  • Engine Horsepower: 110 hp / 82.06 kW
  • Engine Manufacturer: Cummins
  • Engine Model: QSF3.8L Tier 4 Final
  • Frame Leveling: 10 Degrees
  • Function Pump Type: Var Load Sensing Piston
  • Ground Clearance: 1 ft 6 in. / 0.46 m
  • Lift Capacity at Full Height: 6000 lb / 2721.55 kg
  • Lift Capacity at Max Reach (Stabs Up): 2200 lb / 997.90 kg
  • Load Center: 2 ft / 0.61 m
  • Machine Height: 8 ft 3 in. / 2.52 m
  • Machine Length: 19 ft / 5.79 m
  • Machine Width: 8 ft 3 in. / 2.52 m
  • Maximum Engine RPM: 1500 rpm
  • Maximum Lift Capacity: 8000 lb / 3628.74 kg
  • Maximum Lift Height: 41 ft 11 in. / 12.78 m
  • Maximum Reach: 26 ft 7 in. / 8.1 m
  • Operating Vehicle Weight: 27100 lb / 12292.35 kg
  • Outriggers or Stabilizers: No
  • Outside Turning Radius: 13 ft / 3.96 m
  • Service Brake Type: Wet Multi-Disc
  • Speed – Maximum Lift: 15 sec.
  • Speed – Maximum Lower: 13 sec.
  • Speed – Maximum Telescope In: 14 sec.
  • Speed – Maximum Telescope Out: 17 sec.
  • Speed – Maximum Travel: 19 mph / 30.58 km/h
  • Tire Size: 370/75-28
  • Transmission – Nr Forward Gears Standard: 4
  • Transmission – Nr Reverse Gears: 3
  • Transmission Type: Powershift
  • Wheelbase: 10 ft / 3.04 m
Details

SkyTrak is the number one selling brand in North America for a reason. These machines deliver what you need, when you need it. And they’ve been redesigned to deliver even more comfort and productivity. SkyTrak telehandlers feature improved boom function speeds, a single joystick for greater multifunction capability, an integrated arm rest and optional air conditioning for increased comfort. Tier 4 Final engines are fuel-efficient with less environmental impact. Plus, engine parts and other serviceable components are easily accessible for quicker maintenance. Get ready to settle in for a full day’s work.

Equipment Type
Aerial Equipment / Telehandlers
