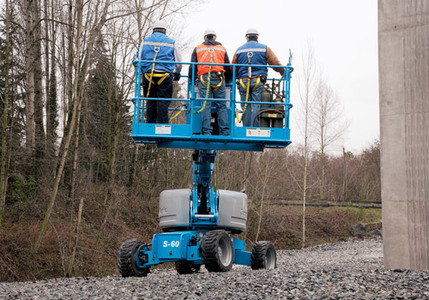

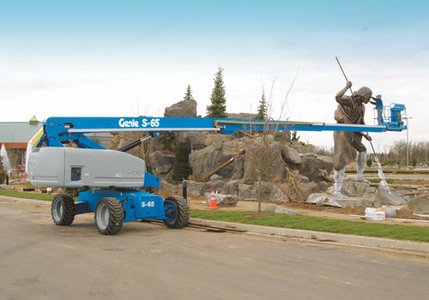

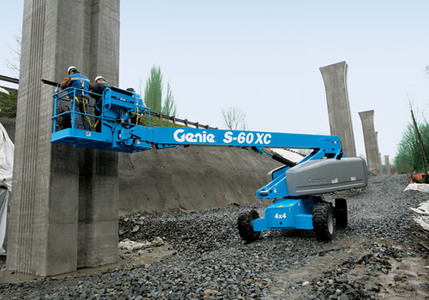

Genie S™-60X & S™-65

  • Active oscillating axle option enhances traction on rough terrain
  • Positive traction drive maintains equal power to all drive wheels
  • Fixed-width axles allow faster setup
  • Fixed-width axles allow faster setup
  • Self-leveling platform with hydraulic platform rotation
  • Ramped boom control system provides smooth boom functions and finer control
  • 360?continuous rotation turntable for quick positioning
  • Virtual pivot primary boom aligns machine’s center of gravity for lower machine weight
  • 360?continuous rotation turntable for quick positioning
  • Dual capacity — select either 500 lbs (227 kg) or up to 1000 lbs (454 kg) within restricted outreach for up to three occupants plus equipment
  • Active oscillating axle option enhances traction on rough terrain
  • Virtual pivot primary boom aligns machine’s center of gravity for lower machine weight
  • Ramped boom control system provides smooth boom functions and finer control
  • Positive traction drive maintains equal power to all drive wheels
  • Horizontal Reach: 56 ft 2 in (17.10 m)
  • Horizontal Reach: 50 ft 10 in (15.48 m)
  • Horizontal Reach: 50 ft 10 in (15.48 m)
  • Horizontal Reach: 56 ft 2 in (17.10 m)
  • Lift Capacity: 500/1000 lbs** (227/454 kg)**
  • Lift Capacity: 500 lbs (227 kg)
  • Lift Capacity: 500 lbs (227 kg)
  • Lift Capacity**: 1000 lbs (454 kg) / 500 lbs (227 kg)
  • Platform Height: 65 ft (19.80 m)
  • Platform Height: 60 ft (18.30 m)
  • Working Height*: 64 ft 4 in (19.78 m)
  • Working Height*: 71 ft (21.80 m)
  • Working Height*: 71 ft (21.80 m)
  • Working Height*: 66 ft (20.30 m)
Details

Telescopic booms offer greater horizontal outreach than any other type of aerial platform — perfect for areas with limited access in construction and industrial applications. Genie® telescopic S™-booms are also designed for productivity with the traction and drive speed you need to get around the job site and to the work area.

  • Ideal for areas with limited access in construction and industrial applications
  • Minimal tailswing for maneuvering in tight spaces
  • Dual-fuel (gas or LPG) options available for indoor/outdoor applications
  • Designed for productivity with the traction and drive speed you need
  • Super Boom models with horizontal outreach among the industry’s best
Equipment Type
Aerial Equipment / Telescopic Boom Lifts
