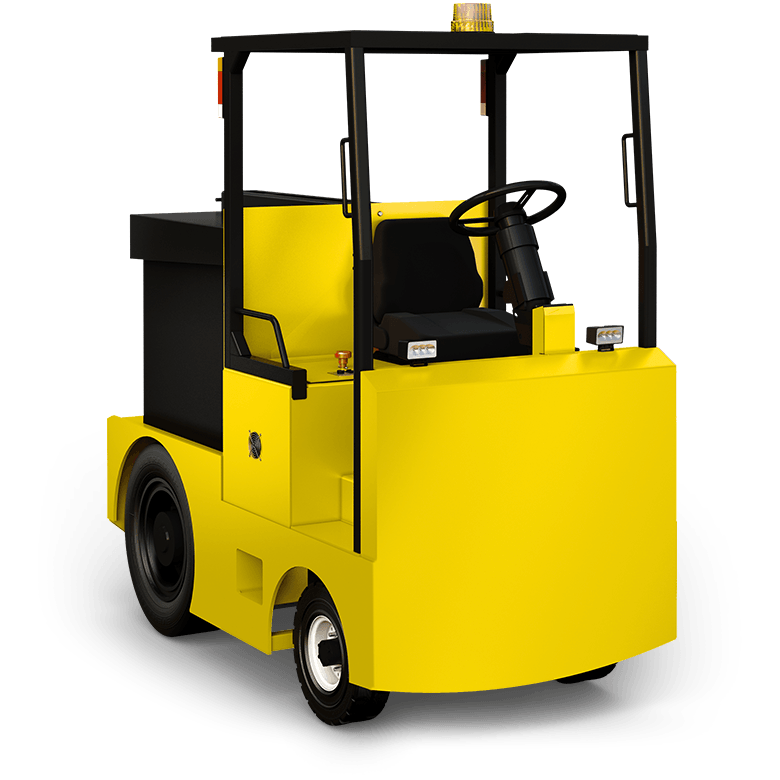

Motrec MT-900 48V
- Code: MT - 900 - 48V
- Passengers: 1
- Loading Capacity: 400
- Towing Capacity: 120000
- Speed MPH: 4
- Speed KPH: 66
- Turning Radius: 99
- Standards: Conforms to requirements for type E, UL 583, ANSI B56.9
- Performance Notes: Towing capacity on flat hard-even surface. Specifications and standard equipment are subject to change without notice
- Drawbar Pull - Normal: 2500
- Accessories: 48V/12V converter, E-Type clevis hitch
- Safety: Deadman seat switch, reverse alarm, horn
- Seats: One Adjustable Grammer Seat
- Steering: Power Steering, Tilt-Telescopic Steering Column
- Suspension: Front and rear rigid axles
- Transmission: Direct drive, helical gears accelerator/brake pedal, inching controls on rear
- Voltage: 48
- Wheels: Solid rubber wheels
- Motor: 2 x 15 hp shunt motors
- Lights: LED dual headlights & tail/brake lights with protective top
- Indicators: Digital battery status indicator
- Battery: No battery included
- Body: All-steel unibody construction
- Brakes: Electric regenerative braking, spring applied parking brake with electric release
- Charger: No charger Included
- Color: Security orange or federal yellow
- Controller: Dual 400A SEPEX controllers
- Drive Axle: Dual planetary wheel drives with manual disengage
- Battery Height: 31.5
- Battery Length: 34
- Battery Width: 42
- Vehicle Height: 90
- Vehicle Length: 92
- Vehicle Width: 45
- Wheel Base: 49
- Weight With Batteries: 11000
- Battery Weight Max: 5000
- Battery Weight Min: 5000
- Weight Without Batteries: 6000
- Loading Capacity: 400
- Wheels: Solid rubber wheels
Details
This powerhouse tows a massive 120,000-lb. load and brakes on a dime. Nothing matches it in the industry. It’s also remarkably maneuverable, thanks to its short turning radius, smooth power steering, and dual planetary wheel drive with parallel controls to prevent spinning and lateral sliding. 2 x 15 hp fan-cooled motors delivers higher output at lower speeds; the oversized industrial batteries and electric regenerative braking ensure safer stopping and longer running times. E-type clevis hitch with inching button.
- Equipment Type
- Industrial Vehicles and Personnel Carriers / Tugs Trams and Trailers
