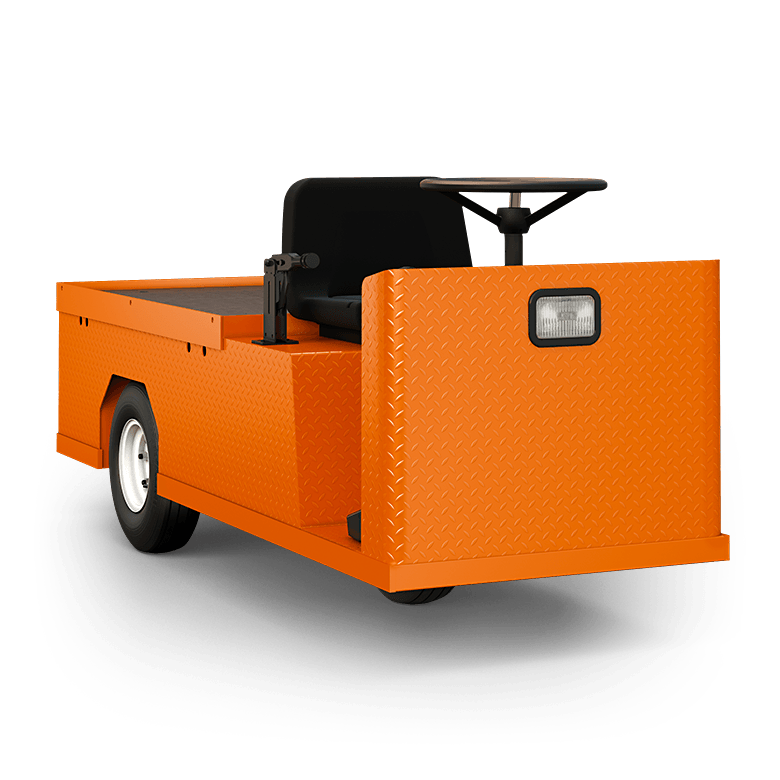

Motrec MC-270 24V

  • Code: MC - 270 - 24V
  • Passengers: 1
  • Loading Capacity: 1000
  • Towing Capacity: 2000
  • Speed MPH: 6
  • Speed KPH: 10
  • Turning Radius: 72
  • Standards: Conforms to requirements for type E, UL 583, ANSI B56.9
  • Performance Notes: Includes passenger weight of 200 lbs. Specifications and standard equipment are subject to change without notice.
  • Accessories: 24V accessory option to equalize cells, extend battery life.
  • Safety: Reverse alarm, deadman seat switch, horn
  • Seats: Bucket seat on slide adjusters
  • Steering: Automotive steering wheel
  • Suspension: Rigid axles on front and rear
  • Transmission: Direct drive
  • Voltage: 24
  • Wheels: 4.8x8 LRB pneumatic tires
  • Motor: 6 hp shunt motor
  • Lights: LED headlight & brake / tail light
  • Indicators: Battery status indicator
  • Battery: Four 6V-225AH batteries
  • Body: 14-G diamond-plate steel body, tubular frame, hefty front cowl (1/4" plate steel)
  • Brakes: Dual self-adjusting mechanical drum brakes on rear, hand lever parking brake, regenerative braking
  • Charger: High-Frequency Charger, improves battery performance, prevents current surge, 50/60HZ, 110/220VAC
  • Color: Security orange or federal yellow
  • Controller: SEPEX Electronic speed controller
  • Drive Axle: Helical gear differential
  • Deck Height: 24
  • Deck Length: 48
  • Deck Width: 30
  • Vehicle Height: 38
  • Vehicle Length: 83
  • Vehicle Width: 30
  • Wheel Base: 33
  • Loading Capacity: 1000
  • Wheels: 4.8x8 LRB pneumatic tires

The MC-270 is the industry’s smallest burden carrier. Its narrow, highly maneuverable design can fit through most standard door openings, and will bring you and materials closer to work stations. This low-profile, multi-purpose vehicle boasts a long deck for more cargo space, 14-G diamond-plate steel body, high-strength tubular frame and hefty 14″ plate steel front cowl. Its low-step entry reduces operator fatigue; its dual self-adjusting drum brakes ensure safe braking performance.

Equipment Type
Industrial Vehicles and Personnel Carriers / Burden and Personnel Carriers
